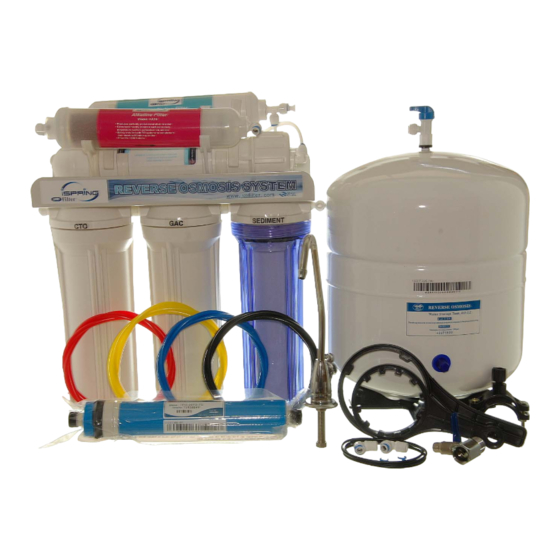

Ispring RCC7AK User Manual

6-stage reverse osmosis system
Hide thumbs Also See for RCC7AK:

Advertisement

Quick Links

Download this manual
iSpring 6-Stage Reverse Osmosis System #RCC7AK
Model Number
Recovery
Temperature
System tested and complied with NSF/ANSI Standard 58 for the reduction of substances.
Arsenic (pentavalent)
TDS (Total Dissolved Solids)
www.123filter.com
RCC7AK
26.76%
40°F - 100°F
Influent Challenge
Concentration
50 ppb
Cysts
Minimum 50,000/mL
Fluoride
8.0 mL ± 25%
Lead
0.15 mL ± 25%
740
| (678) 261-7611
User Manual
Production Rate
283.88 L/d (75 gpd)
Efficiency
15.82%
Pressure
40-80 psi
Maximum Allowable
Concentration
10 ppb
110 #/mL
1.5 mL
0.010 mL
187 mL
sales@ispringfilter.com
Average Percent
Reduction
97.9
>99.99
96.5
98.1
96.7
| Rev 03/14 | p1/10

Advertisement

loading
Need help?

Need help?

Do you have a question about the RCC7AK and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Ispring RCC7AK

Summary of Contents for Ispring RCC7AK

  • Page 1 User Manual iSpring 6-Stage Reverse Osmosis System #RCC7AK Model Number RCC7AK Production Rate 283.88 L/d (75 gpd) Recovery 26.76% Efficiency 15.82% Temperature 40°F - 100°F Pressure 40-80 psi System tested and complied with NSF/ANSI Standard 58 for the reduction of substances.
  • Page 2 Introduction Congratulations on your purchase of the iSpring 6-stage RO system. Featuring a six-stage filtration process, the Reverse Osmosis technology incorporates polypropylene sediment (PP), granular active carbon (GAC), carbon block (CTO) filters and Corosex with calcite to provide crisp-tasting, bottled- quality mineral water straight from your tap.

  • Page 3: Limited Warranty

    Limited Warranty This Limited Warranty extends to the original purchaser of the system only. This warranty covers all Manufacturer- supplied items only that prove to be defective in material, workmanship or factory preparation. This warranty covers parts only; all labor is excluded from this warranty, including, but not limited to, services related to the removal, replacement, installation, adjustment, maintenance and/or repair of the unit or its components items.
  • Page 4 Before you begin, it is highly recommended to watch the video “ispring reverse osmosis installation” on YouTube. System Diagram www.123filter.com | (678) 261-7611 sales@ispringfilter.com | Rev 03/14 | p4/10...
  • Page 5 Parts Index 0. O-ring seated on top of housing 14. To Cold Water Supply Valve 1. 1st stage transparent housing 15. Drain saddle 2. 2nd stage housing 16. Drain saddle sticky pad 3. 3rd stage housing 17. RO faucet front plate 4.
  • Page 6 *note* watch our YouTube video ‘iSpring RO Quick Fitting’ Tips for Drilling a Hole on Sink or Counter-top a.2.1 It’s recommended to watch YouTube video “how to drill a hole in granite countertop”...
  • Page 7 3.2 Get a towel or basket to catch any water drips. Unscrew Cold Water Supply Flex Pipe (CWSFP) from CWSV. Wrap CWSV with Teflon tape and screw on the AFW at the female end with O-ring. Tighten using wrench or pliers. Note, the AFW in iSpring tool kit is 3/8”, which fits most common www.123filter.com | (678) 261-7611 sales@ispringfilter.com...
  • Page 8 flex pipe in US. However, if yours happen to be in different size, this is usually a size of 9/16”, please call us get an adapter from us or Home Depot. 3.3 Reinstall CWSFP on the male end of AFW. Turn the handle of AFW to cross (OFF) position. Turn on CWSV slowly, check and fix any leaks.
  • Page 9 -Step 7: Tubing Hook up 7.1 When facing the Water System with the iSpring logo on the front plate, look for the elbow fitting connecting to the vertical sediment filter located on the right hand side (clear housing). Connect the...
  • Page 10 Send in this Warranty Registration Form to validate your warranty or visit www.iSpringFilter.com to complete warranty registration form online. iSpring Warranty Registration Form Send To: iSpring Water Systems 3020 Trotters Pkwy, Alpharetta, GA 30004 Phone: 1 (678) 261-7611 e-Mail: sales@ispringfilter.com Plumber’s Information (optional)
