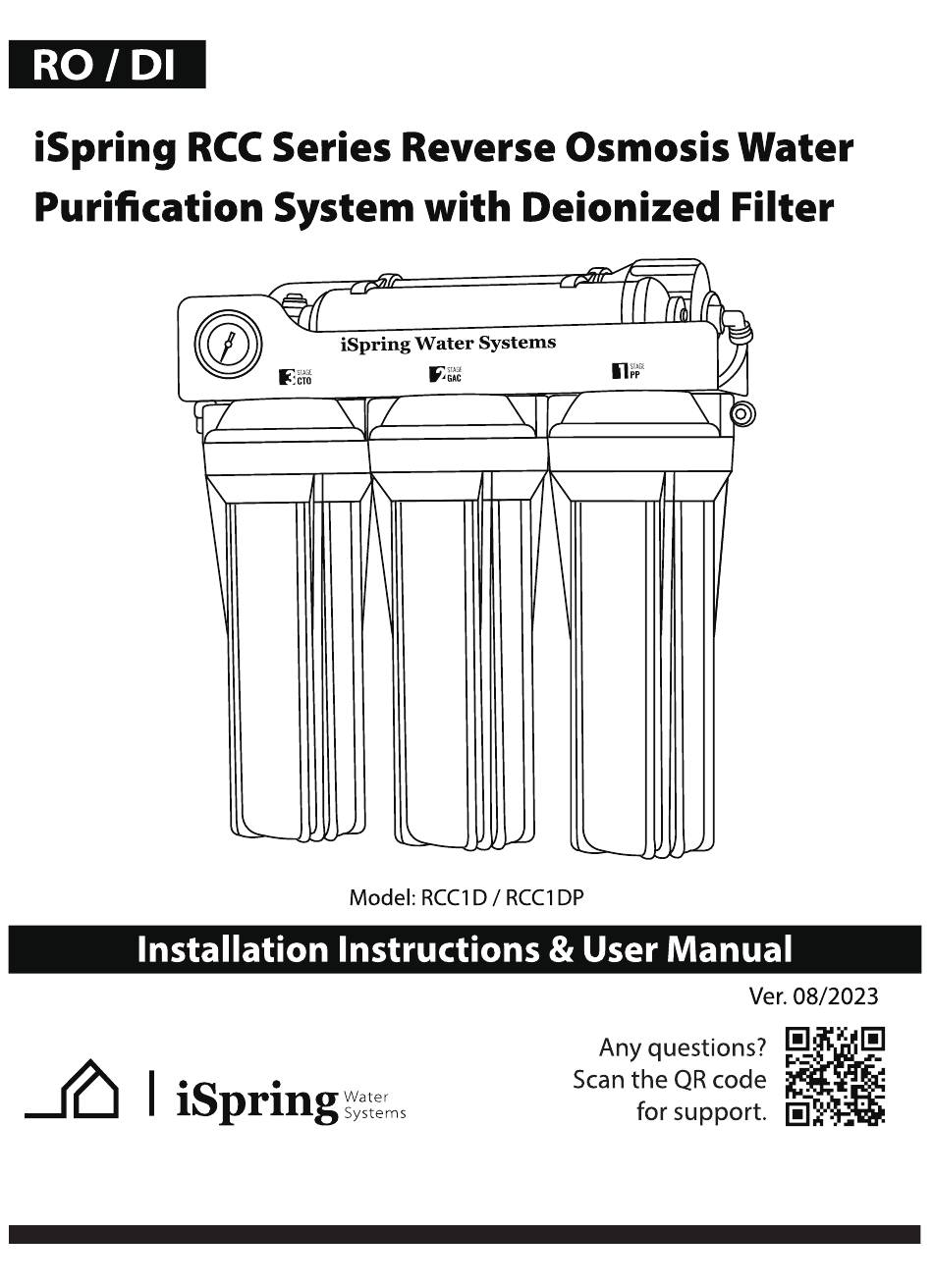

- Page 1 Copyright ©2005-2023 ISPRING WATER SYSTEMS, LLC. All rights reserved.
- Page 2 At iSpring, we strive to develop products to the highest of standards and aim to make excellent drinking water accessible for all households. With affordable pricing, reliable quality, prompt delivery, and top-notch customer service, we hope to assist in bringing you great water for years to come.
-
Page 3: Table Of Contents
Step 7: Mounting the System (Optional) ............11 Step 8: System Start-up ................... 11 System Maintenance ....................12 Troubleshooting Guide ....................13 Glossary and Terms to Know ..................15 Optional Add-on ....................... 16 Warranty iSpring Standard Limited Warranty (End-Users Only) ..........Warranty Registration Form .................. -
Page 4: User Information
In case of malfunction due to damage or failure of the power supply system, unplug the system immediately and contact iSpring customer service for guidance. • If leaking occurs, shut off the inline water supply. Then unplug the system and contact iSpring customer service. •... -
Page 5: Understanding The Booster Pump And Ro Process
2) Water Treatment Process Municipal Tap Water → PP Sediment Filter → GAC Filter → CTO Filter → RO Membrane → Deionize Filter → Purified water 3) Operating Conditions Parameter Specification Maximum Inlet Water Pressure 70 psi Model#RCC1D: 45 psi Minimum Inlet Water Pressure Model#RCC1DP: 30 psi Incoming Water Temperature... -

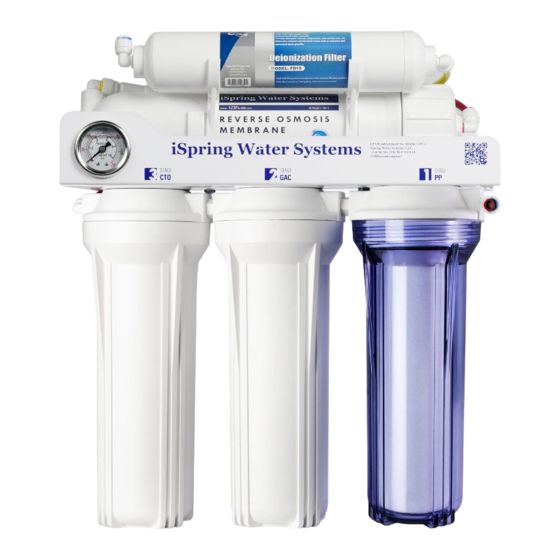

Page 6: Component Identification
*Actual product varies depending on the Model#. Model#RCC1DP comes with a booster pump that is not pictured. Page 5 www.123filter.com | +1 (678) 261-7611 | support@123filter.com... -
Page 7: Installation
Installation Before you start the installation • It is highly recommended that you watch the video "iSpring RCC Series RO System with Deionized Filter DIY Installation | Step by Step" on YouTube. • Choose a suitable location for the system. Again, it must be placed on a flat surface, and make sure this system is to be installed on INDOOR cold-water supply ONLY. -
Page 8: Step 1: Water Inlet - Three Options
It is highly recommended that you watch the video "How to Install a Feed Water Adapter for Reverse Osmosis (RO) and Other Applications | iSpring AFW43" on YouTube. Step 1. a. Turn off the Cold Water Supply Valve (CWSV) under the sink and open the kitchen faucet to release pressure. -
Page 9: Step 2: Install Drain Saddle (Ads1K)
Step 2: Install Drain Saddle (ADS1K) It is highly recommended that you watch the video "How to Install iSpring Drain Saddle (ADS1K) for Reverse Osmosis (RO) System | DIY Installation" on YouTube. Step 2. a. Choose a proper spot anywhere before the P-trap on the drain pipe to install the drain saddle and tubing. -
Page 10: Step 4: Installing The Reverse Osmosis Membrane
Step 4: Installing the Reverse Osmosis Membrane MEMBRANE RO MEMBRANE MEMBRANE OPEN OUTLET O-RING O-RING HOUSING INLET WASTE INLET HOUSING O-RING RO WATER TUBING Step 4. a. Disconnect the tubing from the quick-fitting connection on the membrane cap. Step 4. b. Open the membrane housing cap. A thick rubber band can be slipped on the housing body for better grip. - Page 11 RCC1D Top View RCC1DP Top View Note: The sequence of connection for different colors can be adjusted. tubing: connect source water (Point A) to the 1 Stage water inlet elbow fitting (Point B) BLACK tubing: connect wastewater from the Flow Restrictor (Point C) to the Drain Saddle/drain pipe (Point D) BLUE tubing: pure water outlet connecting from the 5...
-
Page 12: Step 6: Leak Stop Valve (Als1) Installation
Step 6: Leak Stop Valve (ALS1) Installation The Leak Stop Valve is a reusable mechanical leakage protector. Whenever a water leakage is detected, it will shut down the feed water. Step 6. a. Make sure the end of the tubing is cut square before connecting it to the fitting. Step 6. -
Page 13: System Maintenance
System Maintenance All iSpring RO systems are designed with ease of use and low maintenance in mind. If the filter cartridges are changed on schedule as suggested, the system will work properly for years to come. -
Page 14: Troubleshooting Guide
Leak Stop Valve Pads (ALS1P3) Replacement It is highly recommended that you watch the video "Absorb Pad Replacement of iSpring Leak Stop Valve | Easy DIY | Step by Step" on YouTube. Troubleshooting Guide... - Page 15 O-ring. a. Incorrect installation. a. Verify all tubing connections and the direction of filter installation. Contact the iSpring Customer Service Team if the trouble still exists. High TDS in RO b. The RO membrane in not b.
-
Page 16: Glossary And Terms To Know
Auto Flush Solenoid Valve (#ASOF7): Automatically flushes the RO membrane to preserve membrane life and efficiency Booster Pump (#PMP150): 24-volt booster pump used by residential iSpring RO systems Check Valve (#ACV1K): One-way valve that does not allow water back into the membrane housing. -
Page 17: Optional Add-On
Ice Maker Connection Kit (Model# ICEK) The iSpring ICEK can be purchased separately to feed RO water to your refrigerator for crystal-clear ice cubes. It can be easily installed to connect the RO system to your fridge's ice maker or water dispenser. - Page 18 on incoming water quality.
- Page 19 __________________ __________________ __________________ __________________ ______________________________________________ ____________ ______________ _________________ ___________________________________________ ______ _________________ ___________________________________...
