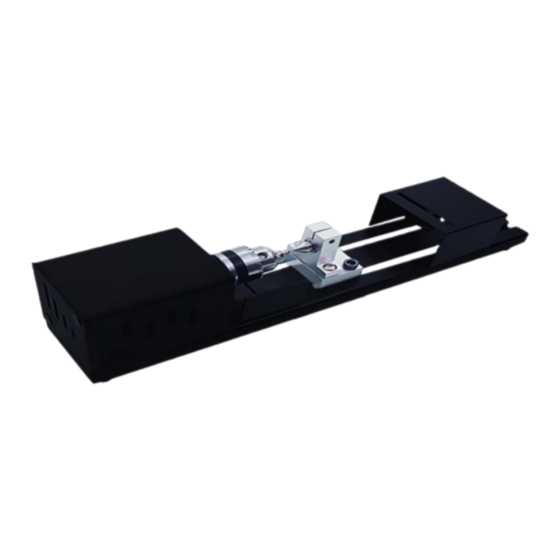

WOOD LATHE
INSTRUCTION MANUAL
MODEL: HS001
We continue to be committed to provide you tools with competitive price.
"Save Half", "Half Price" or any other similar expressions used by us only represents an
estimate of savings you might benefit from buying certain tools with us compared to the major
top brands and doses not necessarily mean to cover all categories of tools offered by us. You
are kindly reminded to verify carefully when you are placing an order with us if you are
actually saving half in comparison with the top major brands.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the HS001 and is the answer not in the manual?

Questions and answers

Related Manuals for VEVOR HS001

Summary of Contents for VEVOR HS001

  • Page 1 Technical Support and E-Warranty Certificate www.vevor.com/support WOOD LATHE INSTRUCTION MANUAL MODEL: HS001 We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only represents an estimate of savings you might benefit from buying certain tools with us compared to the major top brands and doses not necessarily mean to cover all categories of tools offered by us.
  • Page 2 CustomerService@vevor.com This is the original instruction, please read all manual instructions carefully before operating. VEVOR reserves a clear interpretation of our user manual. The appearance of the product shall be subject to the product you received. Please forgive us that we won't inform you again if there are any technology or software updates on our product.

  • Page 3: Matters Needing Attention

    MATTERS NEEDING ATTENTION The information contained in this handbook is intended as a guide to the operation of these machines and does not form part of any contract.The data it contains has been obtained from the machine manufacturer and from other sources. We strive to ensure the accuracy of this information and try to verify each item and each data, but we cannot guarantee the full accuracy of the information, which means that the equipment supply may differ in detail from the description of the instructions.

  • Page 4: Safety Warning

    Our company reserves the right to make changes to this specification and product specifications. We will make continuous efforts to improve the quality of our products. All rights reserved. Reproduction or reproduction is not allowed without permission. SAFETY WARNING Symbol Symbol Description Warning - To reduce the risk of injury, user must read instructions manual carefully.
  • Page 5 Warning- Be sure to wear dust masks when using this product. Warning- Be sure to wear dust masks when using this product. This product is of protection class III. FCC statement: This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:(1)This device may not cause harmful interference, and (2)this device must accept any interference received, including interference that may cause undesired operation.
  • Page 6 WARNING: Read all safety warnings, instructions, illustrations and specifications provided with this machine. Failure to follow all instructions listed below may result in electric shock, fire and/or serious injury. Save all warnings and instructions for future reference. 1.The machine tool should be used by experienced personnel. If you are not familiar with the operation process of the lathe, do not use the machine tool at will.
  • Page 7 15. Dress appropriately. Don't wear loose clothing, gloves, ties, rings, bracelets, jewelry, etc. To be on the safe side, For the sake of safety， wearing non-slip shoes. If you have long hair, please wear a work hat. 16. Wear protective glasses when operating. 17.

  • Page 8: Technical Parameter

    TECHNICAL PARAMETER Type number HS001 Capacities 70mm Swing over Bed 160mm Distance Between Centers 60mm Width of Bed Number of Spindle Speeds Variable Rating(s): 110V~60Hz/220-240V~50Hz ， Range of Spindle Speeds 4200-8500RPM Miscellaneous Main Motor DC24V，96W Length, Width and Height 350*60*80mm Product Weight N.W.：1.43Kg...
  • Page 9 Name UNIT Adapter Power cord Woodworking lathe Allen wrench 2.5/5mm Ball fixing pin 1.5/2.0/2.5 mm Threaded fixing pin Drill bit chuck wrench High speed steel carving knife Wood handle carving knife Diamond Blade Connection Connector High-speed steel blade connection connector 50mm diamond cutting blade 50mm HSS cutting piece Sandpaper adhesive tray...

  • Page 10: Unpacking And Cleaning

    UNPACKING AND CLEANING 1. Remove the woodworking lathe from the box 2. Check all the accessories of the machine tool according to the packing list. 3. Choose a location for the lathe that is dray, has good lighting and has enough room to be able to service the lathe on all four sides.
  • Page 11 General Description Precision drill chuck (Fig. 2) The clamping range is 0.6-6mm, with excellent quality, precision and durability.Beautiful and cheap, equipped with a special drill chuck wrench (Fig. 2) Double bearing high precision tailstock (Fig. 3) Select the top tailstock of high-quality pure steel structure, strong and durable, double bearing High precision Fig.
  • Page 12 High quality ship type switch (Fig. 4) High quality ship type switch, simple and easy to operate, high quality, simple and easyoperation Fig.4 Turning(Fig. 5) Flexible control, cutting all kinds of wood, Buddha beads, Bodhi and other materials Fig. 5 - 11 -...
  • Page 13 Cutting (Fig. 6) Change the tool rest lathe, change the table saw, cooperate with the saw blade. Cut all kinds of materials easilv Fig.6 Polish (Fig. 7) Replace the sandpapertray, lathe sanding tray machine, and polish the diamond edee angle and plane Fig.7 - 12 -...
  • Page 14 Failure to comply may cause serious injury and damage to the machinery and property! The HS001 WOOD LATHE is rated at 220V, 50Hz/110V,60Hz, 96W . Confirm power available at the lathe' s location is the same rating as the lathe. Make sure the lathe is properly grounded.

  • Page 15: Maintenance

    MAINTENANCE Keep the maintenance of the machine tool during the operation to guarantee the accuracy and service life of the machine tool. 1. In order to retain the machine's precision and functionality. it is essential to treat it with care. Keep it clean and grease and lubricate it regularly. Only through good care.
