MICRO WOOD LATHE INSTRUCTION
MANUAL
MODEL: WL1018
We continue to be committed to provide you tools with competitive price.
"Save Half", "Half Price" or any other similar expressions used by us only represents an
estimate of savings you might benefit from buying certain tools with us compared to the major
top brands and doses not necessarily mean to cover all categories of tools offered by us. You
are kindly reminded to verify carefully when you are placing an order with us if you are
actually saving half in comparison with the top major brands.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the WL1018 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for VEVOR WL1018

Summary of Contents for VEVOR WL1018

  • Page 1 Technical Support and E-Warranty Certificate www.vevor.com/support MICRO WOOD LATHE INSTRUCTION MANUAL MODEL: WL1018 We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only represents an estimate of savings you might benefit from buying certain tools with us compared to the major top brands and doses not necessarily mean to cover all categories of tools offered by us.
  • Page 2 CustomerService@vevor.com This is the original instruction, please read all manual instructions carefully before operating. VEVOR reserves a clear interpretation of our user manual. The appearance of the product shall be subject to the product you received. Please forgive us that we won't inform you again if there are any technology or software updates on our product.

  • Page 3: Matters Needing Attention

    MATTERS NEEDING ATTENTION The information contained in this handbook is intended as a guide to the operation of these machines and does not form part of any contract.The data it contains has been obtained from the machine manufacturer and from other sources. We strive to ensure the accuracy of this information and try to verify each item and each data, but we cannot guarantee the full accuracy of the information, which means that the equipment supply may differ in detail from the description of the instructions.

  • Page 4: Safety Warning

    Our company reserves the right to make changes to this specification and product specifications. We will make continuous efforts to improve the quality of our products. All rights reserved. Reproduction or reproduction is not allowed without permission. SAFETY WARNING Symbol Symbol Description Warning - To reduce the risk of injury, user must read instructions manual carefully.
  • Page 5 This product is of protection class III. FCC statement: This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:(1)This device may not cause harmful interference, and (2)this device must accept any interference received, including interference that may cause undesired operation.
  • Page 6 Keep the tool sharp and clean to ensure normal and safe operation. Lubricate and replace accessories regularly. Before adjusting or repairing the machine, be sure to disconnect the power supply. Please check the safety performance of the machine before starting it. 10.

  • Page 7: Technical Parameter

    TECHNICAL PARAMETER Rating 220-240V~, 50Hz, 370W 110V~, 60Hz, 370W Distance Between 18" Centers Turning diameter 10" Motor 370W Output Speed 680-3200RPM 780-3800RPM Face Plate Diameter 80mm Product Dimensions 950*270*365mm Weight N.W.: 31.2Kg G.W.: 33.45Kg Package Size 830*425*300mm The general information given in this specification is not binding. - 6 -...

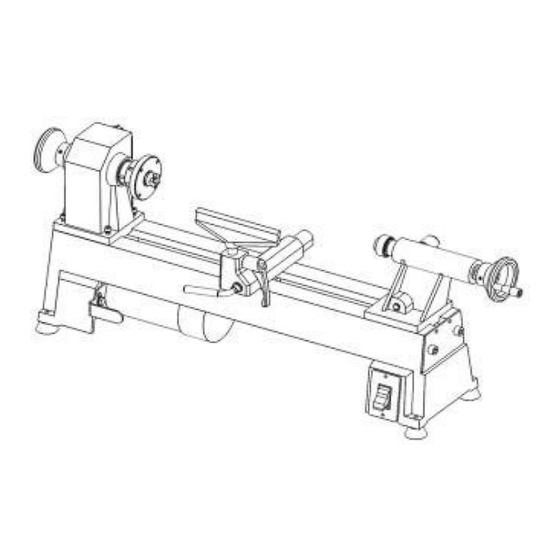

  • Page 8 Know Your Wood Lathe: PART NO. DESCRIPTION Motor Lock lever Head stock Tool rest Tail stock Plate Switch box Switch Power cord - 7 -...
  • Page 9 Standard accessories PART NO. DESCRIPTION Rod injection Face plate Living center Spur center Rubber washer Hex wrench S3 Wrench Fork wrench 10-13 - 8 -...

  • Page 10: Unpacking And Cleaning

    UNPACKING AND CLEANING 1. Remove the woodworking lathe from the box 2. Check all the accessories of the machine tool according to the packing list. 3. Choose a location for the lathe that is dray, has good lighting and has enough room to be able to service the lathe on all four sides.

  • Page 11: Operation

    OPERATION Before cutting the square wood, first find out the center of the square wood, and then set the wood at the center of the wood. When cutting hard wood, use a wooden hammer to knock the block to the top, not using a hammer, to prevent damage to the wood. Be sure to be safe when cutting square wood.
  • Page 12 The height of the knife frame is 3mm higher than the center line of the main shaft and the tail seat. The height of the knife frame varies with the diameter of the cutting wood. Generally speaking, the larger the diameter of the wood, the higher the height of the knife, the smaller the diameter of the wood and the lower the height of the knife frame.
  • Page 13 11. When adjusting the position of the knife holder, the power has to be turned off first, and when the operator leaves the machine. 12. When cutting wood, when the top of the spindle is found loose, you should immediately turn off the power, readjust the tail seat hand wheel, tighten the wood, and then start working.
  • Page 14 Electricity WARNING! Connection of the lathe and all other electrical work may only be carried out by an authorized electrician! Failure to comply may cause serious injury and damage to the machinery and property! In the event of a malfunction or breakdown, grounding provides the path of least resistance for electric current to reduce the risk of electric shock.
  • Page 15 QUESTIONISPROPERLY GROUNDED.IF YOU ARENOT SURE,HAVE A CERTIFIED ELECTRICIAN CHECK THE RECEPTACLE. The WL1018 WOOD LATHE is rated at 220-240V~, 50Hz, 370W/110V~, 60Hz, 370W. Confirm power available at the lathe' s location is the same rating as the lathe. Make sure the lathe is properly grounded.

  • Page 16: Maintenance

    MAINTENANCE Keep the maintenance of the machine tool during the operation to guarantee the accuracy and service life of the machine tool. 1. In order to retain the machine's precision and functionality. it is essential to treat it with care. Keep it clean and grease and lubricate it regularly. Only through good care.
  • Page 17 EBREAKDOWN DIAGRAM AND PARTS LIST - 16 -...
  • Page 18 PART NO. DESCRIPTION Semicircle head screw Retaining plate Handwheel Tailstock Lock lever Eccentric axis Tail axis Taper rod Bearing ball Cup center Headstock spur center Faceplate Headstock spindle Bearing ball Ring retaining Ring retaining Bearing ball Headstock Back lid Screw Balance wheel Side plate Hex.
  • Page 19 PART NO. DESCRIPTION Lock lever Ring retaining 12 Tool rest (150mm,300mm) Tool rest base Bolt Lock plate Hex. nut Lock handle for knife base Lock lever Bolt Lock plate Hex. nut Power cord Plate 46-1 Washer 46-2 Screw Switch Washer Spring washer Rubber washer Switch box...
