Technical Support and E-Warranty Certificate www.vevor.com/support

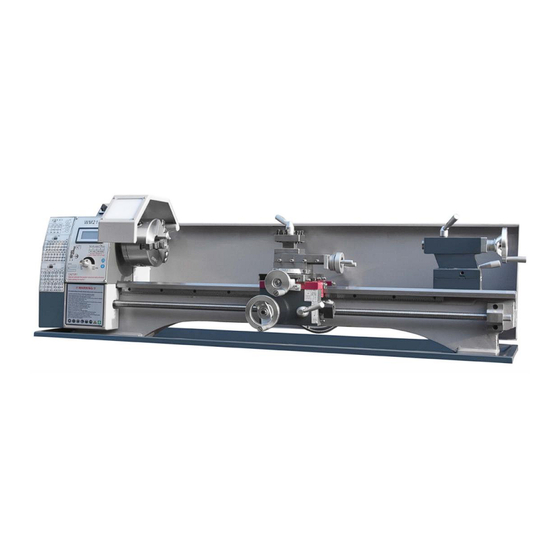

LATHE INSTRUCTION MANUAL
MODEL:WM210V-L
We continue to be committed to provide you tools with competitive price.
"Save Half", "Half Price" or any other similar expressions used by us only represents an
estimate of savings you might benefit from buying certain tools with us compared to the major
top brands and doses not necessarily mean to cover all categories of tools offered by us. You
are kindly reminded to verify carefully when you are placing an order with us if you are
actually saving half in comparison with the top major brands.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the WM210V-L and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for VEVOR WM210V-L

Summary of Contents for VEVOR WM210V-L

  • Page 1 Technical Support and E-Warranty Certificate www.vevor.com/support LATHE INSTRUCTION MANUAL MODEL:WM210V-L We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only represents an estimate of savings you might benefit from buying certain tools with us compared to the major top brands and doses not necessarily mean to cover all categories of tools offered by us.
  • Page 3 CustomerService@vevor.com This is the original instruction, please read all manual instructions carefully before operating. VEVOR reserves a clear interpretation of our user manual. The appearance of the product shall be subject to the product you received. Please forgive us that we won't inform you again if there are any technology or software updates on our product.

  • Page 4: Matters Needing Attention

    MATTERS NEEDING ATTENTION The information contained in this handbook is intended as a guide to the operation of these machines and does not form part of any contract.The data it contains has been obtained from the machine manufacturer and from other sources. We strive to ensure the accuracy of this information and try to verify each item and each data, but we cannot guarantee the full accuracy of the information, which means that the equipment supply may differ in detail from the description of the instructions.

  • Page 5: Safety Warning

    Our company reserves the right to make changes to this specification and product specifications. We will make continuous efforts to improve the quality of our products. All rights reserved. Reproduction or reproduction is not allowed without permission. SAFETY WARNING Symbol Symbol Description Warning - To reduce the risk of injury, user must read instructions manual carefully.

  • Page 6: Save All Warnings And Instructions For Future Reference

    Do not put your hands into safety guard when machine is working No entry automatic machinery in operation Authorized personnel only Do not fill oil during operation Do not turn during repair No fatigue operation The operation is no phone calls Disposal information: This product is subject to the provision of European Directive 2012/19/EC.
  • Page 7 machine tool at will. Use the instructions before operating. 2.Before starting the machine tool, the safety cover should be in the correct position. 3.Before starting the machine tool, please check whether the tool rest wrench and chuck key are removed. 4.Prevent the machine from starting accidentally.
  • Page 8 19. Do not perform any setting operations while the machine is running. 20. Read and understand all warning signs posted on the machine. 21. This manual is intended only to familiarize customers with the operation of the machine and is not a training manual. 22.

  • Page 9: Technical Parameter

    TECHNICAL PARAMETER Type number WM210V-L Capacities 210mm Swing over Bed 110mm Swing over Cross Side 735mm Distance Between Centers 100mm Width of Bed Headstock Hole Through Spindle 38mm Taper in Spindle Nose Number of Spindle Speeds Variable 50-2500RPM Range of Spindle Speeds...
  • Page 10 Standard accessories 1. Oil Pan 2. Rear Chip Plate 3. Three Jaw Chuck 4. Specification 5. Tool Box Accessories in the tool box (Fig. 1 ) Fig. 1 Dead Center MT5 Dead Center MT2 Tool Post Wrench Oil Gun Cross Screwdriver Fiat Screwdriver Three Jaw Chuck Hex Socket Wrenches...

  • Page 11: Unpacking And Cleaning

    UNPACKING AND CLEANING 1. Finish removing the wooden crate from around the lathe 2. Check all the accessories of the machine tool according to the packing list. 3. Unbolt the lathe from the shipping crate bottom. 4. Choose a location for the lathe that is dray, has good lighting and has enough room to be able to service the lathe on all four sides.
  • Page 12 General Description Lathe Bed (Fig. 3) The lathe bed is made of high-grade iron. By combining high cheeks with strong cross ribs, a bed of low vibration and rigidity is produced. It integrates the Headstock and drives the unit, for attaching the carriage and lead screw.
  • Page 13 Carriage (Fig. 5) The carriage is made from high-quality cast iron. The slide parts are smoothly ground.They fit the V on the bed without play. The lower sliding parts can be easily and simply adjusted.The cross slide is mounted on the carriage and moves on a dove-tailed slide.Play in the cross slide may be adjusted with the gibs.
  • Page 14 Apron (Fig. 6) The apron is mounted on the bed. It houses the half nut with an engaging lever for activating the automatic feed. The half nut gibs can be adjusted from the outside. A rack, mounted on the bed, and a pinion operated by Handwheel on the carriage allows for quick travel of the apron.

  • Page 15: Operating Equipment

    tail stock (Fig. 8) The tail stock slides on a V way and can be clamped at any location. The tail stock has a heavy-duty spindle with a Morse taper No. 2 socket and a graduated scale. The spindle can be clamped at any location with a clamping lever.

  • Page 16: Carriage Lock

    position for clockwise spindle rotation(reverse) ."O"position is OFF and the spindle remains idle. 3. Variable Speed Control Switch (F,Fig. 9) Turn the switch clockwise to increase the spindle speed. Turn the switch counter-clockwise to decrease the spindle speed. The possible speed range is dependent from the position of the drive belt.
  • Page 17 5﹒Longitudinal Traverse Hand wheel (B,Fig.11) Rotate hand wheel clockwise to move the apron assembly toward the tail stock (right). Rotate the hand wheel counter-clockwise to move the apron assembly to ward the Headstock(left). 6﹒Cross Traverse Lever (C,Fig. 11) Clockwise rotation moves the cross slide toward the rear of the machine. 7﹒Half Nut Engage Lever (D,Fig.
  • Page 18 10﹒Tail stock Clamping screw (G,Fig. 12) Turn hex nut clockwise to lock and counter-clockwise to unlock. 11﹒Tail stock Quill Clamping Lever (H,Fig. 12) Rotate the lever clockwise to lock the spindle and counter-clockwise to unlock it. 12﹒Tail stock Quill Traverse Hand wheel (I,Fig. 12) Rotate clockwise to advance the quill.

  • Page 19: Operation

    OPERATION Replacement of Chuck The head spindle holding fixture is cylindrical. Loose three set screws and nuts (A, Fig. 13 only two are shown)on the la the chuck flange to remove the chuck. Position the new chuck and fix it using the same set screws and nuts.
  • Page 20 Fig. 14 Change Speed 1. Unscrew the two fastening screws (B, Fig.15) and remove the protective cover. 2. Adjust the V-belt(C,Fig.16)corresponding position. 3. Tighten the tension pulley and fasten the nut again. Fig. 15 Fig. 16 - 18 -...

  • Page 21: Manual Turning

    Manual Turning Apron travel, cross travel, and top slide hand wheel can be operated for longitudinal or cross feeding. (Fig.17) Fig. 17 Longitudinal Turning with Auto.Feed Use the table (A, Fig.18) on the lathe for selecting the feed speed or the thread pitch.
  • Page 22 Change Gears Replacement 1. Disconnect the machine from the power source. 2. Unscrew the two fastening screws and remove the protective cover. 3. Loosen the locking screw (B, Fig.19) on the quadrant. 4. Swing the quadrant (C, Fig. 19) to the right. 5.
  • Page 23 Pitch plate(Fig. 20) THREADING AND FEEDING TABLE Fig. 20 - 21 -...
  • Page 24 Cylindrical Turning (Fig. 21) In the straight turning operation, the tool feeds parallel to the axis of rotation of the workpiece. The feed can be either manual by turning the hand wheel on the lathe saddle or the top slide, or by activating the automatic feed.
  • Page 25 Turning: Slender shaft ( Fig. 23 ) For turning between centers, it is necessary to remove the chuck from the spindle. Fit the M. T. 3 center into the spindle nose and the M.T. 2 center into the tail stock. Mount the workpiece fitted with the driver dog between the centers.

  • Page 26: Thread Cutting

    After taper turning, the tailstock should be returned to its original position according to the zero position on the scale of tail stock. (E, Fig.24) Thread Cutting Set the machine up to the desired thread pitch (according to the threading chart, Fig.20).
  • Page 27 an undercut at the thread run out. The speed must be as low as possible. The change gears must have  been installed according to the required pitch. The thread cutting tool must be exactly the sample shape as the ...

  • Page 28: Lathe Accessories

    Lathe Accessories Three Jaw Universal Lathe Chuck Using this universal chuck round triangular square hexagonal octagonal and twelve,cornered stock may be clamped. (Fig.26) Note: new lathes have very tight fitting jaws. This is necessary to ensure accurate clamping and long service life- with repeated opening and closing the jaw adjusts automatically and their operation becomes progressively Smoother.
  • Page 29 take them out in descending order 3,1,0 one by one- After you finish this procedure rotate the jaws to the smallest diameter and check that the three jaws are well-fitted. Four Jaw 1ndependent Lathe Chuck This special chuck has four independently adjustable chuck jaws- These permit the holding of asymmetrical pieces and enable the accurate set,up of cylindrical pieces.

  • Page 30: Live Center (Optional)

    Live Center (optional) The live center is mounted in ball bearings- Its use is highly recommended for turning at speeds in excess of 6.RPM. ( Fig.29) Steady Rest The steady rest serves as a support for shafts on the free tail stock end. For many operations the tail stock can not be used as it obstructs the turning tool or drilling tool, and therefore, must be removed from the machine.

  • Page 31: Follow Rest

    Setting the Steady Rest 1. Loosen three hex nuts. (A, Fig.31) 2. Loosen knurled screw (B, Fig.36) and open the sliding fingers. (C, Fig.31) until the steady rest can be moved with its finger around the workpiece. Secure the steady rest in position. 3 .
  • Page 32 ADJUSTMENTS After a period of time, wear in some of the moving components may need to be adjusted. Main spindle Bearings The main spindle bearings are adjusted at the factory. 1f end play becomes evident after considerable use, the bearings may be adjusted. Fasten the slotted nut (A, Fig.32) on the back of the spindle, loosen the outer slotted nut (B, Fig.32).
  • Page 33 Adjustment of Cross slide The cross slide is fitted with a gib strip(C, Fig.33) and can be adjusted with screws (D, Fig.33) fitted with lock nuts. (E, Fig.33) Loosen the lock nuts and tighten the set screws until slide moves freely without play. Tighten lock nuts to retain adjustment.
  • Page 34 Adjustment of HaIf Nut Guide The half nuts engagement can be adjusted with screws (I, Fig.35) fitted with lock nuts (J, Fig.35). Loosen the nuts on the right side of the apron and adjust the control screws until both half nuts move freely without play. Tighten the nut.

  • Page 35: Cross Slide

    LUBRICATION NOTES: Lubricate all slideways lightly before every use. Lubricate the change gears and the lead screw slightly with grease. 1. Carriage Lubricate Four oil ports (A, Fig. 36) with 20W machine oil once daily. 2. Cross Slide Lubricate two oil ports (B , Fig. 36 ) with 20W machine oil once daily. - 33 -...
  • Page 36 3. Lead screw Lubricate the left oil port ( C Fig. 37) and right oil port (D, Fig.38) with 20W machine oil once daily. Fig. 37 Fig. 38 Electricity WARNING! Connection of the lathe and all other electrical work may only be carried out by an authorized electrician! Failure to comply may cause serious injury and damage to the machinery and property!

  • Page 37: Maintenance

    The following is wiring diagram of the lathe: (Fig.39) Fig. 39 MAINTENANCE Keep the maintenance of the machine tool during the operation to guarantee the accuracy and service life of the machine tool. 1. In order to retain the machine's precision and functionality. it is essential to treat it with care.
  • Page 38 inflammable. Collect cleaning rags or cleaning wool in a suitable closed vessel and dispose of them in an environmentally sound way - do not put them with normal refuse! 2. Lubrication all slide ways lightly before every use. The change gears and the lead screw must also be lightly lubricated with grease.

  • Page 39: Troubleshooting

    TROUBLE SHOOTING Problem Possible Reason Elimination Tool blunt Re.sharpen tool Clamp tool Surface of work Tool springs with less overhang piece too rough Feed too high Reduce feed Radius at the tool tip too small Increase radius Centers are not aligned (tail stock has Adjust tail stock to the center offset) workpiece...
  • Page 40 wrong Wrong pitch Adjust the right pitch Turn the work piece to Wrong diameter the correct diameter Spindle does Unlock emergency stop Emergency stop switch activated not activate switch - 38 -...
  • Page 41 BREAKDOWN DIAGRAM AND PARTS LIST Headstock Assembly - 39 -...
  • Page 42 Parts Description specification Parts Description specification Qty φ 22xl Screw M5x25 Spring Ring Washer Cover DC Motor 83ZY005A Screw M8x25 Motor Puller Washer A4x4x20 Screw M6x8 Washer Belt Gates-5M- 360 Screw Bracket Plate Belt Cover Washer Screw M8x20 Bolt Ml0x80 Block Screw M6x30...
  • Page 43 BREAKDOWN DIAGRAM AND PARTS LIST Top slide, Cross slide, Carriage Assembly - 41 -...
  • Page 44 Parts Description Specification Parts Description Specification Qty Handle Screw M4x8 Handle Base Screw M5x10 Washer Bush Ф5 Bolt oil Cup Screw M6x25 Screw M4x20 Spring 5x10x1 Screw Longitudinal Slid Wiper Cover Wiper Screw M4x14 Screw Top Rest Sliding Block Screw M5x30 Screw M4x10...

  • Page 45: Apron Assembly

    Apron Assembly - 43 -...
  • Page 46 Parts Description Specification Parts Description Specification Qty Screw M8x8 Half Nut 4x10 Hand wheel Screw M4x10 Spring Block Screw M5x10 Screw M6x8 Collar Spring 0.6x 3.5x12 Bracket Ball Screw M8x25 Screw M4x12 Screw M5x8 Apron Shaft 31 1 A3x3x8 3x30 Gear Shaft Hand Base Shaft...
  • Page 47 Bed, hanging wheel parts Abssemaly - 45 -...
  • Page 48 Parts Description Specification Parts Description Specification Qty Spring Ring Gear Rack Gear Screw M2x12 Bush Bearing 51100 BoIt Right Support Gear Screw M8x6 Gear Cover Screw M4x12 Washer Gear Bush Gear Frame Gear Screw M6x35 Gear Bush Gear Left Support Gear Screw M6x14...

  • Page 49: Tail Stock Assembly

    tail stock Assembly Parts Description Specification Parts Description Specification Qty Handle Handle Base Screw M8x6 Lock Base Handle Screw Sleeve Handle Sleeve tail stock Screw M5x12 Lead Screw Adjustment Block A3x3x8 Screw M6x12 Base Screw M6x14 Spring Bearing 51100 Clamping Plate Housing Bolt M10x70...
  • Page 50 Importer: WAITCHX Address: 250 bis boulevard Saint-Germain 75007 Paris Importer: FREE MOOD LTD Address: 2 Holywell Lane, London, England, EC2A 3ET Manufacturer: Anhui Chizhou Weiss E&M Co. , Ltd. Address：8#, Jintong Road, Chizhou Economic and Technological Development Zone, Chizhou City, Anhui, P,R.China Made In China EUREP UK LTD UNIT 2264, 100 OCK STREET, ABINGDON...
  • Page 51 - 49 -...
  • Page 52 Technical Support and E-Warranty Certificate www.vevor.com/support...
