- Page 1 Savaria OWNER’S MANUAL To Be Retained by Owner After Installation by Authorized Savaria Dealer Part No. 001 Rev. 00...
- Page 2 IMPORTANT Be sure to read this entire manual before using the Savaria Track Bridge. The information in this manual is important for the safety of the person being transferred and the operator, and for the proper use and maintenance of the device.
- Page 3 Australian Sponsor: KD&A PTY LTD 286 Flinders St, Adelaide South Australia, 5000 Copyright 2023 Savaria Concord Lifts, Inc. All rights reserved. Part No. 001300-EN, 10-m10-2023 Track Bridge /Track Bridge Bariatric Owner’s Manual...
- Page 4 All note messages include the signal word NOTE in capitalized white lettering on a blue background. Track Bridge /Track Bridge Bariatric Owner’s Manual Part No. 001300-EN, 10-m10-2023...
-
Page 5: Table Of Contents
Using the Track Bridge ........ -
Page 6: Overview
Intended Use The Track Bridge is designed for use by caregivers and health care professionals to connect a mobile X-Y rail to a fixed rail together, thus allowing the ceiling lift to move freely between both track routes in a homecare, assisted-living or hospital environment. -
Page 7: Using This Manual
Savaria Dealer for further details. Keep this manual with the device and ensure all operators are fully trained in the use of the device as described in this manual. Part No. 001300-EN, 10-m10-2023 Track Bridge /Track Bridge Bariatric Owner’s Manual... -
Page 8: Safety Instrucions
To Ensure Safety • The Track Bridge has a safe working load of 272 kg (600 lb). The Track Bridge Bariatric has a safe working load of 544kg (1200 lb). If the maximum load differs between the track bridge, the ceiling lift or a ceiling lift accessory, then the lowest maximum load shall always be used. -
Page 9: Battery And Charger Safety
Do NOT use the charger in the presence of any flammable anaesthetic gases. • Do NOT short circuit the battery terminals. • Do NOT incinerate the battery. • Do NOT puncture the battery or try to open/dismantle the battery Part No. 001300-EN, 10-m10-2023 Track Bridge /Track Bridge Bariatric Owner’s Manual... -
Page 10: Electric Shock Prevention
• Do NOT attempt any repairs to the device, battery or charger. Always contact your Authorized Savaria Dealer for service. Track Bridge /Track Bridge Bariatric Owner’s Manual Part No. 001300-EN, 10-m10-2023... -

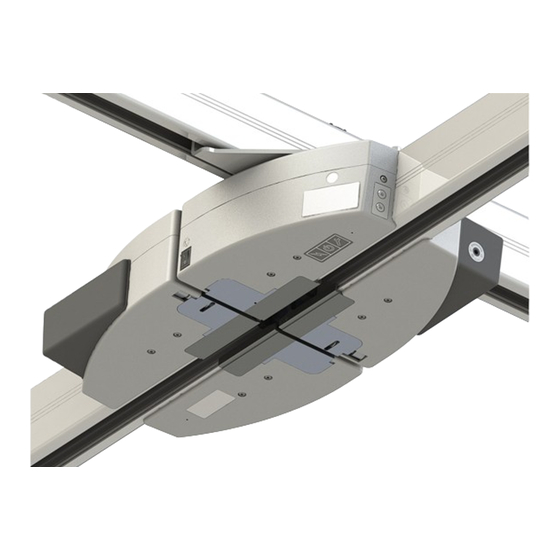

Page 11: Description
Figure 1 On/Off Switch Note that the track bridge will only work with devices equipped with a magnetic block as shown in the following figure. For magnetic block installation, refer to the Track Installation section in the Track Installation Guide (001076). - Page 12 Magnetic block installed on portable trolley when used with portable ceiling lift. Magnetic block installed on fixed ceiling lift. Magnetic block installed on bariatric ceiling lift. Track Bridge /Track Bridge Bariatric Owner’s Manual Part No. 001300-EN, 10-m10-2023...
-
Page 13: Device Controls
Power Light - Red Device malfunction (incomplete lock/unlock (Solid) action, jammed, time-out, etc.). Maintenance Light - Device is ready for use. Maintenance Light - Inspection required. Call Authorized Savaria Amber (Solid) Dealer. Part No. 001300-EN, 10-m10-2023 Track Bridge /Track Bridge Bariatric Owner’s Manual... -
Page 14: Charger (M920001)
The track bridge is connected to the constant charging system (CCR system) in the track. The battery charger is external to the track system and it is intended to stay connected to the CCR at all times. The track bridge manages the battery charging automatically as needed. -
Page 15: Symbols
Indicates the manufacturer's catalogue number Indicates the manufacturer's serial number Indicates a medical device that needs to be protected from moisture Indicates the product complies with the medical device directive Part No. 001300-EN, 10-m10-2023 Track Bridge /Track Bridge Bariatric Owner’s Manual... - Page 16 Refers to the greatest permissible load that can be MAX.LOAD: applied to the product. Ingress Protection: : Protection level against ingress of solid particles : Protection level against ingress of liquids Track Bridge /Track Bridge Bariatric Owner’s Manual Part No. 001300-EN, 10-m10-2023...
- Page 17 Indicates the range of humidity to which the medical device can be safely exposed Indicates the range of atmospheric pressure to which the medical device can be safely exposed Part No. 001300-EN, 10-m10-2023 Track Bridge /Track Bridge Bariatric Owner’s Manual...
- Page 18 Clockwise rotation will lock track bridge sections together Counter-clockwise rotation will unlock track bridge sections Indicates the " Stop " button on the product Track Bridge /Track Bridge Bariatric Owner’s Manual Part No. 001300-EN, 10-m10-2023...
-
Page 19: Specifications
5 °C to 40 °C (41 °F to 104 °F) Battery Charging 10 °C to 40 °C (50 °F to 104 °F) Temperature Humidity 15 to 93%, non-condensing Atmospheric Pressure 700 hPA to 1060 hPA Part No. 001300-EN, 10-m10-2023 Track Bridge /Track Bridge Bariatric Owner’s Manual... - Page 20 Equipment) IEC 60601-1-11:2015 (Homecare) ISO 10535:2021 CAN/CSA Z10535.1:15 (Patient Lift) CE Marking per MDR (EU) 2017/745 (Medical Device) 2006/42/EC (Machinery Directive) 2015/863/EU (ROHS - 100% of components) 2012/19/EU (WEEE) Track Bridge /Track Bridge Bariatric Owner’s Manual Part No. 001300-EN, 10-m10-2023...
-
Page 21: Dimensions
Dimensions Compatibility The track bridge is compatible with portable, fixed and bariatric ceiling lifts. However, the track bridge is not compatible with devices equiped with the constant charging system CCR (fixed and bariatric ceiling lifts) nor with the swivel trolley (used with portable ceiling lift). -
Page 22: Using The Device
NOTE The arrows in figure 4 indicate the built-in stoppers on the track bridge Figure 4 TRACK END STOP Track Bridge /Track Bridge Bariatric Owner’s Manual Part No. 001300-EN, 10-m10-2023... -
Page 23: Using The Track Bridge
Using the Track Bridge 1 Move the ceiling lift inside the track bridge. Figure 5 2 Move the mobile track bridge (Primary) in front of the fixed track bridge (Secondary). You will hear a beep confirming that the track bridge is positioned correctly. - Page 24 3 After less than two seconds, the track bridge will automatically become engaged. 4 Move the ceiling lift across the fixed track bridge (Secondary) and into the track. The track bridges will remain locked together until the ceiling lift returns and crosses the track bridge to go back into the mobile track.
- Page 25 5 To disengage the track bridge, move the ceiling lift across both track bridges for it to automatically disconnect. Figure 8 Figure 9 Part No. 001300-EN, 10-m10-2023 Track Bridge /Track Bridge Bariatric Owner’s Manual...
-
Page 26: Manual Operation (Electrical)
Manual Operation (electrical) In the unlikely event of a track bridge failure, you can use the bypass buttons to manually operate the track bridge. Figure 10 Track Bridge /Track Bridge Bariatric Owner’s Manual Part No. 001300-EN, 10-m10-2023... -
Page 27: Manual Operation (Mechanical)
Manual Operation (mechanical) In the unlikely event of a track bridge failure, you can use a 4mm Allen Key to manually operate the track bridge. Figure 11 Part No. 001300-EN, 10-m10-2023 Track Bridge /Track Bridge Bariatric Owner’s Manual... -
Page 28: Maintenance
Before every use Check the built-in stoppers are all securely in place on both Before every use track bridge sections (see figure 4) Clean the outside of the device As required Track Bridge /Track Bridge Bariatric Owner’s Manual Part No. 001300-EN, 10-m10-2023... -
Page 29: Dealer Maintenance Schedule
Every year bridge Check the wiring and connectors for proper connection Every year Perform a load test on the track bridge and track system Every year with the Safe Working Load WARNING To avoid potential injury, use ONLY Savaria parts when replacing parts. -
Page 30: Inspection And Cleaning
To ensure a better rolling surface for the trolley wheels, clean the inside of the track every 4 months. To do this, insert a damp cloth in the opening and slide it from one end of the track to the other. Track Bridge /Track Bridge Bariatric Owner’s Manual Part No. 001300-EN, 10-m10-2023... -
Page 31: Troubleshooting
CCR strip. Verify also that the CCR brushes are plugged into the track bridge. Ceiling lift stuck in the track Use the manual operation (electrical or bridge halfway engaged. mechanical). See Section 5. Part No. 001300-EN, 10-m10-2023 Track Bridge /Track Bridge Bariatric Owner’s Manual... -
Page 32: Electromagnetic Compatibility
IEC 61000-3-2 the public low-voltage power supply network Voltage Not applicable supplying buildings used for domestic purposes. fluctuations/ flicker emissions IEC 61000-3-3 Track Bridge /Track Bridge Bariatric Owner’s Manual Part No. 001300-EN, 10-m10-2023... -
Page 33: Electromagnetic Immunity
30 A/m characteristic of a typical location in a typical IEC 61000-4-8 commercial or hospital environment. NOTE: UT is the AC mains voltage prior to application of the test level. Part No. 001300-EN, 10-m10-2023 Track Bridge /Track Bridge Bariatric Owner’s Manual... - Page 34 Interference may occur in the vicinity of equipment marked with the following symbol: Track Bridge /Track Bridge Bariatric Owner’s Manual Part No. 001300-EN, 10-m10-2023...
- Page 35 NOTE 1: At 80 MHz and 800 MHz, the separation distance for the higher frequency range applies. NOTE 2: These guidelines may not apply in all situations. Electromagnetic propagation is affected by absorption and reflection from structures, objects and people. Part No. 001300-EN, 10-m10-2023 Track Bridge /Track Bridge Bariatric Owner’s Manual...
- Page 36 Authorized Savaria Dealer Savaria Track Bridge (M92940x) / Track Bridge Bariatric (M92942x) OWNER’S MANUAL Part No. 001300-EN Copyright2023 Rev. 005 10-m10-2023 Savaria Concord Lifts, Inc. 2 Walker Drive Brampton, Ontario, L6T 5E1, Canada www.savaria.com For service or questions about this product, please contact your installing dealer.
