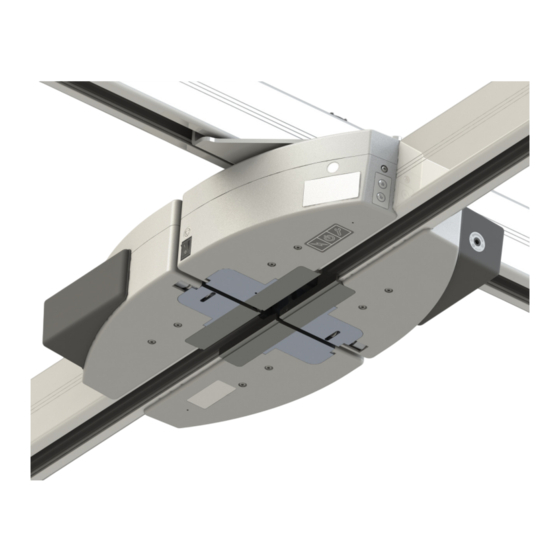

- Page 1 Savaria Ceiling Lift OWNER’S MANUAL To Be Retained by Owner After Installation by Authorized Savaria Dealer Part No. 001 Rev.
- Page 2 IMPORTANT Be sure to read this entire manual before using the Ceiling Lift Track Bridge. The information in this manual is important for the safety of the person being transferred and the operator, and for the proper use and maintenance of the Bridge.
-
Page 3: Standard Notations
All note messages include the signal word NOTE in capitalized white lettering on a blue background. Part No. 001300-EN, 07-m01-2022 Ceiling Lift Track Bridge Owner’s Manual... -
Page 4: Table Of Contents
Electromagnetic Immunity ..........26 Ceiling Lift Track Bridge Owner’s Manual... -
Page 5: Overview
Safety Instructions, before installing, using or maintaining the Bridge. Failure to comply with all WARNINGS in this manual may result in injury. If there is anything you don’t understand, contact your Authorized Savaria Dealer for further details. Keep this manual with the track Bridge and ensure all operators are fully trained in the use of the Bridge as described in this manual. -
Page 6: Safety Instructions
Refer to the nameplate tag for the Maximum Load allowed. • Ensure the track Bridge is installed only with a Savaria ceiling track system and used only with Savaria ceiling lifts. • The track Bridge and track system must be installed by a trained and Authorized Savaria Dealer. -
Page 7: Battery And Charger Safety
Battery and Charger Safety WARNING Contact your Authorized Savaria Dealer if you are unsure of any of the safety instructions provided below. • Do NOT expose the battery or charger to water or any other liquid. • To avoid injury, do NOT alter the battery in any way. Stop using the battery if any damage is noted. -
Page 8: Description
Track Installation section in the Track Installation Guide (001076). Figure 2 Magnetic block installed on portable trolley when Magnetic block used with portable lift installed on fixed lift Kit provided with the Bridge Ceiling Lift Track Bridge Owner’s Manual Part No. 001300-EN, 07-m01-2022... -
Page 9: Device Controls
(most likely to happen with the portable lift, on the M920001-X only): a. When this happens, user has to make sure that the charger is powered (plugged to the wall) prior to connect it to the lift. Part No. 001300-EN, 07-m01-2022 Ceiling Lift Track Bridge Owner’s Manual... -
Page 10: Symbols
Indicates the product was certified by third-party “QPS” Indicates the product complies with the directive (RoHS) Indicates "separate collection" for all batteries and accumulators per the WEEE directive Ceiling Lift Track Bridge Owner’s Manual Part No. 001300-EN, 07-m01-2022... - Page 11 : Protection level against ingress of liquids Unique Device Identification (UDI) symbol required by the FDA Indicates the product is a medical device according to EU Medical Device Regulation 2017/745 Part No. 001300-EN, 07-m01-2022 Ceiling Lift Track Bridge Owner’s Manual...
- Page 12 Symbols on device Indicates that the device is on charge or charged Indicates the power status Indicates that maintenance is recommended on the device Ceiling Lift Track Bridge Owner’s Manual Part No. 001300-EN, 07-m01-2022...
-
Page 13: Specifications
Controls Control Lift presence detected by magnetic sensor Compliance IEC 60601-1:2005 A1:2012+A2:2020 (Medical Electrical Equipment) IEC 60601-1-11:2015 (Homecare) ISO 10535:2006 CAN/CSA Z10535.1:15 Part No. 001300-EN, 07-m01-2022 Ceiling Lift Track Bridge Owner’s Manual... -
Page 14: Dimensions
Compliance CE Marking per MDR (EU) 2017/745 (Medical Device) 2006/42/EC (Machinery Directive) 2015/863/EU (ROHS - 100% of components) 2012/19/EU (WEEE) Dimensions Ceiling Lift Track Bridge Owner’s Manual Part No. 001300-EN, 07-m01-2022... -
Page 15: Using The Bridge
Inform the person to be transferred what you are about to do. The beep and the locking process can cause stress if the process is unknown. Figure 5 TRACK END STOP Part No. 001300-EN, 07-m01-2022 Ceiling Lift Track Bridge Owner’s Manual... -
Page 16: Using The Bridge
2 Move the mobile Bridge (Primary) in front of the fixed Bridge (Secondary). You will hear a beep confirming that the Bridge is positioned correctly. Figure 7 3 After less than two seconds, the Bridge will automatically become engaged. Ceiling Lift Track Bridge Owner’s Manual Part No. 001300-EN, 07-m01-2022... - Page 17 4 Move the lift across the fixed Bridge (Secondary) and into the track. The bridges will remain locked together until the lift returns and crosses the bridge to go back into the mobile track. Figure 8 Part No. 001300-EN, 07-m01-2022 Ceiling Lift Track Bridge Owner’s Manual...
- Page 18 5 To disengage the Bridge, move the lift across both Bridges for it to automatically disconnect. Figure 9 Figure 10 Ceiling Lift Track Bridge Owner’s Manual Part No. 001300-EN, 07-m01-2022...
-
Page 19: Manual Operation (Electrical)
Manual Operation (electrical) In the unlikely event of Bridge failure, you can use the bypass button to manually operate the Bridge. Figure 11 Part No. 001300-EN, 07-m01-2022 Ceiling Lift Track Bridge Owner’s Manual... -
Page 20: Manual Operation (Mechanical)
Manual Operation (mechanical) In the unlikely event of Bridge failure, you can use a 4mm Allen Key to manually operate the Bridge. Figure 12 Ceiling Lift Track Bridge Owner’s Manual Part No. 001300-EN, 07-m01-2022... -
Page 21: Maintenance
Recommended Operator Maintenance Schedule It is recommended to perform the following checks/actions as indicated. If any of the checks fail, contact your Authorized Savaria Dealer for service or replacement of parts. Operator Check/Action... -
Page 22: Recommended Dealer Maintenance Schedule
Recommended Dealer Maintenance Schedule It is recommended for an Authorized Savaria Dealer to perform the checks/actions listed in the Operator Maintenance Schedule as well as those listed in the table below. Dealer Check/Action Frequency Check all inside hardware to ensure it is properly tightened... -
Page 23: Inspection And Cleaning
WARNING Do NOT open the Bridge cover. Only an Authorized Savaria Dealer is qualified to open it. Modifications made to the device by someone other than a qualified technician may cause serious injury. -
Page 24: Troubleshooting
7. TROUBLESHOOTING WARNING Do NOT open the Bridge covers. Only an Authorized Savaria Dealer is qualified to open it. Modifications made to the device by someone other than a qualified technician may cause serious injury. Problem Action The unit starts and stops Verify the connection from the power outlet to the repeatedly. -
Page 25: Electromagnetic Compatibility
IEC 61000-3-2 supplying buildings used for domestic purposes. Voltage Not applicable fluctuations/ flicker emissions IEC 61000-3-3 Part No. 001300-EN, 07-m01-2022 Ceiling Lift Track Bridge Owner’s Manual... -
Page 26: Electromagnetic Immunity
30 A/m characteristic of a typical location in a typical IEC 61000-4-8 commercial or hospital environment. NOTE: UT is the AC mains voltage prior to application of the test level. Ceiling Lift Track Bridge Owner’s Manual Part No. 001300-EN, 07-m01-2022... - Page 27 Interference may occur in the vicinity of equipment marked with the following symbol: Part No. 001300-EN, 07-m01-2022 Ceiling Lift Track Bridge Owner’s Manual...
- Page 28 NOTE 1: At 80 MHz and 800 MHz, the separation distance for the higher frequency range applies. NOTE 2: These guidelines may not apply in all situations. Electromagnetic propagation is affected by absorption and reflection from structures, objects and people. Ceiling Lift Track Bridge Owner’s Manual Part No. 001300-EN, 07-m01-2022...
- Page 29 THIS PAGE WAS LEFT INTENTIONALLY BLANK...
- Page 30 THIS PAGE WAS LEFT INTENTIONALLY BLANK...
- Page 31 THIS PAGE WAS LEFT INTENTIONALLY BLANK...
- Page 32 Ceiling Lift Track Bridge OWNER’S MANUAL Part No. 001300-EN Copyright2022 Rev. 001 07-m01-2022 Savaria Concord Lifts, Inc. 2 Walker Drive Brampton, Ontario, L6T 5E1, Canada www.savaria.com For service or questions about this product, please contact your installing dealer. DEALER NAME:...
