Omada Stackable L3 Managed Switch
To install the device, follow the instructions described below:
1. Attach the M6 nuts to the racks.

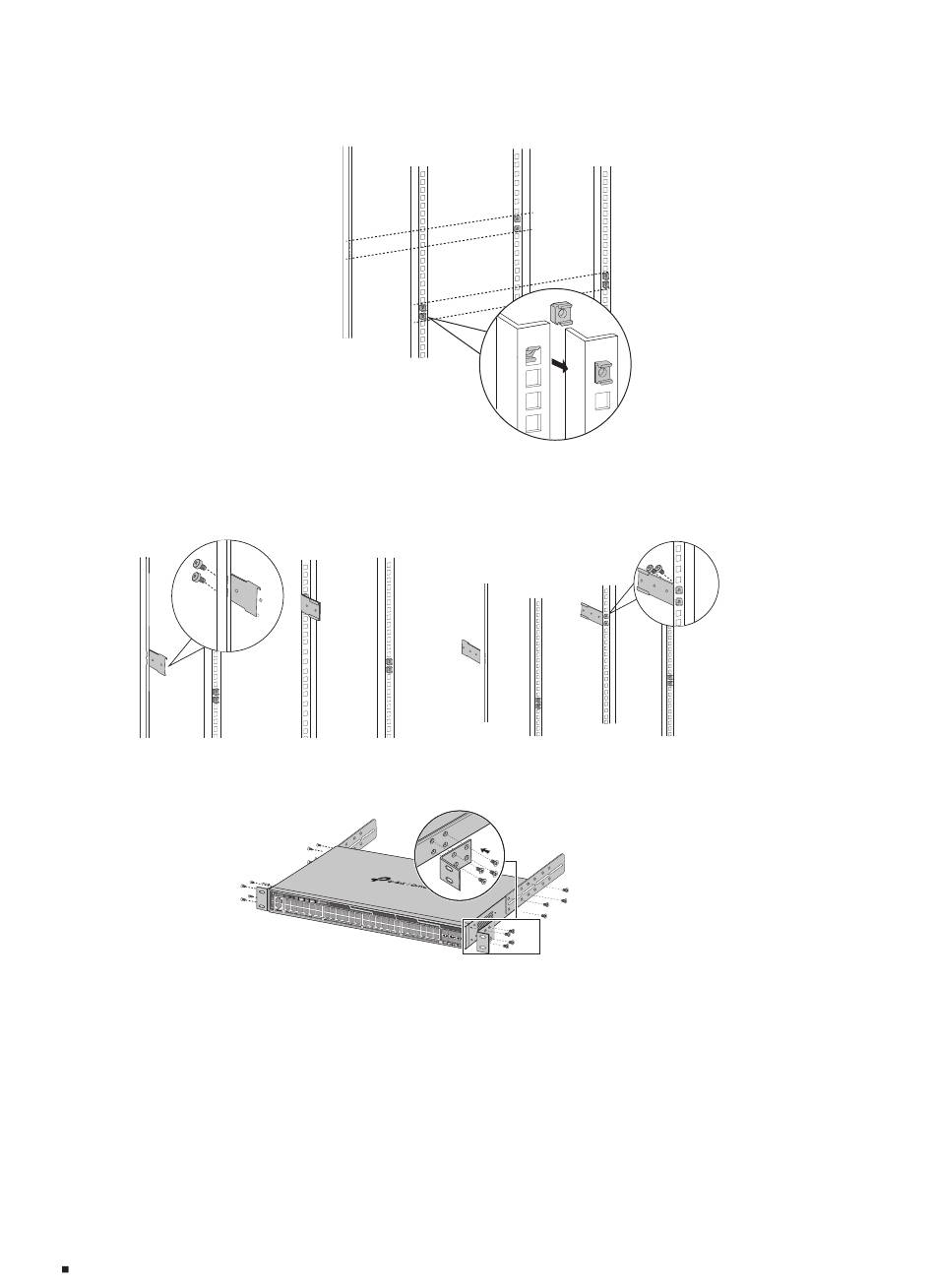

Figure 2-4
Securing M6 Nuts
2. Attach the mounting brackets (B or C) to the rear-post racks and secure them with the provided
M6 screws, as illustrated in the following figure.
Figure 2-5
Installing Brackets on Racks
3. Attach the brackets A & D to the switch with the provided M3 screws.
Figure 2-6
Installing Brackets on Switch
4. After the brackets are attached to the device, hold the switch with attached brackets up until it
aligns with the brackets on the racks, and gently push the switch backwards until it is in place, then
secure the device on the racks with M6 screws and fix brackets B/C to brackets A with M4 screws
on both sides.
14
Installation
×8
