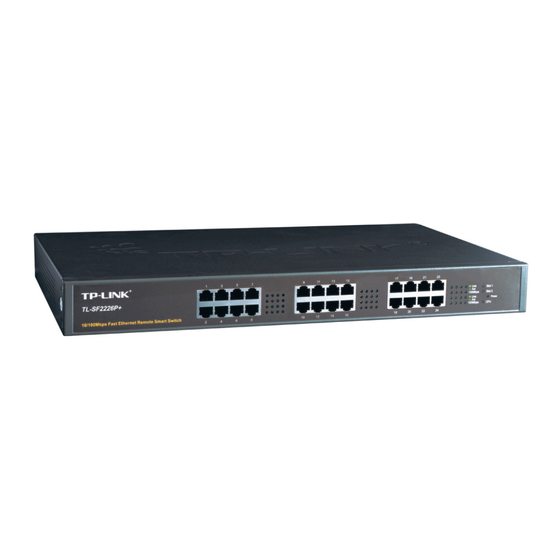

24+2/24+2g remote smart switch
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 24+2/24+2G and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for TP-Link 24+2/24+2G

Summary of Contents for TP-Link 24+2/24+2G

  • Page 2 Specifications are subject to change without notice. is a registered trademark of TP-LINK Technologies Co., Ltd. Other brands and product names are trademarks or registered trademarks of their respective holders. No part of the specifications may be reproduced in any form or by any means or used to make any derivative such as translation, transformation, or adaptation without permission from TP-LINK Technologies Co., Ltd.

  • Page 3: Table Of Contents

    COPYRIGHT & TRADEMARKS ... 0 Package Contents... 1 Chapter 1: About this User's Guide ... 2 1.1 Usage... 2 1.2 Assumpsit... 2 1.3 Overview of this User's Guide ... 2 Chapter 2: Introduction... 3 2.1 Features... 3 Chapter 3: Installation ... 4 3.1 Installation...

  • Page 4: Package Contents

    TL-SF2226P+/TL-SL2226P+ Package Contents The following contents should be found in your box: One Switch One AC power cable One Serial cable One User's Guide One Resource CD Two mounting brackets and screws Note: If any of the listed contents are damaged or missing, please contact the retailer from whom you purchased the Switch for assistance.

  • Page 5: Chapter 1: About This User's Guide

    TL-SF2226P+/TL-SL2226P+ Chapter 1: About this User's Guide Thank you for purchasing TL-SF2226P+/TL-SL2226P+ Remote Smart Switch! The TL-SF2226P+/TL-SL2226P+ provides powerful management functions. With the feature of high-performance, easy to use and economical, the TL-SF2226P+/TL-SL2226P+ is one of the best choice for you. 1.1 Usage This User's Guide tells you how to use the TL-SF2226P+/TL-SL2226P+ Remote Smart Switch.

  • Page 6: Chapter 2: Introduction

    TL-SF2226P+/TL-SL2226P+ Chapter 2: Introduction This part simply describes the features of TL-SF2226P+/TL-SL2226P+ Remote Smart Switch. For more details, please refer to Chapter 4. 2.1 Features Supports remote management Supports Out-of-Band management Supports Telnet management Provides 10/100M switch base function 24 10Base-T/100Base-TX RJ-45 ports with auto-MDI/MDIX The TL-SL2226P+ provides two 10Base-T/100Base-TX/1000Base-T, 100Base-FX/ 1000Base-SX/LX extension slots, supporting 10/100/1000Mbps module card, e.g.

  • Page 7: Chapter 3: Installation

    TL-SF2226P+/TL-SL2226P+ Chapter 3: Installation 3.1 Installation Follow these steps to install the switch: The surface must support at least 5kg The power source must be within 1.5m Check the cable to make sure the connection to AC power Leave enough space for the ventilation 3.2 Rack Installation The TL-SF2226P+/TL-SL2226P+ can be mounting in an EIA standard size 19 inches rack.

  • Page 8: Power On

    TL-SF2226P+/TL-SL2226P+ Remote Smart Switch User Guide Figure 3-2 The view of mounting the TL-SF2226P+ in the rack 3.3 Power On The TL-SF2226P+/TL-SL2226P+ can be used with the power source in the range of 100 to 240 VAC, 50 to 60Hz. The internal power system of the TL-SF2226P+/TL-SL2226P+ can automatically adjust the operating power according to the power input.

  • Page 9: Chapter 4: Explanation Of Switch Appearance And The Method Of Connecting Switch

    TL-SF2226P+/TL-SL2226P+ Chapter 4: Explanation of Switch Appearance and the Method of Connecting Switch This chapter covers more details about front panel, rear panel, LED and extension module of the switch. 4.1 Front Panel There are 24 10/100Mbps ports and LED indicators on the front panel of the TL-SF2226P+.

  • Page 10: Led

    TL-SF2226P+/TL-SL2226P+ 4.3 LED LEDs, including Power LED, 100Mbps LED, Link/Act LED, Slot1, Slot2 and CPU LED, can detect and indicate the state of the switch. More details are as follows. Figure 4-3 LED Indicators view of TL-SF2226P+ Switch Power LED The power LED will be solid red when power on, or else, check the power connection.

  • Page 11: Chapter 5: Installation And The Usage Of The Remote Management Software

    TL-SF2226P+/TL-SL2226P+ Chapter 5: Installation and the Usage of the Remote Management Software The TL-SF2226P+/TL-SL2226P+ is a smart switch, you can configure it with the remote Management software shipped with the switch, It’s very convenient for you to manage the switch. After install the software under windows OS, you can manage several switches at the same time.

  • Page 12: Add

    TL-SF2226P+/TL-SL2226P+ are four steps on configuring the switch. Connection Configuration Exit Caution: When you use the switch for the first time, you must reset the IP address and gateway of the switch. The witch default IP address is 192.168.0.100(for more details, please refer to Chapter 5).
  • Page 13 TL-SF2226P+/TL-SL2226P+ Remote Smart Switch User Guide Figure 5-3 Click Add Group, you can see the dialog. As figure 5-4 Figure 5-4 Click the right button at Please Add Group on initialized interface and then pop up a menu, click Add Group. As figure 5-5 - 10 -...
  • Page 14 TL-SF2226P+/TL-SL2226P+ Click the add group icon on the tool bar. As figure 5-6. Add device and node in device group. In device group, you can add device and node, which are just like file and folder. The hiberarchy of node and device of a group are not more than five.
  • Page 15 TL-SF2226P+/TL-SL2226P+ Open the group you added just now and click the right button on the device name, then there will pop up a menu. As figure 5-7. Click Add Dev/ Node, you will see a dialog. As figure 5-8. After adding device and node, you can see the interface as figure 5-9. Remote Smart Switch User Guide Figure 5-7 Figure 5-8...

  • Page 16: Connection

    TL-SF2226P+/TL-SL2226P+ Look at the device icon carefully, if the color of the icon is red, it means that the device can't communicate with the PC. Please check whether the power is on, the twisted pair is well connected and the ping is ok. If all is ok, you can click the save icon to save information of the device.

  • Page 17: Configuration

    TL-SF2226P+/TL-SL2226P+ The color of the port on the panel is yellow, which means that the port is in connection. If it is red, it means that the port is forbidden to use. If the color of the port frame is red, it’s said that the port is management port.
  • Page 18 TL-SF2226P+/TL-SL2226P+ Current VLAN mode is shown in the combo box, select one mode you want in the combo box and click OK. If you change the VLAN mode, the information of previous VLAN will be lost and the switch will give new default information about VLAN. If the VLAN mode is port VLAN, all ports will be in a VLAN.
  • Page 19 TL-SF2226P+/TL-SL2226P+ Now go back to the main menu->Config->VLAN Config->Config Effect, Only execute this step, the Configuration will be valid. If the VLAN mode is not changed, this menu can't be seen. TRUNK Config TRUNK can transmit net data through a group of ports. The switch looks a TRUNK as a big port regardless of it's composition.
  • Page 20 TL-SF2226P+/TL-SL2226P+ help file. Now go back to main menu->Config->TRUNK Config->Config Effect. Only execute this step, the Configuration will be valid. If the TRUNK is not changed, this menu can't be seen. Port Config Click main menu->Config->Port Config or double click a port in the port list box. As figure 5-16.
  • Page 21 TL-SF2226P+/TL-SL2226P+ 10HD: 10Mbps, Half-Duplex. 10FD: 10Mbps, Full-Duplex. 100HD: 100Mbps, Half-Duplex. 100FD: 100Mbps, Full-Duplex Flow Control: Disable: The port won't produce Flow Control packets and will discard the Flow Control packets received. Enable: The Switch will negotiate Flow Control on the specified port according to Full-Duplex or Half-Duplex.
  • Page 22 TL-SF2226P+/TL-SL2226P+ Now a dialog will be pop up. In the dialog, you should Enable QOS, set high priority and low priority and select a priority class in the list box. For more details, please refer to help file. Broadcast Storm Control When the Broadcast Storm Control is enabled, it will be valid.
  • Page 23 TL-SF2226P+/TL-SL2226P+ you can see the interface as follows. For more details, please refer to help file. MAC Aging Time Dynamic forwarding table entries, which are made up of the source and destination MAC address and their associated port numbers, are deleted from the table if they are not accessed within the aging time.

  • Page 24: Exit

    TL-SF2226P+/TL-SL2226P+ Remote Smart Switch User Guide Caution: After change, if you can't connect with the switch, you can use RS232 to connect the switch and get the switch IP. Switch VLAN Mode The TL-SF2226P+ can support three VLAN modes, no VLAN, port VLAN and tag VLAN. You can only choose one mode of the three as the current switch VLAN Mode.

  • Page 25: Chapter6 Telnet/Out-Of-Band Management

    TL-SF2226P+/TL-SL2226P+ Remote Smart Switch User Guide Chapter6 TELNET/Out-of-Band Management 6.1 Introduction Through TELNET you can realize Remote Log in to manage the Switch. Out-of-Band Management manages the switch locally through the console port, without occupying the bandwidth. Though TELNET and Out-of-Band have different presentation, their management contents are the same, both of them can be used to configure the switch's characters.
  • Page 26 TL-SF2226P+/TL-SL2226P+ The speed of the console port is 19200bps. The data bit is 8 bit. There is not Parity Test and flow control. The Stop bit is 1.Now you will see the interface as follows. Input user name and password, the default user name and password are admin, you can change it after logging in.

  • Page 27: How To Connect Telnet

    TL-SF2226P+/TL-SL2226P+ 6.3 How to connect TELNET Connect the management workstation to the management port on the switch. You can directly use TELNET command on the command DOS prompt in the Windows Attachment. The parameter following the TELNET command is the IP address of the switch which can be revised adapting to the network.

  • Page 28: The Interface And Operating Way Of Telnet/Out-Of-Band

    TL-SF2226P+/TL-SL2226P+ Input user name and password and you can manage the switch. If you can not log in, check whether the network is working, check whether there is other user who has already logged on. (Only one user can access the switch at one time through TELNET.) 6.4 The interface and operating way of TELNET/Out-of-Band No matter through TELNET or Out-of-Band Management, the users have two rights.
  • Page 29 TL-SF2226P+/TL-SL2226P+ it means that the port is connecting with remote management. You can not shut down the port in order that the remote connection can't be interrupted. You can edit properties of the ports with the space key. If the VLAN type is Tag based VLAN, the PVID can't be visible and can't be edit.
  • Page 30 TL-SF2226P+/TL-SL2226P+ Port Based VLAN is as follows. Only if current VLAN Mode is Port Based VLAN, you can see this interface, or you will see an error message. If you want to edit VLAN, you can look a trunk as a big port. 802.1Q VLAN is as follows.
  • Page 31 TL-SF2226P+/TL-SL2226P+ Only if the VLAN Mode is 802.1Q VLAN, you can see this interface, or you will see an error massage. The configuration method is similar to Port Based VLAN. If the VLAN state is DE, it means the VLAN is invalid. U means untag, T means tag. TRUNK Management TRUNK Management interface as follows: Before you enable a TRUNK, you must make the properties of the 4 ports be the same.
  • Page 32 TL-SF2226P+/TL-SL2226P+ rule when they are in the same VLAN. When you enable or disable a TRUNK, the switch will lose the info of static binding address which is relate to the TRUNK or the 4 ports. MAC Table Aging Time MAC Table Aging Time interface is as follows: Priority Management Priority Management interface is as follows, when the sate is close, other parameters...
  • Page 33 TL-SF2226P+/TL-SL2226P+ Press Enter, you will see the interface as follows. There are three operations in Static MAC Table, add, delete and edit. The switch can bind 128 MAC at most, including Enable and Disable. Caution: If you configure the Static MAC Table, it will take effect immediately, you needn't save it.
  • Page 34 TL-SF2226P+/TL-SL2226P+ Network Config Network Config interface is as follows, you can change the switch's IP, gateway, you can not change the switch's MAC address. Press w or s key to move cursor, press space to edit the switch's IP address, Default gateway.
  • Page 35 Edit Update_SF2226P+ 201.bat file which can be download at our website: www.tp-link.com. Change the IP 192.168.0.100 into the switch's real IP and save Log on the switch and run firmware update. Before the timer reduces to zero, run Update_SF2226P+ 201 file and wait till the switch is successfully updated.

  • Page 36: Appendix A Technical Specifications

    TL-SF2226P+/TL-SL2226P+ Appendix A Technical Specifications TL-SF2226P+ Standards IEEE802.3 10BASE-T IEEE802.3u 100BASE-TX/FX Protocol CSMA/CD Ethernet Data Transfer Ethernet: 10Mbps(half duplex), 20Mbps(full duplex) Fast Ethernet: 100Mbps(half duplex), 200Mpbs(full duplex) Topology Star Network Media 10Base-T: UTP category 3, 4, 5 cable (100m) (Cable) 100Base-TX: UTP category 5 cable (100m) 100Base-FX: 9/125μm or 50/125μm or 62.5/125μm fiber Number...
  • Page 37 TL-SF2226P+/TL-SL2226P+ Module Slot Two independent module slots Transmits Method Store-and-Forward Power Supply 100-240V ~ 50-60Hz 0.6A (internal universal power supply) Power Consumption Lower than 15 watts Environment Operating temperature： 0℃ ~ 40℃ (32℉~104℉) Storage temperature： -40℃ – 70℃ (-40℉~158℉) Storage humidity： 5% ~ 90% (non-condensing) Dimension(W x H x D) 17.3 in.
