- Page 1 Business Networking Solution Installation Guide...
- Page 3 Remind to take notice. The note contains the helpful information for a better use of the product. Related Document The User Guide and CLI Reference Guide of the product are provided on Download Center. To obtain the latest product information, visit the official website: https://www.tp-link.com.
-
Page 4: Table Of Contents
Contents Chapter 1 Introduction ——————————— 01 Product Overview ............01 Appearance ...............01 Chapter 2 Installation ——————————— 06 Package Contents ............06 Safety Precautions ............06 Installation Tools ..............08 Product Installation ............08 Chapter 3 Connection ——————————— 10 Ethernet Port ..............10 SFP+ Slot ................10 Console Port ..............10 Verify Installation .............11 Power On ................12 Initialization ................12... -
Page 5: Chapter 1 Introduction

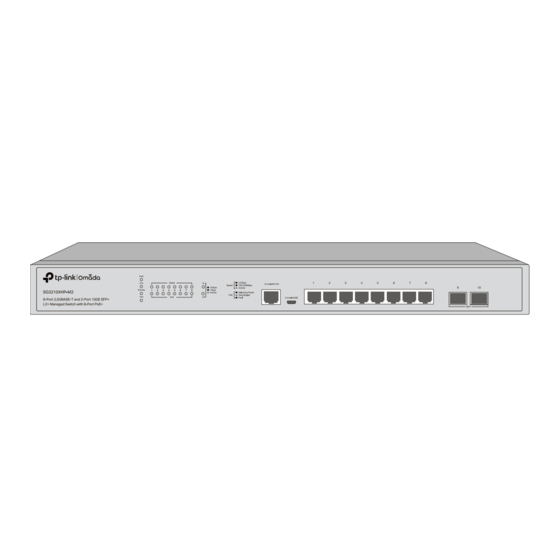

Omada L2+ Managed Switch Chapter 1 Introduction Product Overview Designed for workgroups and departments, TP-Link Omada's L2+ Managed Switch provides wire-speed performance and abundant L2 management features. It provides a variety of service features and multiple powerful functions with high security. - Page 6 Omada L2+ Managed Switch LEDs For SG3210X-M2 Indication On: The switch is powered on. Off: The switch is powered off or power supply is abnormal. Flashing: Power supply is abnormal. Flashing: The switch works properly. On or Off: The switch works improperly. On: Running at 2.5 Gbps, but no activity.
- Page 7 Omada L2+ Managed Switch Indication Green On: The port is supplying power normally. Green Flashing: The supply power exceeds the correponding port's maximum power. Yellow On: Overload or short circuit is detected. Yellow Flashing: Power-on self-test failed. Off: Not providing PoE power on the port. Green On: Running at 10 Gbps, but no activity.
- Page 8 PE (Protecting Earth) cable of AC cord or with Ground Cable. For detailed lightning protection measures, go to https://www.tp-link.com/support, search the model number of your switch and go to the product Support web page, refer to the Lightning Protection Guide from the Related Documents: https://www.tp-link.com/us/configuration-guides/lightning_protection_guide/.
- Page 9 Omada L2+ Managed Switch Connect the female connector of the power cord here, and the male connector to the AC power outlet. Make sure that the voltage of the power supply meets the requirement of the input voltage (100–240 V~ 50/60 Hz).
-
Page 10: Chapter 2 Installation
Omada L2+ Managed Switch Chapter 2 Installation Package Contents Make sure that the package contains the following items. Please contact your distributor, if any of the listed items is damaged or missing. The figures are for demonstration only. The actual items may differ in appearance and quantity from the depicted. - Page 11 Omada L2+ Managed Switch Keep the equipment room at an appropriate level of temperature and humidity. Too much or too little humidity may lead to bad insulation, leakage of electricity, mechanical property changes, and corrosion. High temperatures may accelerate aging of the insulation materials, significantly shortening the service life of the device.
-
Page 12: Installation Tools
Use the signal SPD (Surge Protective Device) when wiring outdoor. ■ Note: For detailed lightning protection measures, go to https://www.tp-link.com/support, search the model number of your switch and go to the product Support web page, refer to the Lightning Protection Guide from the Related Documents: https://www.tp-link.com/us/configuration-guides/lightning_protection_guide/. - Page 13 Omada L2+ Managed Switch 3. Turnover the device and attach the supplied rubber feet to the recessed areas on the bottom at each corner of the device. Figure 2-1 Desktop Installation Feet Bottom of the Device Notch Rack Installation ■ To install the device in an EIA standard-sized, 19-inch rack, follow the instructions described below: 1.
-
Page 14: Chapter 3 Connection
Omada L2+ Managed Switch Chapter 3 Connection Ethernet Port Connect an Ethernet port of the switch to the computer by RJ45 cable as the following figure shows. Figure 3-1 Connecting the RJ45 Port RJ45 Port RJ45 Cable SFP+ Slot The following figure demonstrates the connection of SFP+ slot to an SFP+ module. Figure 3-2 Inserting the SFP+ Module SFP+ Slot... -
Page 15: Verify Installation
Omada L2+ Managed Switch Connect the console (RJ45) port of the device with your computer by the console cable as the following figure shows. Figure 3-3 Connecting the Console (RJ45) Port Connect the console (USB) port of the device with your computer by the USB cable (not provided) as the following figure shows. -
Page 16: Power On
Omada L2+ Managed Switch Power On Plug the female connector of the provided power cord into the power socket of the device and plug the positive connector into a power outlet as the following figure shows. Make sure that the voltage of the power supply meets the requirement of the input voltage (100-240 V~ 50/60 Hz). -
Page 17: Chapter 4 Configuration
3. After a successful login, the main page will appear. You can click the menus on the top side and left side to configure the corresponding functions. For the detailed configurations, refer to the User Guide and CLI Guide. The guides can be found on the download center of our official website: https://www.tp-link.com/support/download/. Using the CLI ■... -
Page 18: Controller Mode
None For the detailed configurations, refer to the User Guide and CLI Guide. The guides can be found on the download center of our official website: https://www.tp-link.com/download-center.html Note: For certain devices, you may need to change the password the first time you log in, which will better protect your network and devices. - Page 19 Launch a web browser and enter https://omada.tplinkcloud.com in the address bar. Enter your TP-Link ID and password to log in. Click + Add Controller and choose Hardware Controller to add your controller. Then you can further configure the controller.
- Page 20 Make sure that Cloud Access is enabled on your controller and your controller has been bound with your TP-Link ID. On the Omada Controller’s web page, go to Settings > Cloud Access to enable Cloud Access and bind your TP-Link ID. If you have set it up in the quick setup, skip this step.
-
Page 21: Appendix A Troubleshooting
Omada L2+ Managed Switch Appendix A Troubleshooting Q1. What could I do if I forgot the username and password of the switch? Connect the console port of the PC to the console port of the switch and open a terminal emulation program. -
Page 22: Appendix B Specifications
Omada L2+ Managed Switch Appendix B Specifications Specifications for Switches with RJ45 Ports and SFP+ Slots Item Content IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3z, IEEE 802.3x, IEEE 802.1p, IEEE 802.1q, IEEE 802.1x, IEEE 802.1d, IEEE 802.1s, IEEE 802.1w, IEEE 802.1ab, IEEE 802.3ae, IEEE 802.3bz Standards IEEE 802.3af/at (For SG3210XHP-M2, SG3218XP-M2) IEEE 802.3i (For SG3218XP-M2) 10BASE-T: 2-pair UTP/STP of Cat. - Page 23 EU Declaration of Conformity TP-Link hereby declares that the device is in compliance with the essential requirements and other relevant provisions of directives 2014/30/EU, 2014/35/EU, 2011/65/EU and (EU)2015/863. The original EU Declaration of Conformity may be found at https://www.tp-link.com/en/support/ce/...
- Page 24 To ask questions, find answers, and communicate with TP-Link users or engineers, please visit https://community.tp-link.com to join TP-Link Community. For technical support, the user guide and other information, please visit https://www.tp-link.com/support, or simply scan the QR code. © 2023 TP-Link 7106510456 REV1.0.1...
