Playcraft SUNRISE CLIMBER R5 Installation Instructions

SUNRISE CLIMBER R5
INSTALLATION INSTRUCTIONS
IMPORTANT NOTES: Read First
(A) Use liquid thread lock (such as Loctite
to curing) helps to eliminate the common problem of "thread seizure" in stainless steel hardware by serving
as a lubricant during assembly.
(B) Refer to Installation Manual for 09 Collars, 1313 Curved Post Handle, and R5-1314 Access Wall
installation instructions.
(C) An appropriate energy absorbing safety surface is required under and around all playground equipment.
Loose fill protective surfacing is shown only as an example for the purpose of this assembly instruction. Other
surfacing material may vary in thickness and/or compression depths. See free publication - The Handbook for
Public Playground Safety, Publication #325 at www.cpsc.gov for the surfacing appropriate for the fall height
of the equipment or consult your surfacing supply representative.
See Installation Manual Section
1313 Curved Post Handle
®
) with all threaded hardware. Important: Liquid thread lock (prior
www.playcraftsystems.com
For Customer Service Call
800.333.8519 (U.S.A.) or 541.955.9199 (International)
See Installation Manual Section
R5-1314 Access Wall

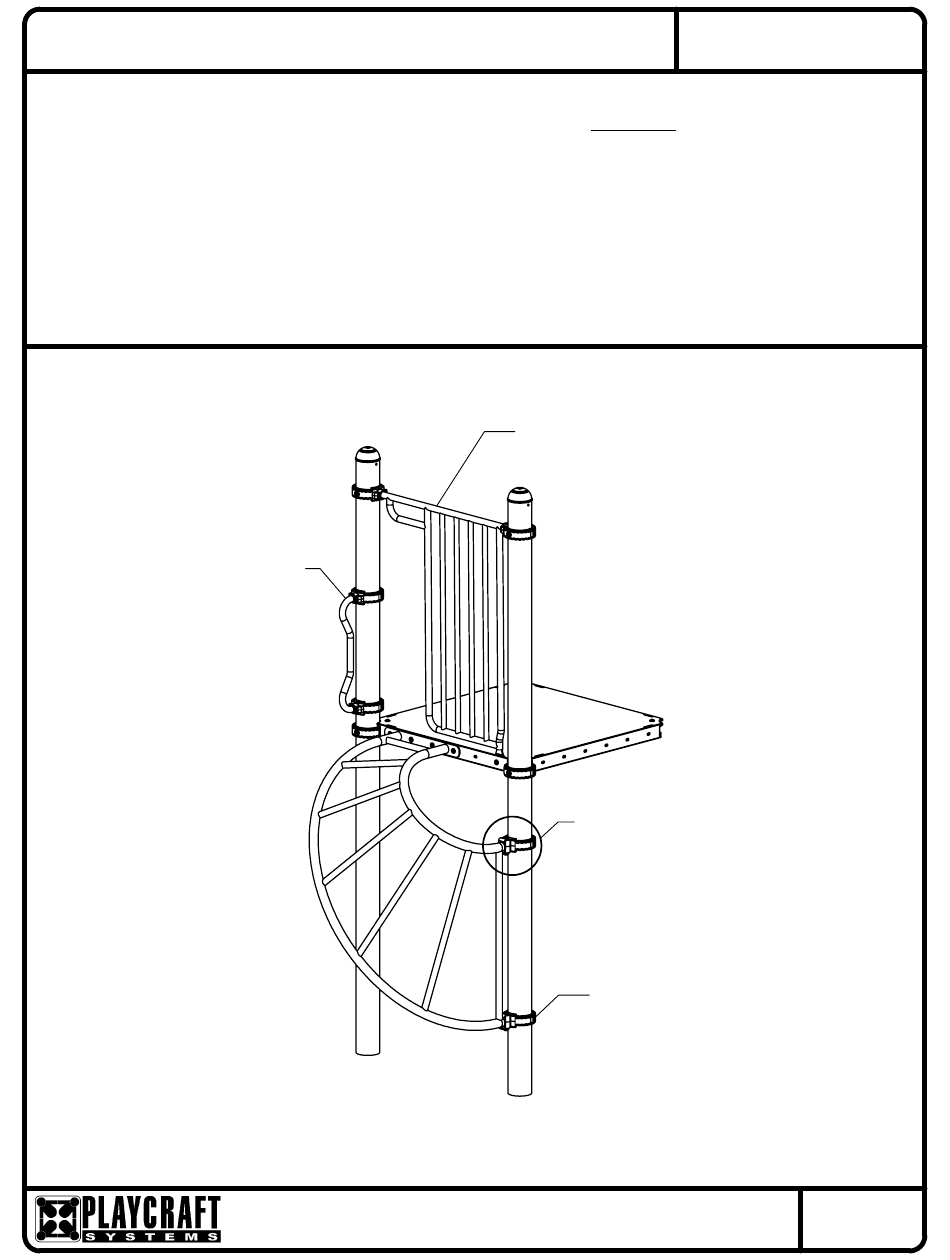

Figure 1.1
See Installation Manual Section
09 Collars
NOTE: R5 5' deck height Sunrise Climber right
side shown. Other configurations will vary
slightly, but does not affect assembly.
R5-12801
Page 1 of 3
FIGURE 1
Sunrise Climber
Rev B
6/8/2020
