Playcraft 1202 Manual

STEP DECK ASSEMBLY

IMPORTANT NOTES: Read First

(A) Use liquid thread lock (such as Loctite
curing) helps to eliminate the common problem of "thread seizure" in stainless steel hardware by serving as a
lubricant during assembly.
(B) Do not pour concrete until the equipment is completely assembled, leveled and plumbed. Concrete must be
allowed to cure completely before using the equipment (at least 72 hours).
(C) Refer to Installation Manual for R3.5-1110-1116 Vertical Deck Fillers or R5-1110-1116 Vertical Deck Fillers
assembly instructions.
(D) Use appropriate compliant protective surfacing and adjust footing depths accordingly. See free publication -
The Handbook for Public Playground Safety, Publication #325 at www.CPSC.gov for the surfacing appropriate
for the fall height of the equipment or consult you surfacing supply representative.
(E) Vertical Deck Filler required for 12" [305mm] Step Deck to 24" [610mm] Deck. Vertical Deck Filler optional for
6" [152mm] Step Deck to 12" [305mm] Deck. Vertical Deck Filler required for all Canadian Step Deck heights.
See Installation Manual Sections
R3.5-1110-1116 or
R5-1110-1116 Vertical Deck Fillers
NOTE: 12" [305mm] Step Deck to 24"
[610mm] Deck Configuration shown.
Other configurations will vary slightly,
but do not affect the assembly.
®
) with all threaded hardware. Important: Liquid thread lock (prior to
Manufactured by Krauss Craft, Inc.
www.playcraftsystems.com

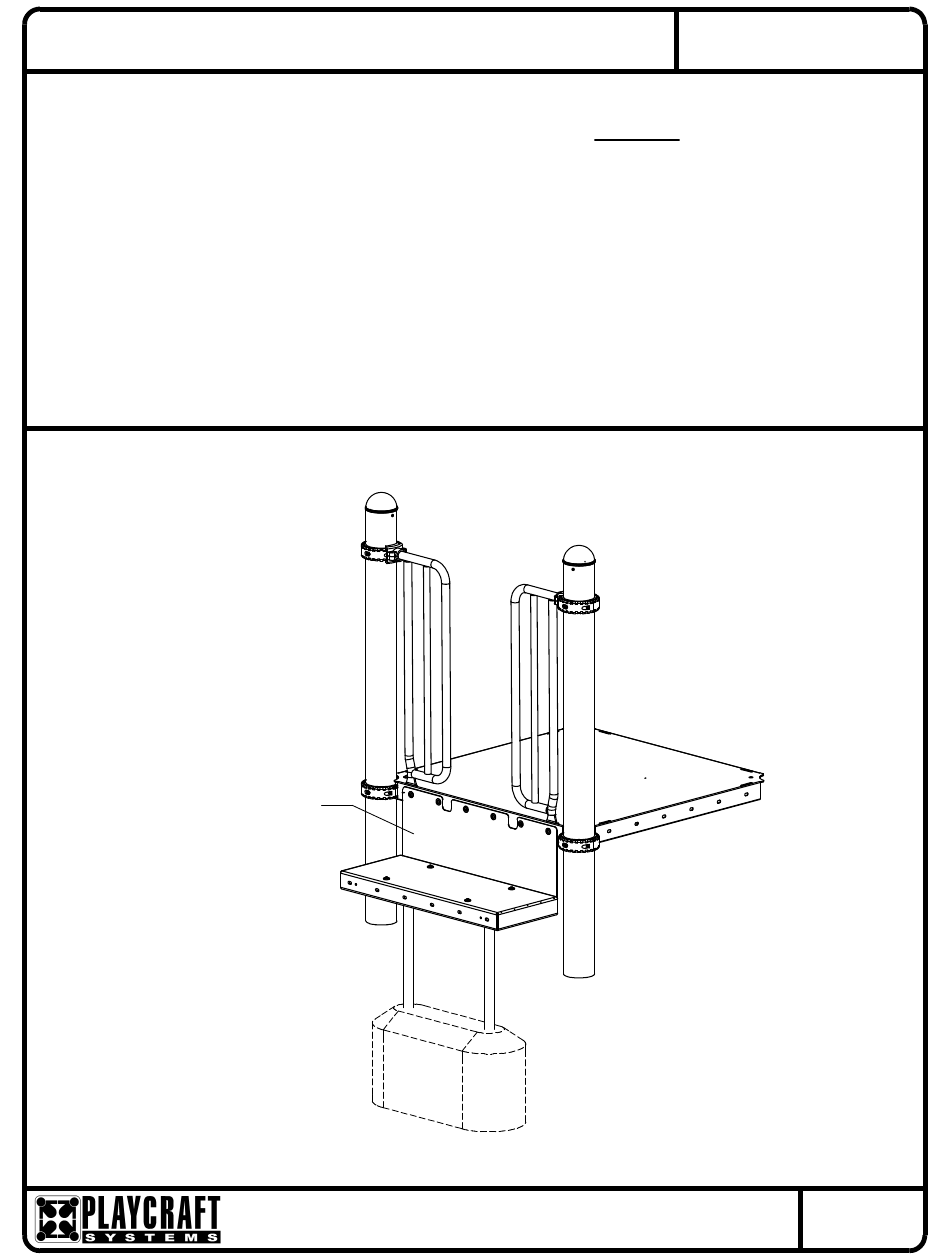

FIGURE 1
Step Deck Assembly
For Customer Service Call
800.333.8519 (U.S.A.) or
541.955.9199 (International)
1202
Page 1 of 3
Rev E
