Playcraft Twister Slide 1710 Installation Instructions

TWISTER SLIDE
IMPORTANT NOTES: Read First
(A) Use liquid thread lock (such as Loctite
curing) helps to eliminate the common problem of "thread seizure" in stainless steel hardware by serving as a
lubricant during assembly.
(B) Do not pour concrete until the equipment is completely assembled, leveled and plumbed. Concrete must be
allowed to cure completely before using the equipment (at least 72 hours).
(C) Refer to Installation Manual for 1316 Twister Entry Panel, 1317 Triple Twister Entry Panel assembly
instructions or corresponding theme panel assembly instructions .
(D) Use appropriate compliant protective surfacing and adjust footing depths accordingly. See free publication -
The Handbook for Public Playground Safety, Publication #325 at www.CPSC.gov for the surfacing appropriate for
the fall height of the equipment or consult you surfacing supply representative.
(E)
Exit height must be between 7" [180mm] and 15" [380mm] from finish grade for slides with an elevation
greater than 48". For slide elevations no greater than 48", the exit height shall be no greater than 11".
Exit region must also have a downward slope of 0 to 4° .

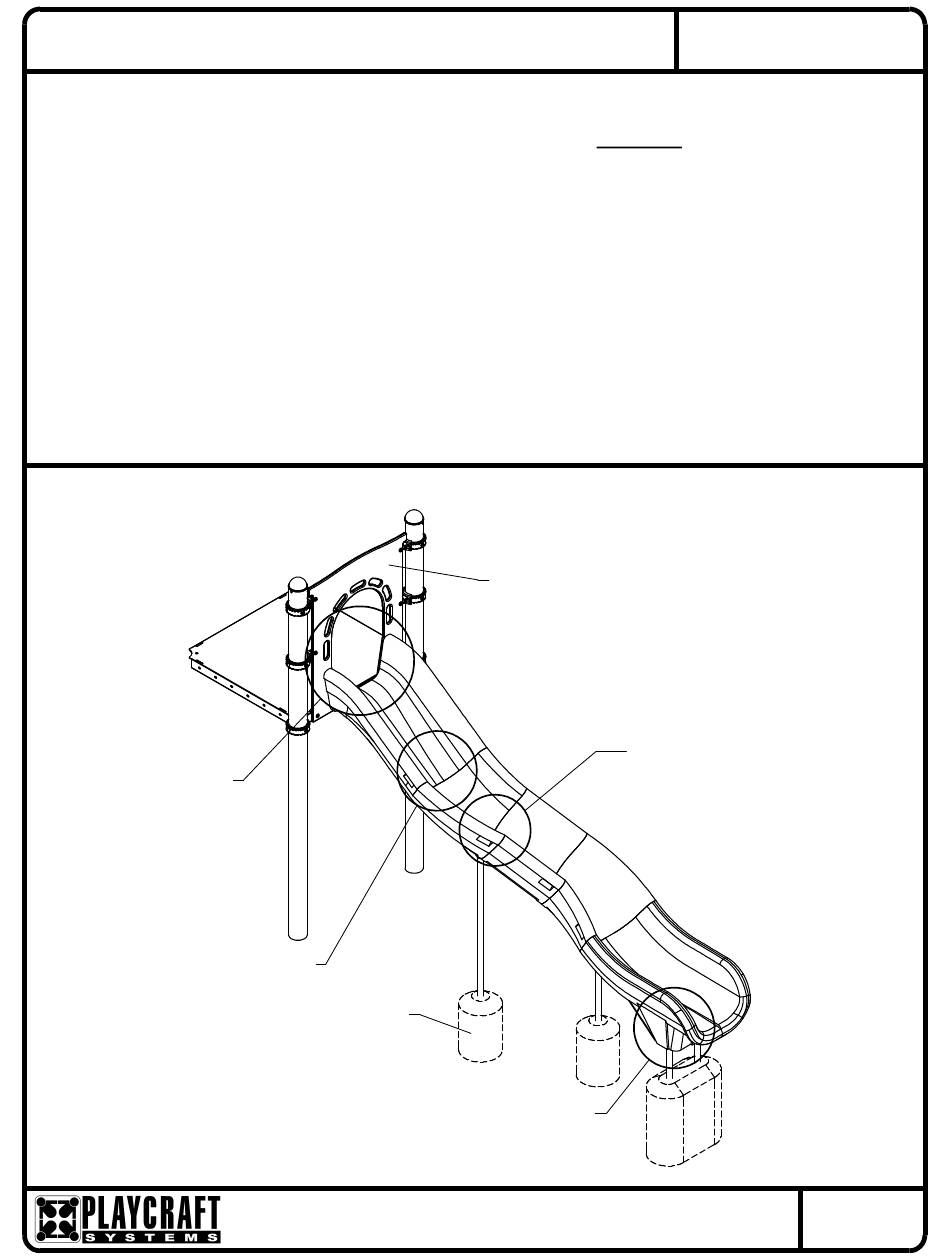

FIGURE 1
Twister Slide
Figures 1.1,
1.2 and 1.3
Figure 1.4
NOTE: Configuration shown is for example
only. Other configurations will vary slightly,
but does not affect the assembly.
®
) with all threaded hardware. Important: Liquid thread lock (prior to
See Footing Detail
Manufactured by Krauss Craft, Inc.
www.playcraftsystems.com
See Installation Manual Sections 1316
Twister Entry Panel, 1317 Triple Twister
Entry Panel or corresponding theme panel
assembly instructions.
Figures 1.5 and 1.6
Figure 1.7
For Customer Service Call
800.333.8519 (U.S.A.) or
541.955.9199 (International)
1710
Page 1 of 5
Rev F
9/17/2009
