Playcraft 1105 Installation Instructions

HALF DECK ASSEMBLY
INSTALLATION INSTRUCTIONS
IMPORTANT NOTES: Read First
(A) Use liquid thread lock (such as Loctite
to curing) helps to eliminate the common problem of "thread seizure" in stainless steel hardware by serving
as a lubricant during assembly.
(B) The top of the collars are located 7/8" [22mm] below the top of the deck. Refer to Installation Manual for
09 Collars installation instructions.
(C) An appropriate energy absorbing safety surface is required under and around all playground equipment.
Loose fill protective surfacing is shown only as an example for the purpose of this assembly instruction. Other
surfacing material may vary in thickness and/or compression depths. See free publication - The Handbook for
Public Playground Safety, Publication #325 at www.cpsc.gov for the surfacing appropriate for the fall height
of the equipment or consult your surfacing supply representative.
(D) All deck hieghts on your system's top view drawing are measured from the top of ground cover (finished
grade) to the top of the deck. Post location dimensions are on centers.
(F) Never allow the gap between decks to be between 3-1/2" [89mm] and 9" [229mm]. Deck fillers are
provided for gaps between decks with 6" [152mm] and 12" [305mm] rise increments.

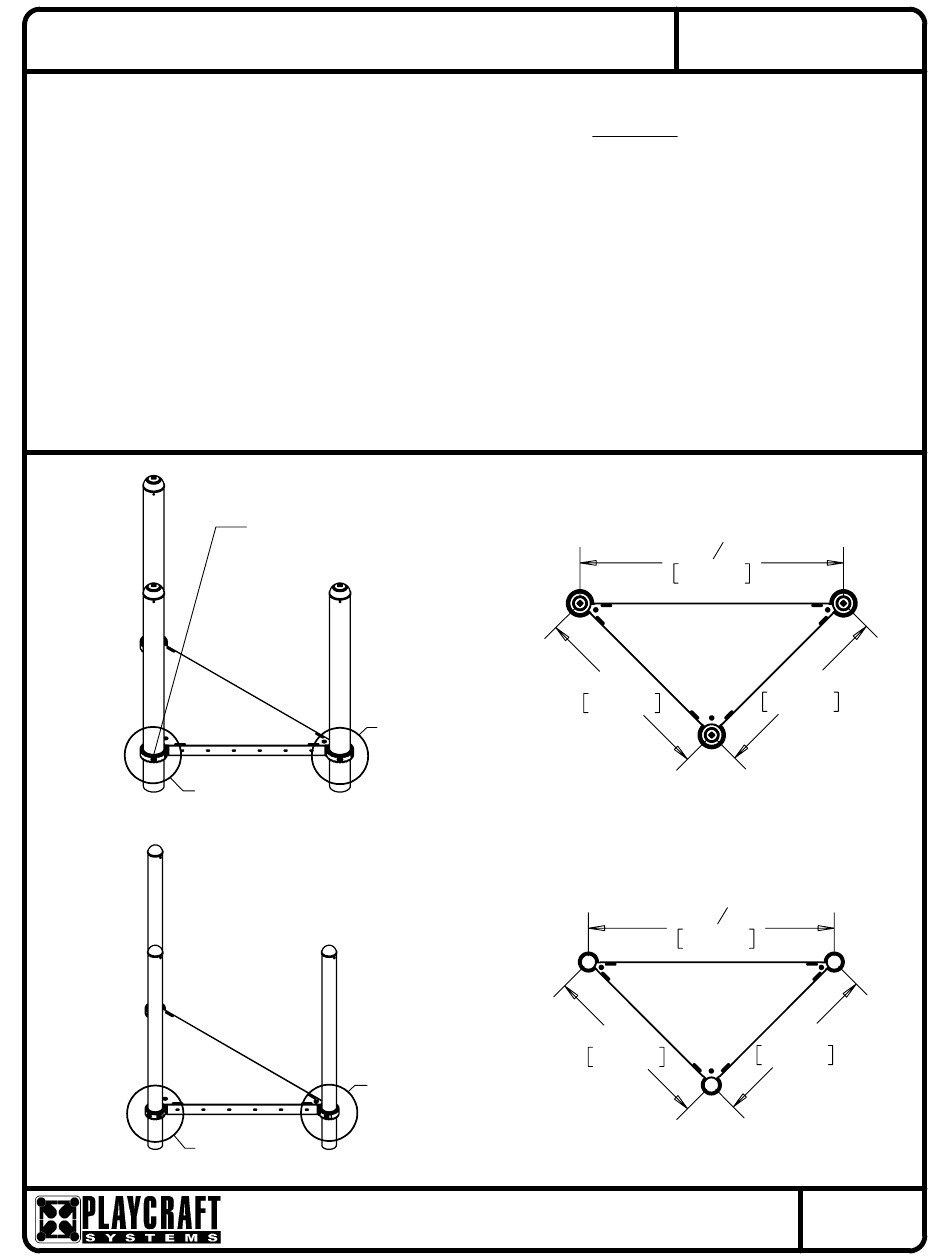

Figure 1.1
Figure 1.1
®
) with all threaded hardware. Important: Liquid thread lock (prior
See Installation Manual
Section 09 Collars
Figure 1.2
R5 ASSEMBLY
Figure 1.2
R3.5 ASSEMBLY
www.playcraftsystems.com
For Customer Service Call
800.333.8519 (U.S.A.) or 541.955.9199 (International)
Page 1 of 2
FIGURE 1
Half Deck Assembly
63 5 "
8
1616mm
45"
1143mm
1143mm
59 3 "
8
1509mm
42"
1067mm
1067mm
1105
45"
42"
Rev E
7/15/2019
