HALF HEX DECK 4-POST ASSEMBLY
INSTALLATION INSTRUCTIONS

IMPORTANT NOTES: Read First

(A) Use liquid thread lock (such as Loctite
to curing) helps to eliminate the common problem of "thread seizure" in stainless steel hardware by serving
as a lubricant during assembly.
(B) The top of the collars are located 7/8" [22mm] below the top of the deck. Refer to Installation Manual for
09 Collars installation instructions.
(C) An appropriate energy absorbing safety surface is required under and around all playground equipment.
Loose fill protective surfacing is shown only as an example for the purpose of this assembly instruction. Other
surfacing material may vary in thickness and/or compression depths. See free publication - The Handbook for
Public Playground Safety, Publication #325 at www.cpsc.gov for the surfacing appropriate for the fall height
of the equipment or consult your surfacing supply representative.
(D) All deck hieghts on your system's top view drawing are measured from the top of ground cover (finished
grade) to the top of the deck. Post location dimensions are on centers.
(F) Never allow the gap between decks to be between 3-1/2" [89mm] and 9" [229mm]. Deck fillers are
provided for gaps between decks with 6" [152mm] and 12" [305mm] rise increments.
See Installation Manual
Section 09 Collars
®
) with all threaded hardware. Important: Liquid thread lock (prior

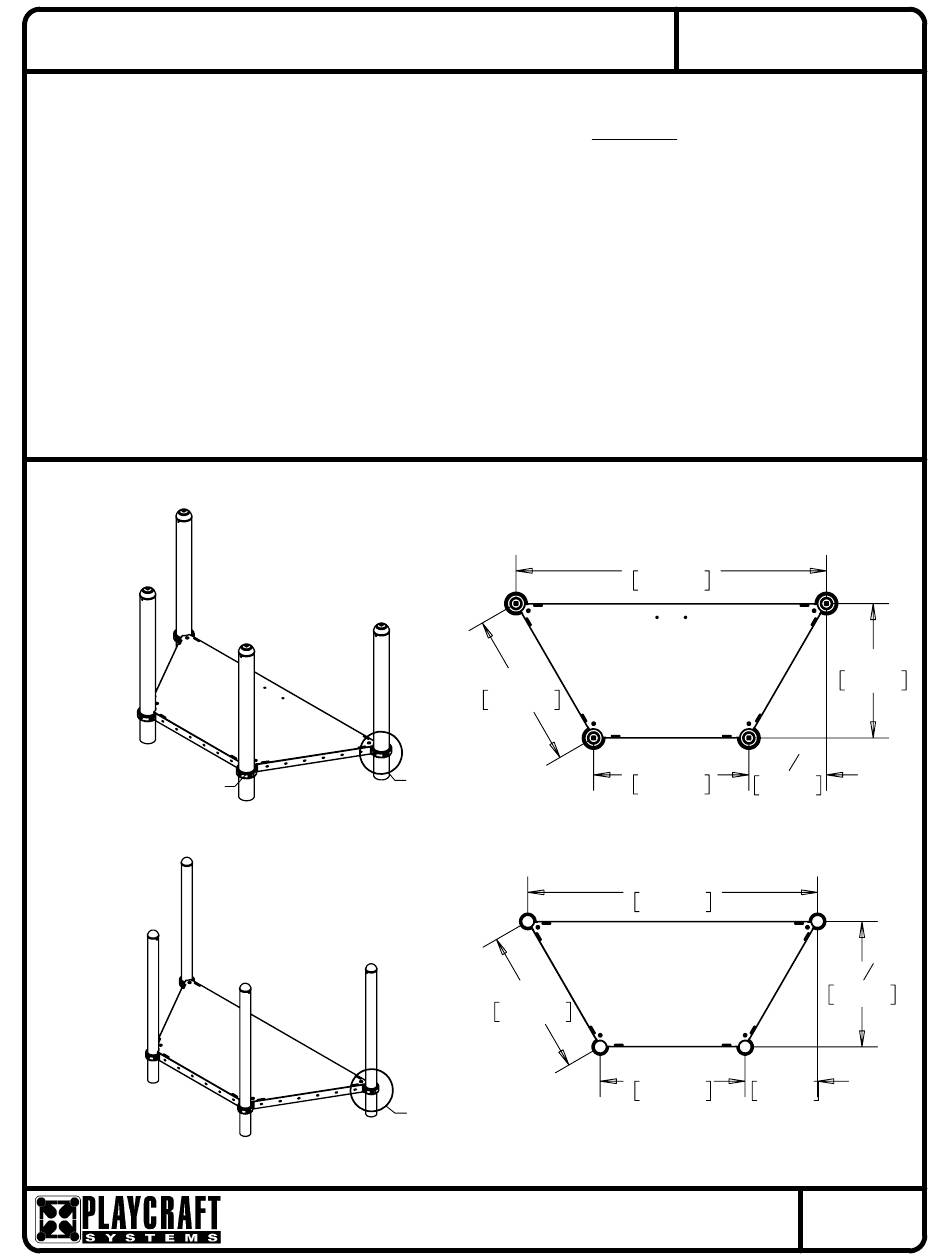

Figure 1.1
R5 ASSEMBLY
Figure 1.1
R3.5 ASSEMBLY
www.playcraftsystems.com
For Customer Service Call
800.333.8519 (U.S.A.) or 541.955.9199 (International)
Half Hex Deck 4-Post Assembly
90"
2286mm
45"
1143mm
45"
1143mm
84"
2134mm
42"
1067mm
42"
1067mm
1106
Page 1 of 2
FIGURE 1
39"
990mm
22 1 "
2
572mm
36 3 "
8
924mm
21"
533mm
Rev D
7/15/2019
