FARM SOUND PANEL INSERT R5
INSTALLATION INSTRUCTIONS
IMPORTANT NOTES: Read First
(A) Use liquid thread lock (such as Loctite
curing) helps to eliminate the common problem of "thread seizure" in stainless steel hardware by serving as a
lubricant during assembly.
(B) Refer to Installation Manual for R5-1601 Panel Type 1 installation instructions.
(C) Sound Box requires (3) C-Cell batteries included. Installation is required.
®
) with all threaded hardware. Important: Liquid thread lock (prior to
www.playcraftsystems.com
For Customer Service Call
800.333.8519 (U.S.A.) or 541.955.9199 (International)
R5-16042
Page 1 of 4
See Installation Manual
Section R5-1601 Panel Type 1

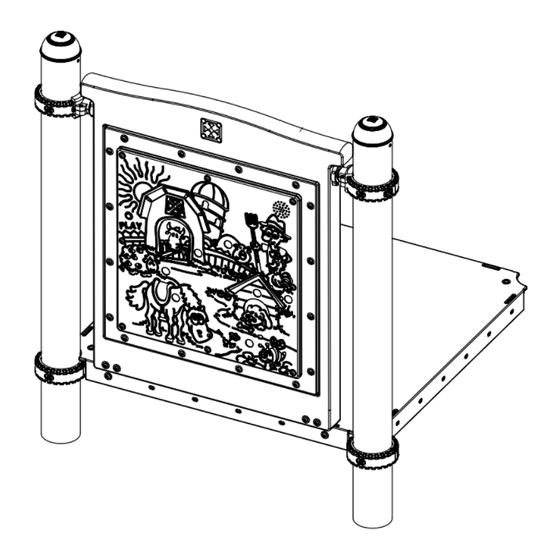

NOTE: Farm Sound
Panel Insert shown,
other configurations
will vary slightly but
does not affect
assembly.
Rev B
2/7/2019
Advertisement
Related Manuals for Playcraft Farm Sound Panel Insert R5
Summary of Contents for Playcraft Farm Sound Panel Insert R5
- Page 1 FARM SOUND PANEL INSERT R5 R5-16042 INSTALLATION INSTRUCTIONS Page 1 of 4 IMPORTANT NOTES: Read First ® (A) Use liquid thread lock (such as Loctite ) with all threaded hardware. Important: Liquid thread lock (prior to curing) helps to eliminate the common problem of "thread seizure" in stainless steel hardware by serving as a lubricant during assembly.
- Page 2 FARM SOUND PANEL INSERT R5 R5-16042 INSTALLATION INSTRUCTIONS Page 2 of 4 Step 1 FARM PANEL INSERT (Factory Assembled) Insert Square nuts provided into Electronic Farm Sound Panel Insert as shown in Figure 1. NOTE: Use hardware included with Battery Box. Do ®...
- Page 3 FARM SOUND PANEL INSERT R5 R5-16042 INSTALLATION INSTRUCTIONS Page 3 of 4 Step 4 (Factory Assembled) Attach Farm Sound Panel Insert to Roto Panel as shown in Figure 4. (See Note A) ROTO PANEL SQUARE FARM PANEL INSERT 3/8" x 1" O.D.
- Page 4 FARM SOUND PANEL INSERT R5 R5-16042 INSTALLATION INSTRUCTIONS Page 4 of 4 Assembled Parts List Specifications SOUND PANEL BACKING, COVER & INSERT: FARM SOUND PANEL S-16042-R5 Shall be made from high density 3/4" sheet plastic Part # DESCRIPTION QTY. specially formulated for optimum UV stability and color retention.
