Playcraft 36" Single Slide 1701-3 Installation Instructions

Advertisement

Quick Links

36" SINGLE SLIDE
IMPORTANT NOTES: Read First
(A) Use liquid thread lock (such as Loctite
curing) helps to eliminate the common problem of "thread seizure" in stainless steel hardware by serving as a
lubricant during assembly.
(B) Do not pour concrete until the equipment is completely assembled, leveled and plumbed. Concrete must be
allowed to cure completely before using the equipment (at least 72 hours).
(C) Refer to Installation Manual for R5-1304 Slide Sit Down Wall or R3.5-1304 Sit Down Wall assembly
instructions.
(D) Use appropriate compliant protective surfacing and adjust footing depths accordingly. See free publication -
The Handbook for Public Playground Safety, Publication #325 at www.CPSC.gov for the surfacing appropriate
for the fall height of the equipment or consult you surfacing supply representative.
(E) Slide exit height shall be no greater than 11". Exit region must also have a downward slope of 0 to 4° .
®
) with all threaded hardware. Important: Liquid thread lock (prior to
Figure 1.1
See Footing Detail
Manufactured by Krauss Craft, Inc.
www.playcraftsystems.com
36" Single Slide
See Installation Manual Section
R5-1304 Slide Sit Down Wall or
R3.5-1304 Slide Sit Down Wall
Figure 1.2
NOTE: R5 Configuration shown.
R3.5 will vary slightly, but does
not affect the assembly.
For Customer Service Call
800.333.8519 (U.S.A.) or
541.955.9199 (International)
1701-3
Page 1 of 4

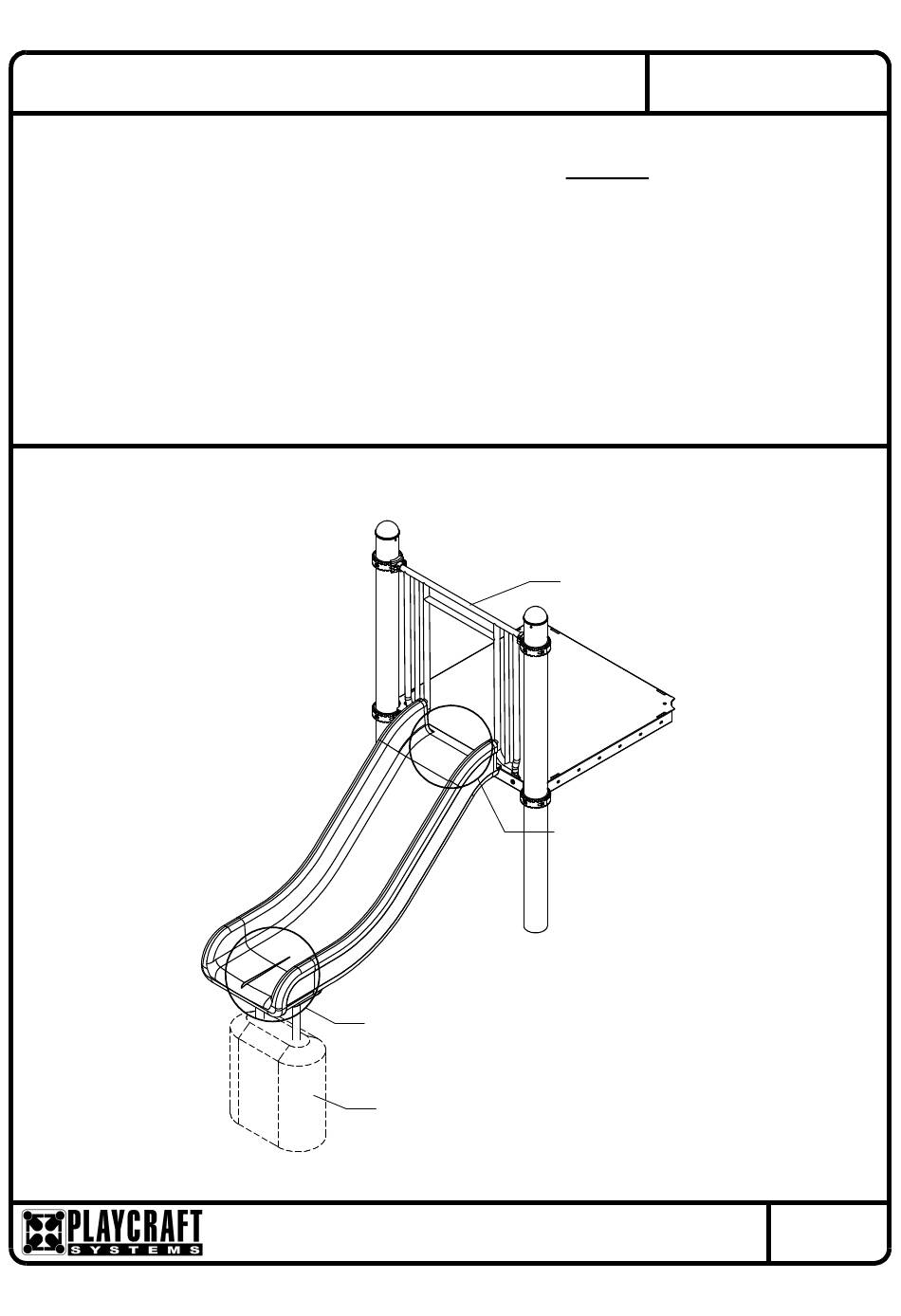

FIGURE 1
Rev D
7/18/2009
