INSTALLATION GUIDE
DEVIreg™ Room
Description
9. Fasten the thermostat's power
supply to the wall terminal box
using screws in minimum 2 of
the designated holes on the
power supply unit.
Notice: place the thermostat
according to the
10. Attach the frame and the Top
frame to the thermostat. After
that attach the thermostat to
the Power supply unit by a
softly press until all parts rmly
connected.
11. Carefully attach the thermostat
to the Power supply – take care
that the connector pins are
not bent.
12. After electrical installation is
completed, turn on the all-pole
disconnect (fuse).
- arrow

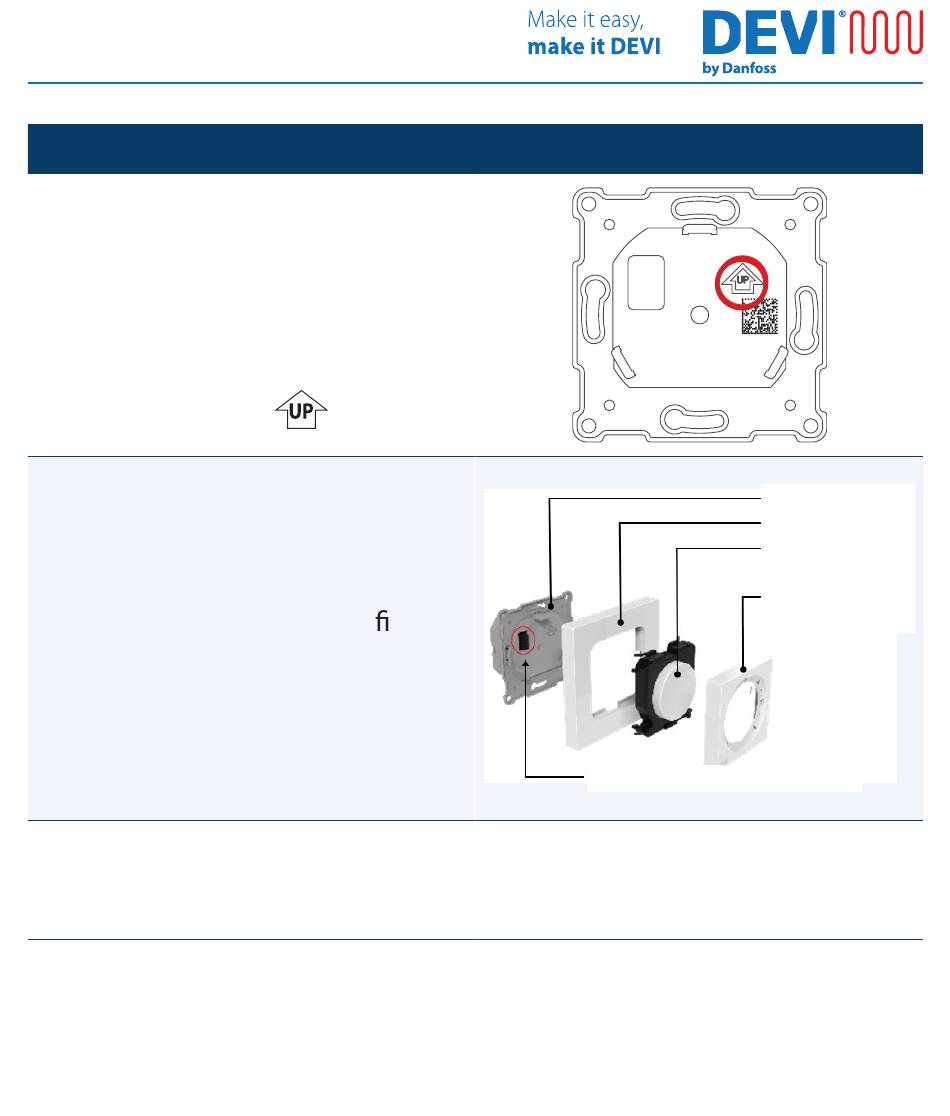

Illustration
Switch
Frame
Thermostat
(unit)
Top frame
(scale)
Connection socket / Pin
