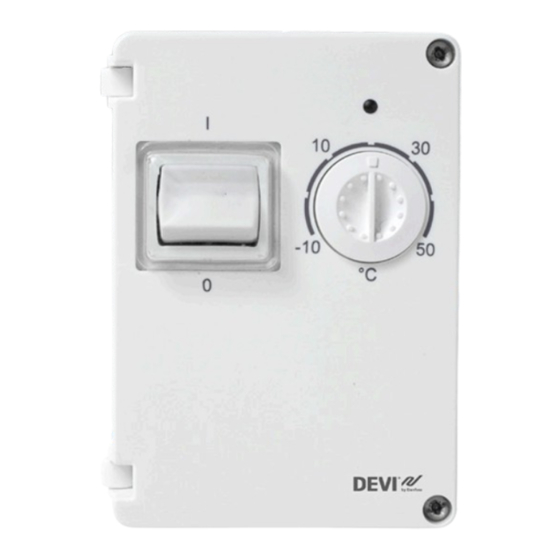

- Page 1 Installation Guide DEVIreg™ 610 Electronic Thermostat www.DEVI.com...
- Page 2 DEVIreg™ 610 Installation Guide...
-
Page 3: Table Of Contents
DEVIreg™ 610 Table of Contents Introduction ..... . . Technical Specifications ... . Safety Instructions . -
Page 4: Technical Specifications
DEVIreg™ 610 Technical Specifications -30°C to +50°C 220-240V~, 50Hz Standby power consumption Max. 0,93W Relay: Resistive load Max 10A / 2300W @ 230V Inductive load cos φ= 0.3 max 1A Sensing units NTC 15kOhm at 25°C Sensing values: 0 °C 42 kOhm 25 °C 15 kOhm... -
Page 5: Safety Instructions
DEVIreg™ 610 Dimensions 100 x 69,5 x 45 mm Weight 165 g The product complies with the EN/IEC Standard “Automatic electrical controls for household and similar use”: • EN/IEC 60730-1 (general) • EN/IEC 60730-2-9 (thermostat) Safety Instructions Make sure the mains supply to the thermostat is turned off before installation. -
Page 6: Mounting Instructions
DEVIreg™ 610 Mounting Instructions Please observe the following placement guidelines: • The thermostat can be placed both indoors and outdoors. • Place the thermostat on a wall, pole, steel/wooden plate or pipe. In wet rooms, place the thermostat according to local regulation on IP classes. - Page 7 DEVIreg™ 610 Follow the steps below to mount the thermostat. Open the thermostat: • Set adjustment button to minimum temperature. • Loosen the 2 screws and open the front cover. Installation Guide...
- Page 8 DEVIreg™ 610 Fasten the thermostat: • Drive the screws through the holes in the bottom corners of the thermostat. • Seal the holes with the enclosed screw stopper to maintain the density. Connect the thermostat according to the connection diagram. IP44 -10T50 D610...
- Page 9 DEVIreg™ 610 The screen of the heating cable must be connected to the earth conductor of the power supply cable by using a separate connector. Reinstall the front cover. Ensure that the adjustment button can be adjusted within full temperature range, i.e. from -10 °C to +50 °C.
-
Page 10: Warranty
The DEVIwarranty shall not extend to products which have not been paid in full. Danfoss will, at all times, provide a rapid and effective response to all complaints and inquiries from our customers. - Page 11 DEVIreg™ 610 Installation Guide...
- Page 12 DEVIreg™ 610 Installation Guide...
-
Page 13: Disposal Instruction
DEVIreg™ 610 Disposal Instruction Installation Guide... - Page 14 DEVIreg™ 610 Installation Guide...
- Page 15 Danfoss A/S Nordborgvej 81 6430 Nordborg, Syddanmark Denmark 08095435 & AQ057986478203en-020306 © Danfoss | 2023.03...
