Summary of Contents for Danfoss DEVIreg 130

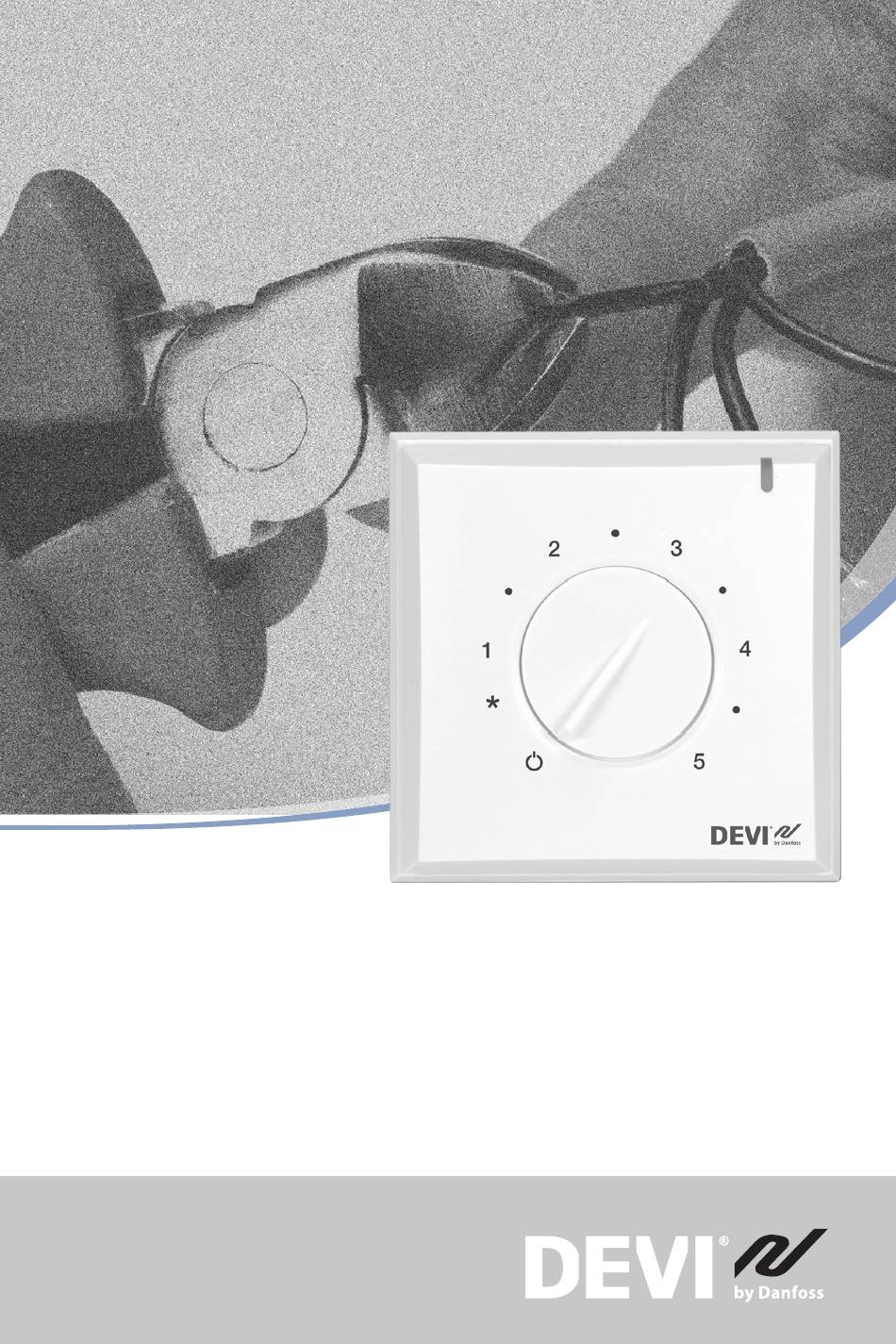

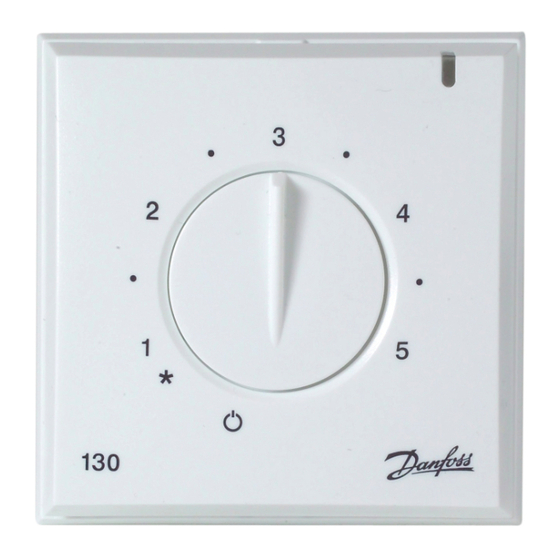

- Page 1 Installation Guide DEVIreg™ 130 Electronic Thermostat www.DEVI.com...
- Page 2 DEVIreg™ 130 Installation Guide...
-
Page 3: Table Of Contents
DEVIreg™ 130 Table of Contents Introduction ..... . . Technical Specifications ... . Safety Instructions . -
Page 4: Technical Specifications
DEVIreg™ 130 Technical Specifications Operation voltage 220-240V~, 50Hz Power consumption Max 5W Relay: Resistive load Max 16A / 3680W @ 230V Inductive load cos φ= 0.3 max 1A Sensing units NTC 15 kOhm at 25°C Sensing values: 0 °C 42 kOhm 25 °C 15 kOhm 50 °C... -
Page 5: Safety Instructions
DEVIreg™ 130 Dimensions 82 x 82 x 36 mm Weight 90 g The product complies with the EN/IEC Standard “Automatic electrical controls for household and similar use”: • EN/IEC 60730-1 (general) • EN/IEC 60730-2-9 (thermostat) Safety Instructions Make sure the mains supply to the thermostat is turned off before installation. -
Page 6: Mounting Instructions
DEVIreg™ 130 • Always connect the thermostat to continuous power supply. • Do not expose the thermostat to moisture, water, dust, and excessive heat. Mounting Instructions Please observe the following placement guidelines: Place the thermostat at a suitable height on the wall (typically 80-170cm.). - Page 7 DEVIreg™ 130 • Place the floor sensor in a conduit in an appropriate place where it is not exposed to sunlight or draft from door openings. • Equally distant and >2cm from two heating cables. • The conduit should be flush with the floor surface - countersink the conduit if necessary.
- Page 8 DEVIreg™ 130 Follow the steps below to mount the thermostat: Open the thermostat: • Lift off the button using a small screwdriver. • Loosen the screw which holds the front. • Push down the release tab at the top of the thermostat using a flat object while slowly pulling off the front cover.
- Page 9 DEVIreg™ 130 Fasten the thermostat directly to the wall by driving the screws through the holes in each side of the thermostat. = Screw holes for fastening the thermostat. Connect the thermostat according to the connection diagram. LOAD LOAD Max.Load Mains 16 (1) A...
-
Page 10: Settings
DEVIreg™ 130 Install the front cover and button in the reverse order of disassembly. Turn on the power supply. Settings Temperature Settings How to change the minimum and maximum floor temperatures Lift off the adjustment button using a thin screwdriver. - Page 11 DEVIreg™ 130 • By default, the maximum floor temperature is set to 35 °C. • Always use a floor sensor or a room + floor sensor combination to control floor heating. Without a floor sensor, the temperature control may be less accurate and you risk overheating the floor.
-
Page 12: Warranty
All work will be invoiced in full if Danfoss is required to inspect or repair faults that have arisen as a result of any of the above. The DEVIwarranty shall not extend to products which have not been paid in full. - Page 13 DEVIreg™ 130 Installation Guide...
-
Page 14: Disposal Instruction
DEVIreg™ 130 Disposal Instruction Installation Guide... - Page 15 Danfoss A/S Nordborgvej 81 6430 Nordborg, Syddanmark Denmark 08095775 & AQ059486460986en-020202 © Danfoss | 05.2022...
