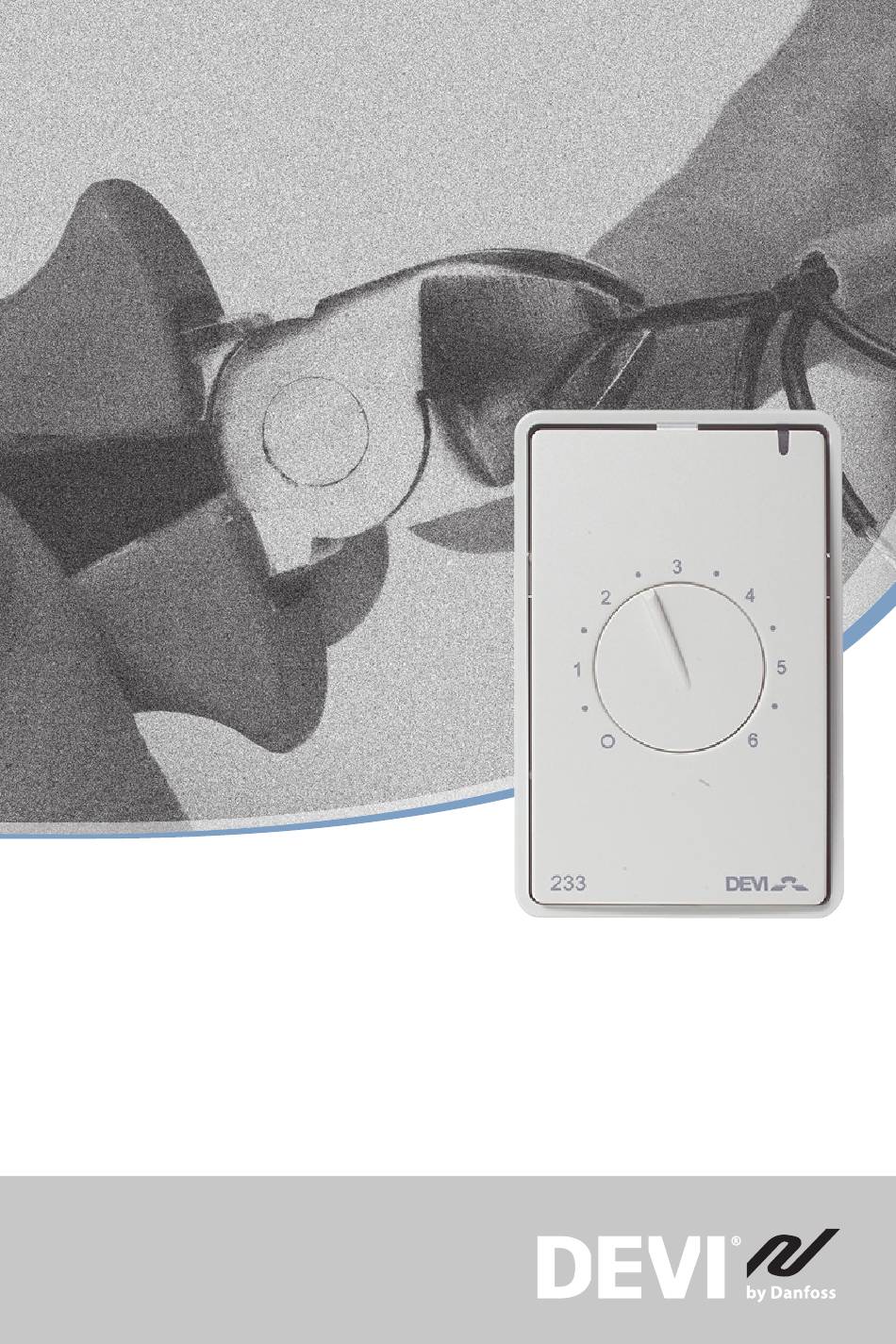

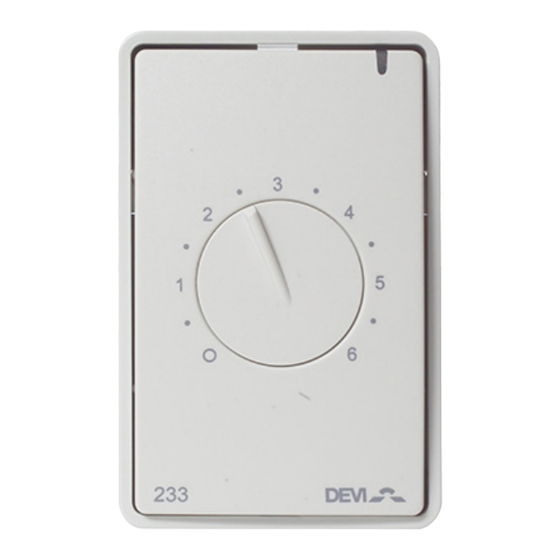

- Page 1 Installation Guide DEVIreg™ 233 Electronic Thermostat www.DEVI.com...
-
Page 2: Table Of Contents
DEVIreg™ 233 Table of Contents Introduction � � � � � � � � � � � � � � � � � � � � � 2 Technical Specifications ... 3 Safety Instructions . -
Page 3: Technical Specifications
DEVIreg™ 233 1�1 Technical Specifications Operation voltage 220-240 V~, 50 Hz Standby power consumption Max 1.7 W Relay: Resistive load Max 13 A / 2990 W @ 230 V Inductive load cos φ= 0.3 max 1 A Sensing units NTC 15 kOhm at 25 °C Sensing values: 0 °C 42 kOhm... -
Page 4: Safety Instructions
DEVIreg™ 233 Dimensions 71x 44 x 31mm (in-wall depth: 20mm) Weight 77 g The product complies with the EN/IEC Standard “Automatic electrical controls for household and similar use”: • EN/IEC 60730-1 (general) • EN/IEC 60730-2-9 (thermostat) 1�2 Safety Instructions Make sure the mains supply to the thermostat is turned off before installation. -
Page 5: Mounting Instructions
DEVIreg™ 233 • Do not expose the thermostat to moisture, water, dust, and excessive heat. Mounting Instructions Please observe the following placement guidelines: Place the thermostat at a suitable height on the wall. In wet rooms, place the thermostat according to local regulation on IP classes. - Page 6 • Loosen the two screws and carefully detach the unit. 2. Connect the thermostat according to the connection diagram. Danfoss A/S Ulvehavevej 61 IP41 7100 Vejle 0T40 Denmark Max.
-
Page 7: Settings
DEVIreg™ 233 3. Mount and reassemble the thermostat. The thermo- stat is to be installed in a flush-mounting box or a surface-mounting box for the FUGA design. • Put the unit back in place and tighten the screws in each side to fasten the thermostat. •... - Page 8 DEVIreg™ 233 How to change the minimum and maximum floor temperatures 1. Remove the front cover. 2. Move the adjustment sledg- es to the desired positions. 3. Put the front cover back in place. Installation Guide...
-
Page 9: Warranty
All work will be invoiced in full if Danfoss is required to inspect or repair faults that have arisen as a result of any of the above. The DEVIwarranty shall not extend to products which have not been paid in full. - Page 10 DEVIreg™ 233 Installation Guide...
-
Page 11: Disposal Instruction
DEVIreg™ 233 Disposal Instruction Danfoss A/S Nordborgvej 81 6430 Nordborg, Syddanmark Denmark 08091349 & AQ069786451637en-010204 Produced by Danfoss © 03/2023...
