by another time t with the trailing edge.
I

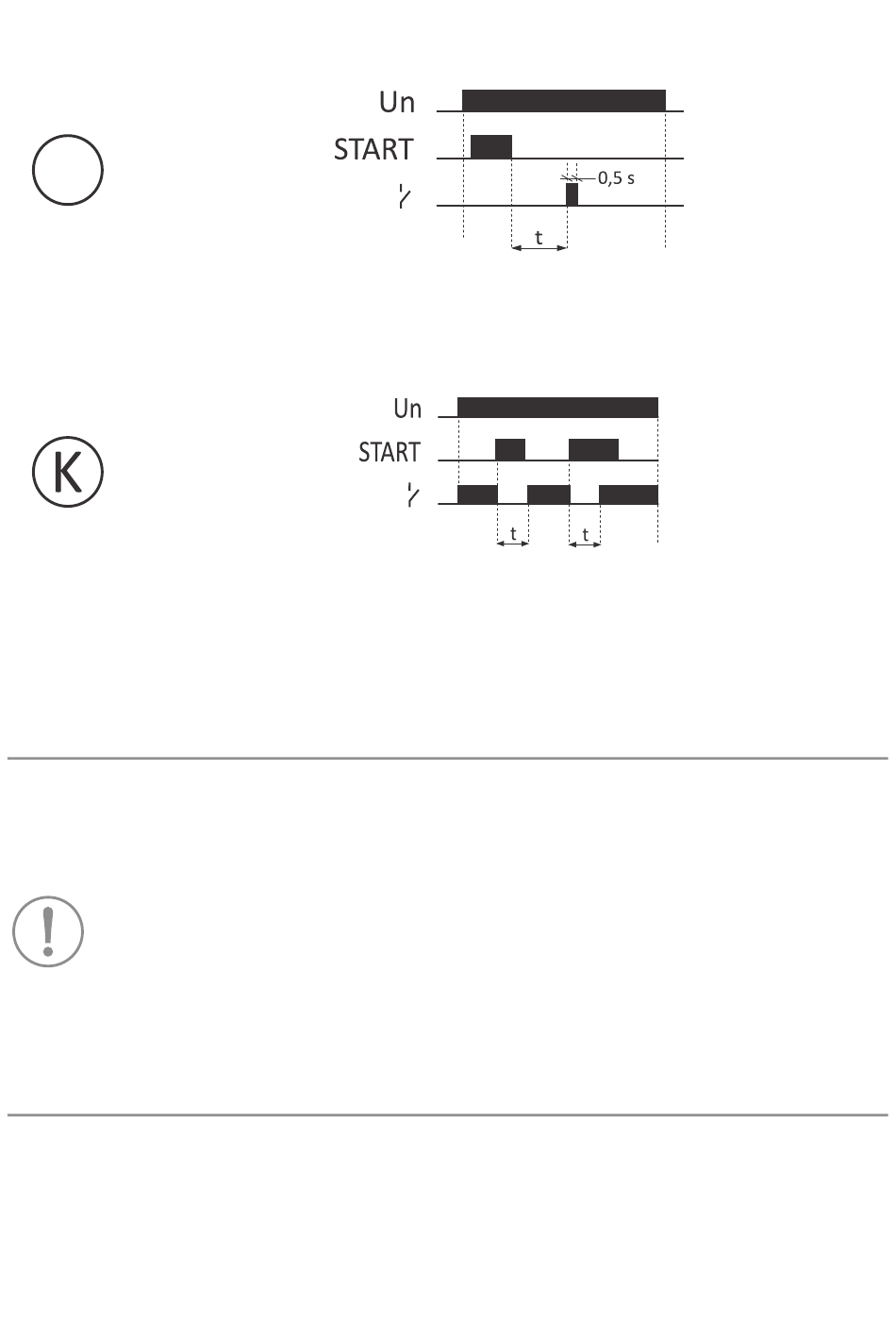

Generating a single pulse 0.5 s after time t with the triggered
trailing edge of the ����� signal.
Switching off the relay for a specific time t with the rising edge of
the ����� signal. During the time measurement, the system does
not react to ����� signal.
When the RESET voltage is applied during the execution
of the given function, it causes:
» for functions A, B, C, D, F – the implementation of the
operating mode from the beginning;
» for functions F, G, H, I – the return of the relay to the
initial state and waiting for the ����� signal;
» for function K – permanent switching on of the relay
contact in position 11-12.
