Summary of Contents for WAGO 751-5701

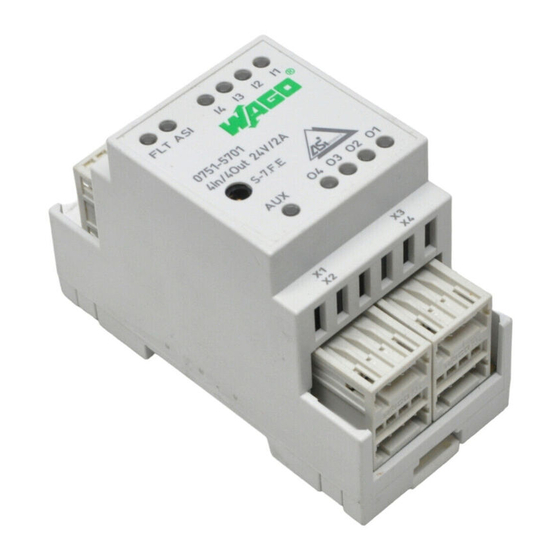

- Page 1 AS-Interface Components IP20 AS-Interface Module 4IN/4OUT 24V/2A Single 751-5701 Manual Version 1.1.0...
- Page 2 • General Copyright © 2007 by WAGO Kontakttechnik GmbH & Co. KG All rights reserved. WAGO Kontakttechnik GmbH & Co. KG Hansastraße 27 D-32423 Minden Phone: +49 (0) 571/8 87 – 0 Fax: +49 (0) 571/8 87 – 1 69 E-Mail: info@wago.com...
-
Page 3: Table Of Contents
Number Notation ..................6 Safety Notes ..................... 7 Scope ......................7 2 AS-Interface Components ................8 AS-Interface Module IP20 ............... 8 2.1.1 751-5701 [AS-Interface Module 4IN/4OUT 24V/2A Single] .... 8 2.1.1.1 View....................8 2.1.1.2 Description..................8 2.1.1.3 Connectors ..................9 2.1.1.4... - Page 4 Fig. 2.1.1-10: Derating Output Current ..........16 gqxxx13d List of Tables Tab. 2.1.1-1: AS-Interface and AUX Connectors ..........9 Tab. 2.1.1-2: Sensor and Actuator Connectors..........10 Tab. 2.1.1-3: Display Elements ............... 11 Tab. 2.1.1-4: Technical Data ................13 WAGO-I/O-SYSTEM 751 AS-Interface Components IP20...
-
Page 5: Important Comments
WAGO Kontakttechnik GmbH & Co. KG declines all liability resulting from improper action and damage to WAGO products and third party products due to non-observance of the information contained in this manual. -
Page 6: Symbols
More information References on additional literature, manuals, data sheets and INTERNET pages 1.3 Number Notation Number Code Example Note Decimal normal notation Hexadecimal 0x64 C notation Binary '100' Within ', '0110.0100' Nibble separated with dots WAGO-I/O-SYSTEM 751 AS-Interface Components IP20... -
Page 7: Safety Notes
Do not use any contact spray. The spray may impair the functioning of the contact area. The AS-Interface Slaves IP20 from the WAGO-I/O-SYSTEM 751 are open components. They must only be assembled in housings, cabinets or in electrical operation rooms. Access must only be given via a key or tool to authorized qualified personnel. -
Page 8: As-Interface Components
The AS-Interface module 751-5201 provides 4 digital 24 V inputs and 4 digital 24 V / 2 A outputs. Sensors, actuators, AS-Interface power supply and actuator supply are connected using connectors from the WAGO Multi Connection System Mini. WAGO-I/O-SYSTEM 751 AS-Interface Components IP20... -
Page 9: Connectors
751-5701 [AS-Interface Module 4IN/4OUT 24V/2A Single] • 9 Connectors LEDs indicate the status of inputs and outputs, the AS-Interface and actuator supply as well as a short circuit or overload condition. 2.1.1.3 Connectors 2.1.1.3.1 AS-Interface Cable and AUX Cable The connections for AS-Interface cable and AUX cable are 4-pole male connectors for use with female connectors from the Multi Connection System Mini. -
Page 10: Tab. 2.1.1-2: Sensor And Actuator Connectors
10 • 751-5701 [AS-Interface Module 4IN/4OUT 24V/2A Single] Connectors Tab. 2.1.1-2: Sensor and Actuator Connectors Sensor Connectors Connector Function X5 X6 X7 X8 Sensor supply L+ X5 X6 X7 X8 Sensor supply L- Sensor signal Sensor signal Fig. 2.1.1-3: Sensor... -
Page 11: Display Elements
(Open-Load- Detection) AS-Interface supply error AS-Interface green supply AS-Interface supply OK Actuator supply error Actuator green supply Actuator supply OK 2.1.1.5 Operating Elements The AS-Interface module 751-5701 has no operating elements. WAGO-I/O-SYSTEM 751 AS-Interface Components IP20... -
Page 12: Schematic Diagram
12 • 751-5701 [AS-Interface Module 4IN/4OUT 24V/2A Single] Schematic Diagram 2.1.1.6 Schematic Diagram Sensor + IN1/3 IN - IN - Sensor for 3-conductor sensors AS-i ASI+ ASI+ IN2/4 ASI- IN - IN - ASI- AS-i - AUX + NTERFACE AS-i +... -
Page 13: Technical Data
751-5701 [AS-Interface Module 4IN/4OUT 24V/2A Single] • 13 Technical Data 2.1.1.7 Technical Data Tab. 2.1.1-4: Technical Data Inputs Number of inputs Sensor supply via AS-Interface control 200 mA, short-circuit-proof, voltage Derating about 65 °C (see figure below) max. Current limitation for all inputs 200 mA tot. - Page 14 14 • 751-5701 [AS-Interface Module 4IN/4OUT 24V/2A Single] Technical Data Tab. 2.1.1-4: Technical Data AS-Interface Operating voltage (AS-I) 26,5 V ... 31,6 V Current consumption 35 mA type Current consumption 50 mA (start-up), max. 280 mA incl. sensor supply AS-Interface version AS-Interface profile S-7.F.E...
-
Page 15: Fig. 2.1.1-7: Characteristic Input Curve
751-5701 [AS-Interface Module 4IN/4OUT 24V/2A Single] • 15 Technical Data Tab. 2.1.1-4: Technical Data Accessories Multi Connection System Mini female 734-103 connector, 3-pole Multi Connection System Mini female 734-104 connector, 4-pole Marker strips, self-adhesive 709-179 height of marker strips 3 mm, printing 1 –... -
Page 16: Fig. 2.1.1-9: Derating Sensor Supply
16 • 751-5701 [AS-Interface Module 4IN/4OUT 24V/2A Single] Technical Data Tab. 2.1.1-4: Technical Data Derating 80 °C Umgebungstemperatur Fig. 2.1.1-9: Derating Sensor Supply gqxxx14d 80 °C Umgebungstemperatur Fig. 2.1.1-10: Derating Output Current gqxxx13d The derating curves are based on the vertical mounting position of the modules on a DIN rail. -
Page 17: Assembly
The IP20 AS-Interface Slaves must only be used in enclosures, cabinets or electrical service rooms. Only authorized qualified personnel are allowed to access via key or tool. Depending on the type of slave, 3- or 4-pole WAGO female connectors of ® Series 734 (CAGE CLAMP connection) for the connection of AS-Interface, AUX, sensors or actuators are included in the delivery. - Page 18 WAGO Kontakttechnik GmbH & Co. KG Postfach 2880 • D-32385 Minden Hansastraße 27 • D-32423 Minden Phone: 05 71/8 87 – 0 Fax: 05 71/8 87 – 1 69 E-Mail: info@wago.com Internet: http://www.wago.com...
