SUMAKE
Specification:
Free Speed
Sanding Pad
Air Consumption
Overall Length
Air Inlet (PT)
Air Hose (I.D.)
Air Pressure
Net Weight
SUMAKE INDUSTRIAL CO., LTD
4F,NO.351,Yangguang St.,Neihu District TAIPEI, TAIWAN, ZIP:114-91
PNEUMATIC TOOLS

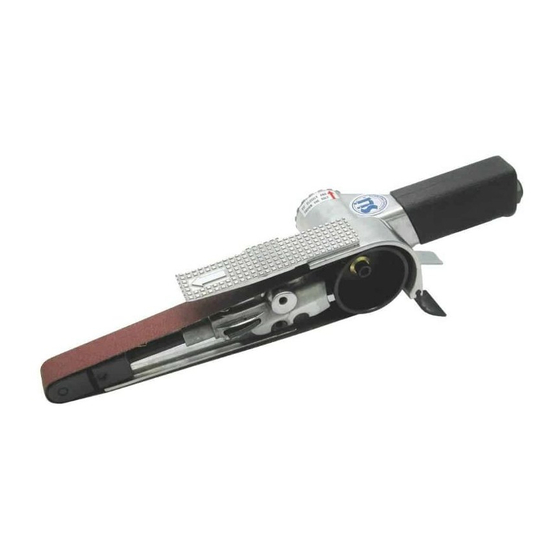

Air Belt Sander (20x520mm)
16,000 r/min
7/8 x 20"
(20 x 520 mm)
17 CFM (480 L/min)
13-1/3" (340 mm)
1/4" (6.35 mm)
3/8" (10 mm)
90 psi (6.3 bar)
2.6 lbs (1.2 kg)
ST-7710
Noise and Vibration:
Vibration
EN ISO 28927-3
No Load:
4.38 m/s²
Uncertainty
K= 1.5 m/s
Noise
EN ISO 15744
Sound Pressure Level
load: 87.8 dB(A)
Sound power level
load: 98.8 dB(A)
Uncertainty
K= 3dB
²
Remark
Please always
wear ear
protector at
environment
noise level > 80
dB(A) due to
risk of impaired
hearing!
ST-7710-S-2309E-PZF
Advertisement
Table of Contents
Related Manuals for Sumake ST-7710
Summary of Contents for Sumake ST-7710
- Page 1 Air Hose (I.D.) 3/8” (10 mm) risk of impaired Uncertainty Uncertainty Air Pressure 90 psi (6.3 bar) hearing! K= 1.5 m/s K= 3dB ² Net Weight 2.6 lbs (1.2 kg) SUMAKE INDUSTRIAL CO., LTD 4F,NO.351,Yangguang St.,Neihu District TAIPEI, TAIWAN, ZIP:114-91 ST-7710-S-2309E-PZF...
- Page 2 DECLARATION OF CONFORMITY SUMAKE INDUSTRIAL CO., LTD. 4F, No. 351, Yangguang St., Neihu District, Taipei City, Taiwan declare in sole responsibility that the equipment Equipment： AIR BELT SANDER (20x520mm) Model/ Serial No.：ST-7710 to which this declaration applies, complies with these normative documents: Machinery Directive: 2006/42/EC ...
- Page 3 Trigger set has other objects stuck on it or the spring Disassemble and repair bounce back correctly is broken, deformed or rusty Motor keeps running Trigger function normally Trigger O-ring worn out or valve set damaged or Disassemble, repair and replace parts broken ST-7710-I-1904C-PZ...
- Page 4 ST-7710 AIR BELT SANDER PARTS LIST Parts No. Description Q'ty Parts No. Description Q'ty 7710-01N Idle Pulley Bracket Sub Assy 7710-24 Ball Bearing 626ZZ 7710-02-1 Idle Pulley Set (2N,2E,43) 7710-25 End Plate A 7710-02N Idle Pulley 7710-26 Cylinder 7710-02E Ball Bearing 686zz...
