SUMAKE

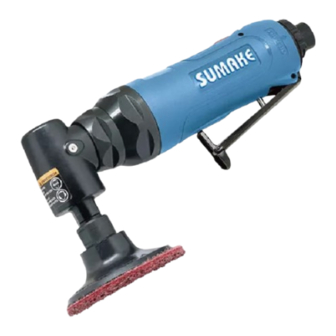

W/ Spindle Lock & 2" Roloc Pad
Specification:
Free Speed
Pad Size
Spindle
Motor
Air Consumption
Overall Length
Air Inlet (PT)
Air Hose (I.D.)
Air Pressure
Net Weight
SUMAKE INDUSTRIAL CO., LTD
4F,NO.351,Yangguang St.,Neihu District TAIPEI, TAIWAN, ZIP:114-91
PNEUMATIC TOOLS
ST-AS15N2R-S
18,000 r/min
2" (50 mm)
1/4"-20T
0.8HP
10 CFM (283 L/min)
8" (202 mm)
1/4" (6.35 mm)
3/8" (10 mm)
90 psi (6.3 bar)
2.2 lbs (1.0 kg)
Noise and Vibration:
Vibration
EN ISO 28927-3
Sound Pressure Level
No-Load:
1.13 m/s²
Uncertainty
K= 1.5 m/s
²
Noise
EN ISO 15744
Please always
No load: 86 dB(A)
Sound power level
environment
No load: 97 dB(A)
noise level > 80
dB(A) due to
risk of impaired
Uncertainty
K= 3dB
ST-AS15N2R-S-S-2306A-D5F
Remark
wear ear
protector at
hearing!
Advertisement
Table of Contents
Related Manuals for Sumake ST-AS15N2R-S
Summary of Contents for Sumake ST-AS15N2R-S
- Page 1 Air Hose (I.D.) 3/8” (10 mm) risk of impaired Uncertainty Uncertainty Air Pressure 90 psi (6.3 bar) hearing! K= 1.5 m/s K= 3dB ² Net Weight 2.2 lbs (1.0 kg) SUMAKE INDUSTRIAL CO., LTD 4F,NO.351,Yangguang St.,Neihu District TAIPEI, TAIWAN, ZIP:114-91 ST-AS15N2R-S-S-2306A-D5F...
- Page 2 DECLARATION OF CONFORMITY SUMAKE INDUSTRIAL CO., LTD. 4F, No. 351, Yangguang St., Neihu District, Taipei City, Taiwan declare in sole responsibility that the equipment Equipment： AIR ANGLE SANDER W/ SPINDLE LOCK & 2" ROLOC PAD Model/ Serial No.： ST-AS15N2R-S to which this declaration applies, complies with these normative documents: ...
- Page 3 So, install an air filter and on oiler between the part number, name and quantity. To operate this tool, just push the lever Sumake is a manufacturer and exporter of air compressor and the tool. Use a 3 HP or larger toward the tool itself. The tool continuously Warning tools since established.
- Page 4 ST-AS15N AIR ANGLE SANDER PARTS LIST Parts No. Description Q'ty Parts No. Description Q'ty AS15N2H-01 2" Hook Pad AS15-22 Rotor AS15N3H-01 3" Hook Pad AS15-23 Cylinder AS15N2R-01 2" Roloc Pad AS15-24 Rear End Plate AS15N3R-01 3" Roloc Pad AS15-25 Bearing AS15-26S Housing Ass'y [Incl.
- Page 5 SANDER Original instructions SUMAKE Industrial Co. Ltd.
- Page 6 The tool has been manufactured in conformity with the instruction of EU machine directive. The EU mark will be considered void in the event of inexpert repairs, the use of non-original parts and in case of non-observance of the safety instructions in the user’s manual. Possible direct or indirect consequential damages are not the responsibility of SUMAKE Industrial co., Ltd. General safety rules: Watch the tool at all times when in use.
- Page 7 13. Always use dust extraction or suppression systems which are suitable for the material being processed. Safety precautions for repetitive motions hazards 1. When using a sander to perform work-related activities, the operator can experience discomfort in the hands, arms, shoulders, neck or other parts of the body.
- Page 8 Specific safety instructions Warnings shall be given about any specific or unusual hazards associated with the use of the sander. Such warnings shall indicate the nature of the hazard, the risk of injury and the avoidance action to be taken. General preparation and connection: Before connecting the air hose, apply 4 to 5 drops of SAE#10-20 spindle oil at the air inlet.
