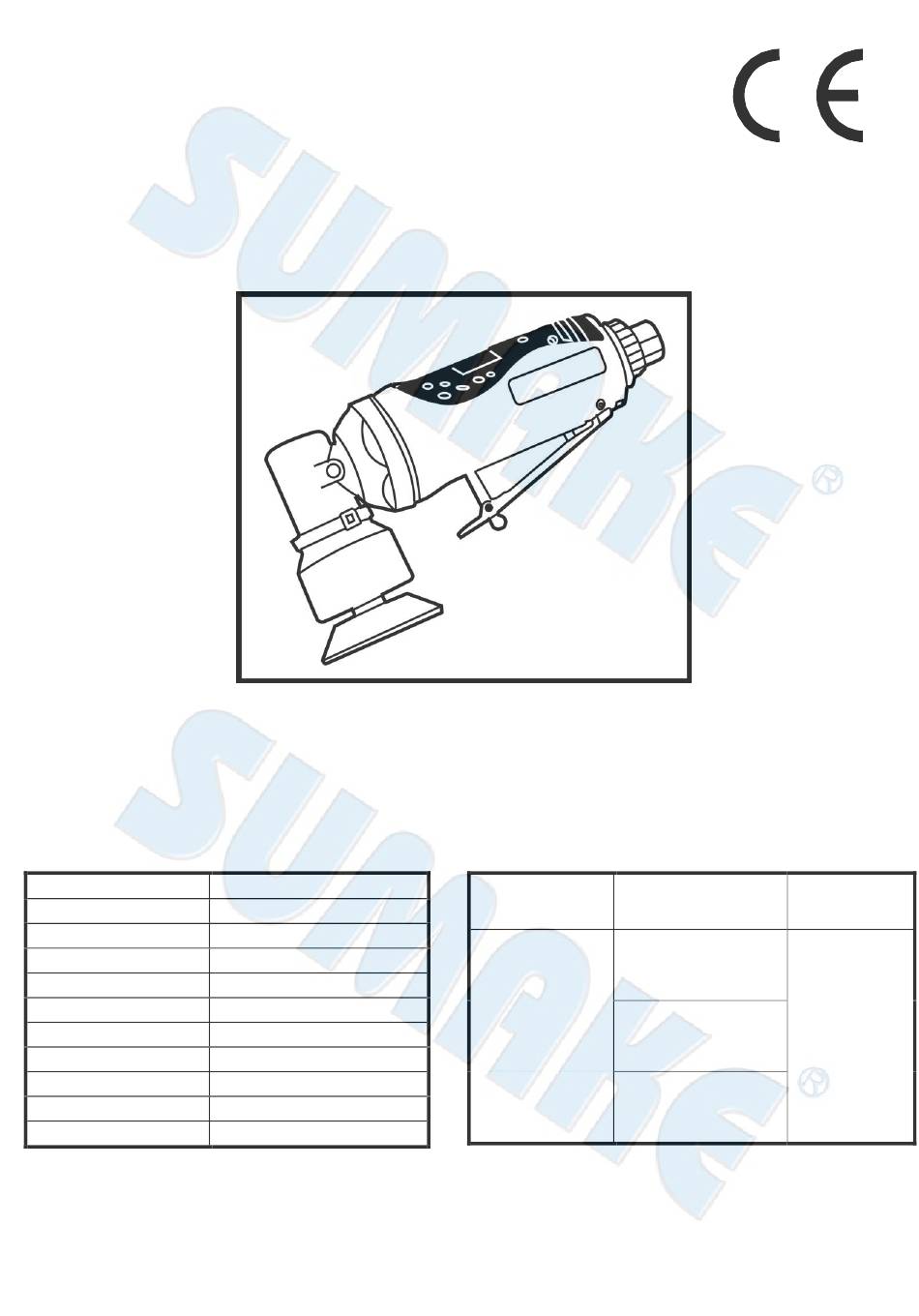

Specification:
Free Speed
Pad Size
Orbital
Motor
Spindle Size
Air Consumption
Overall Length
Air Inlet (PT)
Air Hose (I.D.)
Air Pressure
Net Weight
SUMAKE INDUSTRIAL CO., LTD
4F,NO.351,Yangguang St.,Neihu District TAIPEI, TAIWAN, ZIP:114-91
PNEUMATIC TOOLS
Air Angle Sander
W/3" Hook Pad
ST-AS10N3H-3
16,000 r/min
3" (76 mm)
3mm
0.5HP
M6x1.0
10 CFM (283 L/min)
7" (180 mm)
1/4" (6.35 mm)
3/8" (10 mm)
90 psi (6.3 bar)
1.5 lbs (0.66 kg)
Noise and Vibration:
Vibration
EN ISO 28927-3
Sound Pressure Level
No-Load:
1.13 m/s²
Uncertainty
²
K= 1.5 m/s
Noise
EN ISO 15744
Please always
No load: 86 dB(A)
Sound power level
environment
No load: 97 dB(A)
noise level > 80
dB(A) due to
risk of impaired
Uncertainty
K= 3dB
ST-AS10N3H-3-S-2207A-D5F
Remark
wear ear
protector at
hearing!
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Sumake ST-AS10N3H-3
Summary of Contents for Sumake ST-AS10N3H-3
- Page 1 3/8” (10 mm) Air Hose (I.D.) risk of impaired Uncertainty Uncertainty hearing! Air Pressure 90 psi (6.3 bar) ² K= 1.5 m/s K= 3dB Net Weight 1.5 lbs (0.66 kg) SUMAKE INDUSTRIAL CO., LTD 4F,NO.351,Yangguang St.,Neihu District TAIPEI, TAIWAN, ZIP:114-91 ST-AS10N3H-3-S-2207A-D5F...
-
Page 2: Ec Declaration Of Conformity
DECLARATION OF CONFORMITY SUMAKE INDUSTRIAL CO., LTD. 4F, No. 351, Yangguang St., Neihu District, Taipei City, Taiwan declare in sole responsibility that the equipment Equipment： AIR ANGLE SANDER W/3" HOOK PAD Model/ Serial No.： ST-AS10N3H-3 to which this declaration applies, complies with these normative documents: ... - Page 3 So, install an air filter and on oiler between the part number, name and quantity. To operate this tool, just push the lever Sumake is a manufacturer and exporter of air compressor and the tool. Use a 3 HP or larger toward the tool itself. The tool continuously Warning tools since established.
-
Page 4: Parts List
ST-AS10N3H-3 AIR ANGLE SANDER W/3" HOOK PAD PARTS LIST Parts No. Description Q'ty Parts No. Description Q'ty AS10N3H3-01 3" Hook Pad DG1002L-23 Valve Shaft AS10N2H3-02 Cover DG1002L-24 Throttle Lever Assy AS10N2H3-03 Girdle DG1002L-25 Spring Pin (M3x18) AS10N2R-04 Woodruff Key AS10N2R-26 Spring Pin (Φ2.5x4) - Page 5 SANDER Original instructions SUMAKE Industrial Co. Ltd.
- Page 6 The tool has been manufactured in conformity with the instruction of EU machine directive. The EU mark will be considered void in the event of inexpert repairs, the use of non-original parts and in case of non-observance of the safety instructions in the user’s manual. Possible direct or indirect consequential damages are not the responsibility of SUMAKE Industrial co., Ltd. General safety rules: Watch the tool at all times when in use.
- Page 7 13. Always use dust extraction or suppression systems which are suitable for the material being processed. Safety precautions for repetitive motions hazards 1. When using a sander to perform work-related activities, the operator can experience discomfort in the hands, arms, shoulders, neck or other parts of the body.
-
Page 8: Specific Safety Instructions
Specific safety instructions Warnings shall be given about any specific or unusual hazards associated with the use of the sander. Such warnings shall indicate the nature of the hazard, the risk of injury and the avoidance action to be taken. General preparation and connection: Before connecting the air hose, apply 4 to 5 drops of SAE#10-20 spindle oil at the air inlet.
