Summary of Contents for Dahua IPC-HFW1100S

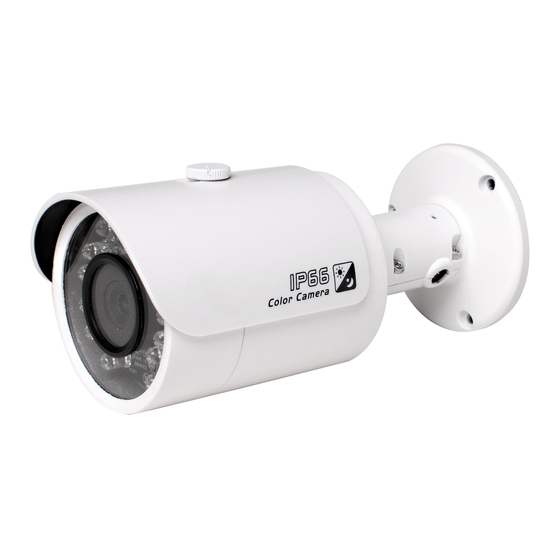

- Page 1 HD Mini IR Waterproof Fixed Network Camera User’s Manual Version 1.2.1...
- Page 2 Welcome Thank you for purchasing our network camera! This user’s manual is designed to be a reference tool for your system. Please read the following safeguard and warnings carefully before you use this series product! Please keep this user’s manual well for future reference!
-
Page 3: Important Safeguards And Warnings
Important Safeguards and Warnings 1．Electrical safety All installation and operation here should conform to your local electrical safety codes. The power shall conform to the requirement in the SELV (Safety Extra Low Voltage) and the Limited power source is rated 12V DC or 24V AC in the IEC60950-1. (Refer to general introduction) Please note: Do not connect two power supplying sources to the device at the same time;... - Page 4 Do not touch the CCD (CMOS) optic component. You can use the blower to clean the dust on the lens surface. Always use the dry soft cloth to clean the device. If there is too much dust, please use the water to dilute the mild detergent first and then use it to clean the device.
-
Page 5: Table Of Contents
Table of Contents General Introduction ...................... 1 Overview ......................1 Features ......................1 Specifications ....................2 1.3.1 Performance ....................2 Framework........................7 Cable......................... 7 Framework and Dimension ................7 Device Installation ......................9 Quick Configuration Tool ..................... 11 Overview ......................11 Operation ...................... -
Page 6: General Introduction
1 General Introduction 1.1 Overview This series network camera integrates the traditional camera and network video technology. It adopts video data collection, transmission together. It can connect to the network directly without any auxiliary device. This series network camera uses standard H.264 video compression technology, which maximally guarantees the video quality. -
Page 7: Specifications
Support video watermark function to avoid vicious video modification. Support dual bit streams, ACF. 1.3 Specifications 1.3.1 Performance Please refer to the following sheet for network camera performance specification. Model IPC-HFW1100S IPC-HFW1105S Parameter Main Processor High performance DSP Embedded LINUX System... - Page 8 Storage Support display network storage status Management Wire Network 1-channel wire Ethernet port, 10/100 Base-T Ethernet Standard HTTP, TCP/IP, ARP, IGMP, ICMP, RTSP, RTP,UDP, RTCP, Network Protocol SMTP, FTP, DHCP, DNS, DDNS, PPPOE, UPNP, NTP, Bonjour, SNMP. Remote Monitor, system setup, file download, log information, maintenance , Operation upgrade and etc.
- Page 9 H.264H: 16Kbps-8192Kbps; Video Bit Rate MJPEG: adjustable and bit rate is adjustable. Support customized setup. Support mirror. Video Flip Support flip function. Snapshot Max 1f/s snapshot. File extension name is JPEG. Privacy Mask Supports max 4 privacy mask zones Video Setup Support parameter setup such as bright, contrast.
- Page 10 System Status Bit stream statistics, log, and software version. Image Sensor 1/3-inch CMOS Pixel 1280(H)*960(V) 2048(H)*1536(V) Day/night Support day/night mode switch Gain Control Fixed/Auto White Balance Manual/Auto On/Off Manual/Auto/Low noise/Low motion blur Exposure Mode It ranges from 1/3 to 1/100000. Video Compression H.264/H.264H/MJPEG...
- Page 11 Working -30℃~+60℃ Temperature Working ≤95% Humidify Dimensions(mm) 70*66*155 00 series:620g (excluding box) Weight 05 series:420g (excluding box) Installation Install with bracket.
-
Page 12: Framework
2 Framework 2.1 Cable You can refer to the following figure for cable information. See Figure 2-1 Figure 2-1 Cable Please refer to the following sheet for detailed information. No. Port Function Connection Note Name Connect to standard Ethernet cable. Ethernet Note: Some devices do not support PoE. - Page 13 Figure 2-2 Dimension illustration 1 Figure 2-3 Dimension illustration 2...
-
Page 14: Device Installation
3 Device Installation Important Please make sure the installation surface can min support the 3X weight of the camera and the bracket. Figure 3-1 Device installation 1 Please see Figure 3-1 and Figure 3-2. Step 1 Stick installation sticker to designated surface where you will install the device (wall or ceiling). Step 2 Dig a hole according to position of hole on installation sticker. - Page 15 Figure 3-2 Device installation 2 Step 6 Use Philip’s head screw (in accessories bag) to loosen adjusting screw. Step 7 Adjust the device in all possible directions, and set its monitoring direction. Step 8 Use Philip’s head screw to tighten the screws.
-
Page 16: Quick Configuration Tool
4 Quick Configuration Tool 4.1 Overview Quick configuration tool can search current IP address, modify IP address. At the same time, you can use it to upgrade the device. Please note the tool only applies to the IP addresses in the same segment. 4.2 Operation Double click the “ConfigTools.exe”... - Page 17 In the configuration tool search interface (Figure 4-1), please select a device IP address and then double click it to open the login interface. Or you can select an IP address and then click the Login button to go to the login interface. See Figure 4-3. In Figure 4-3, you can view device IP address, user name, password and port.
-
Page 18: Web Operation
5 Web Operation This series network camera products support the Web access and management via PC. Web includes several modules: Monitor channel preview, system configuration, alarm and etc. 5.1 Network Connection Please follow the steps listed below for network connection. ... - Page 19 Figure 5- 2 Web login After you successfully logged in, please install WEB plug-in unit. Please refer to the Web Operation Manual included in the resource CD for detailed operation instruction. See Figure 5- 3. Figure 5- 3 Web monitoring window...
-
Page 20: Faq
6 FAQ I can not boot up Please click RESET button for at least five seconds to restore factory default setup. the device or operate properly. The water leakage The unauthorized front or rear cap remove many result in water occurred. -
Page 21: Appendix Toxic Or Hazardous Materials Or Elements
Appendix Toxic or Hazardous Materials or Elements Toxic or Hazardous Materials or Elements Component Name Cr VI PBDE Circuit Board ○ ○ ○ ○ ○ ○ Component ○ ○ ○ ○ ○ ○ Device Case ○ ○ ○ ○ ○ ○...
