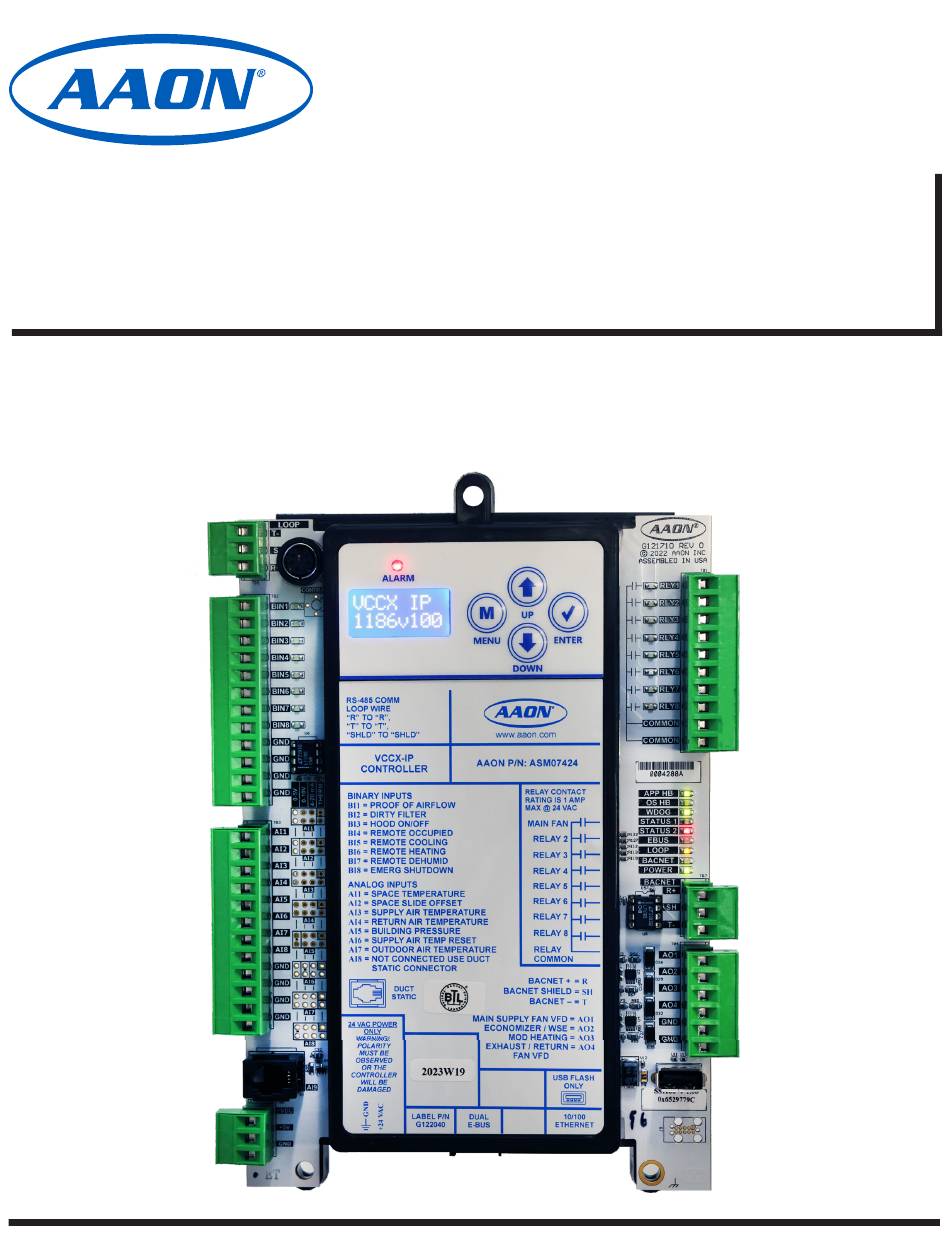

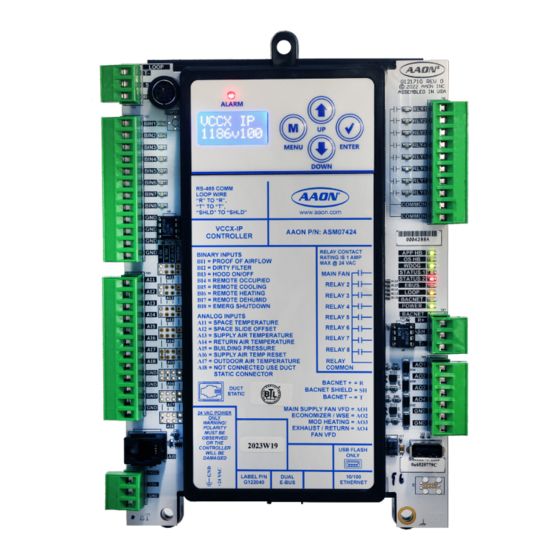

VCCX-IP Controller
Technical Guide
ASM07424
Software SS1186

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the VCCX-IP and is the answer not in the manual?

Questions and answers

Related Manuals for AAON VCCX-IP

Summary of Contents for AAON VCCX-IP

  • Page 1 VCCX-IP Controller Technical Guide ASM07424 Software SS1186...
  • Page 2 All rights reserved. © FEBRUARY 2024 AAON, Inc. GreenTrol Automation, Inc. Loris, SC. Paragon MicroTrans Series It is the intent of AAON to provide accurate and current product Airflow Monitoring Station is a registered trademark of Paragon Controls, information. However, in the interest of product improvement, AAON Inc., Santa Rosa, CA.

  • Page 3: Table Of Contents

    START-UP AND COMMISSIONING ....................... 23 Powering Up and Configuration ..........................23 INPUTS AND OUTPUTS ..........................24 VCCX-IP Controller and EM1 Module Inputs/Outputs Maps ................24 VCCX-IP Controller Inputs/Outputs Descriptions ....................26 VCC-X EM1 Expansion Module Inputs/Outputs Descriptions ................28 User Configurable Relay Outputs ......................... 29 SEQUENCE OF OPERATIONS ........................
  • Page 4 BACnet Connection to MS/TP or IP Network ......................73 Analog Inputs ................................ 74 Analog Values ............................... 82 Binary Inputs ................................. 88 Enumerated Fields ..............................92 Bitfields ................................. 93 BACnet Protocol Implementation Conformance Statement - VCCX-IP ..............95 VCCX-IP Controller Technical Guide...

  • Page 5: Table Of Figures

    Typical Networked Single Loop System Layout Figure 22: ....................64 Typical Networked Multiple Loop System Layout Figure 23: ....................65 LCD Display and Navigation Keys Figure 24: ........................66 VCCX-IP BACnet Connection to MS/TP or IP Network Figure 25: .................. 73 VCCX-IP Controller Technical Guide...

  • Page 6: Table Of Tables

    RSMZ Module VFD Status Trend Log Table 17: ........................53 VCCX-IP Trend Log Bit Strings Table 18: ..........................55 VCCX-IP Trend Log Bit Strings (continued) Table 19: ......................56 0-5V Temperature Sensor - Voltage and Resistance for Type III Sensors Table 20: .............60...

  • Page 7: Overview

    It also has an on-board BACnet ports for connection other shutdown conditions) to an MS/TP or IP network. The VCCX-IP contains a 2 x 8 LCD • Drybulb/wetbulb/dewpoint/comparative enthalpy control character display and four buttons that allow for status and alarm of economizer operation display, force modes, and BACnet configuration.

  • Page 8: Applications

    Application assumes unit has return air to allow for unoccupied operations with outdoor air damper closed. Dehumidification mode utilizes the outdoor air dewpoint and resets the coil temperature based off the supply air dewpoint. VCCX-IP Controller Technical Guide...

  • Page 9: Part Number Cross Reference

    ASM01626 MODGAS-X Module ASM01668 MODGAS-XWR2 Module ASM01695 Modular Service Tool SD - Operator Interface ASM01895 Modular System Manager SD - Operator Interface ASM01901 Outdoor Air Temperature Sensor G042230 PREHEAT-X Module / PREHEAT-X-EXT Module ASM01688 / ASM01689 VCCX-IP Controller Technical Guide...
  • Page 10 Standard Room Sensor - with Setpoint Adjust or Setpoint Adjust and Override ASM01642 / ASM01643 Strap-On Temperature Sensor Kit ASM01624 Suction Pressure Transducer ASM02222 System Manager TS-L (Touch Screen - Limited Access) ASM01900 USB-Link 2 Kit ASM02244 VCCX-IP Controller Technical Guide...

  • Page 11: Vccx-Ip Controller Components

    EXHAUST / RETURN = AO4 POLARITY FAN VFD MUST BE OBSERVED OR THE CONTROLLER WILL BE USB FLASH DAMAGED ONLY USB port 10/100 LABEL P/N DUAL ETHERNET G122040 E-BUS Auxiliary Power Out Ethernet port Figure 1: VCCX-IP Controller Components VCCX-IP Controller Technical Guide...

  • Page 12: Dimensions

    MUST BE OBSERVED OR THE CONTROLLER WILL BE USB FLASH DAMAGED ONLY 10/100 LABEL P/N DUAL G122040 E-BUS ETHERNET 4.10 Note: All Dimensions are in inches. 0.70 Note: Depth is 1.50 inches. Figure 2: VCCX-IP Controller Dimensions VCCX-IP Controller Technical Guide...

  • Page 13: Vcc-X Em1 Expansion Module

    OR THE CONTROLLER CONNECT G040660 CONNECT WILL BE DAMAGED 1002 OPTIONS 1002 0.20 ADDRESS .01uF 0.62 2.05 4.10 Note: All Dimensions are in inches. Note: Depth is 1.50 inches. Figure 3: VCC-X EM1 Expansion Module Dimensions VCCX-IP Controller Technical Guide...

  • Page 14: 12 Relay E-Bus Module

    R211 RELAY R213 TB10 EXPANSION BOARD YS102324 REV 2 24VAC 1002 0.20 POWER COMM .1uF 0.71 2.05 4.10 Note: All Dimensions are in inches. Note: Depth is 1.50 inches. Figure 4: 12 Relay E-BUS Module Dimensions VCCX-IP Controller Technical Guide...

  • Page 15: Wiring

    The VCCX-IP Controller is housed in a plastic enclosure. It is • When communication wiring is to be used to connect designed to be mounted by using the three mounting holes in the VCCX-IP Controllers together or to connect to other enclosure base.

  • Page 16: Vccx-Ip Controller

    Connect FRP Tubing to High Pressure Port (bottom tube) and route to Static Pressure Pickup Probe located in unit discharge. Plug into VCCX2 Leave port marked “LO” open to atmosphere. Controller’s Duct Static Port Figure 5: VCCX-IP Controller Input Wiring VCCX-IP Controller Technical Guide...

  • Page 17: Figure 6: Vccx-Ip Controller Output Wiring

    OBSERVED OR THE CONTROLLER WILL BE USB FLASH DAMAGED ONLY DUAL 10/100 LABEL P/N ETHERNET G122040 E-BUS Size transformer for correct total load. VCCX-IP Controller = 15VA Waterside Economizer Valve Figure 6: VCCX-IP Controller Output Wiring VCCX-IP Controller Technical Guide...

  • Page 18: Vcc-X Em1 Expansion Module

    WIRING VCC-X EM1 Expansion Module The VCC-X EM1 Expansion Module connects to the VCCX-IP It is very important to be certain that all Controller with an E-BUS cable and adds an additional five analog WARNING: wiring is correct as shown in the wiring inputs, five analog outputs, three binary inputs, and five configurable diagram below.

  • Page 19: Figure 9: Vcc-X Em1 Exhaust Duct Static Pressure And Economizer Actuator Feedback Wiring

    Consult factory for other manufacturer wiring instructions. (by others) Connect to Connect to Set jumper to 0-10 V VCCX-IP Controller Expansion Module(s) (when used) Figure 9: VCC-X EM1 Exhaust Duct Static Pressure and Economizer Actuator Feedback Wiring VCCX-IP Controller Technical Guide...

  • Page 20: Figure 10: Vcc-X Em1 Expansion Module Output Wiring

    24 VAC POWER ONLY WARNING! POLARITY MUST BE OBSERVED E-BUS LABEL P/N: E-BUS OR THE CONTROLLER CONNECT G040660 CONNECT WILL BE DAMAGED (for Return Plenum Pressure Control Applications) Figure 10: VCC-X EM1 Expansion Module Output Wiring VCCX-IP Controller Technical Guide...

  • Page 21: 12 Relay E-Bus Expansion Module

    12 Relay E-BUS Expansion Module E-BUS cable connects to VCCX-IP Controller E-BUS cable connects to the next Expansion Board Figure 11: 12 Relay E-BUS Expansion Module Wiring VCCX-IP Controller Technical Guide...

  • Page 22: Airflow Station

    MicroTransEQ series of MODBUS RTU transmitters are compatible with the VCCX-IP Controller. No other series of transmitters will work for this application. Contact AAON Controls for information on other airflow station options.

  • Page 23: Start-Up And Commissioning

    VCCX-IP sizing for each controller. Each VCCX-IP Controller requires 15 VA Controller in the order that follows: of power delivered to it at 24 VAC. Use separate transformers for each device (preferred) or power several devices from a common Configure the controller for the application.

  • Page 24: Inputs And Outputs

    Table 5: VCCX-IP Controller Relay Outputs Dirty Filter The following E-BUS sensors and modules are available to connect Hood On/Off to the VCCX-IP Controller via E-BUS ports or E-BUS Expansion Remote Forced Occupied Modules: Remote Forced Cooling • E-BUS Digital Room Sensor - LCD Display - Temp Only...

  • Page 25: Table 6: Vcc-X Em1 Expansion Module Analog Inputs

    INPUTS AND OUTPUTS VCCX-IP Controller and EM1 Module Inputs/Outputs Maps EM1 Expansion Module Inputs ANALOG INPUTS (AI) INPUT NAME Entering Water Temperature Sensor Mixed Air Temperature sensor SIG1 Return Air Plenum Pressure (0-5V) SIG2 Economizer Damper Midway Switch (5VDC) SIG3...

  • Page 26: Vccx-Ip Controller Inputs/Outputs Descriptions

    BI4 - Remote Forced Occupied Mode Input applications, it can control an outdoor air damper actuator (or in When this wet contact input closes, it forces the VCCX-IP Controller certain cases, the VFD supply fan). The other available control into the Occupied Mode. When the remote forced occupied signal...
  • Page 27 The controller remains active and can initiate alarm relays. For reverse acting building pressure control using the NOTE: outdoor air damper or supply fan VFD, the VCCX-IP The binary inputs require wet contacts (24 VAC only) NOTE: Controller uses the outputs specific to those devices.

  • Page 28: Vcc-X Em1 Expansion Module Inputs/Outputs Descriptions

    This static pressure reading is used to control the output These relays are configurable by the user. See Table 10, page 29 signal (AO4 on the VCCX-IP Controller) supplied to the exhaust fan VFD. Binary Inputs BI1 - Return/Exhaust Proof of Flow...

  • Page 29: User Configurable Relay Outputs

    If configured, this relay will energize anytime the space sensor push-button override is active. Alarm Active If configured, this relay will energize anytime a VCCX-IP alarm is active. A1 Comp Run Status Will enable when the RSM A1 compressor activates.

  • Page 30: Sequence Of Operations

    Space Temperature Typical selection for CAV recirculating units. • Broadcast week schedule from GPC-XP The VCCX-IP Controller can be forced into the Occupied Mode by Return Air Temperature Optional selection for CAV recirculating units. inputting a forced schedule from any operator interface.
  • Page 31 When the remote forced occupied signal is removed, the controller will revert to the Unoccupied Mode of operation, or if an internal VCCX-IP schedule is also being used, it will revert to the current scheduled mode. Setting the internal week schedule to “0” will cause the controller to only look for the remote forced occupied signal for occupied/ unoccupied commands.

  • Page 32: Modes Of Operation

    Cooling with the Refrigerant System Modules the active Supply Air Cooling Setpoint. The modulating cooling On units with digital or VFD compressors, the VCCX-IP Controller proportional window is used to determine the signal to the chilled will utilize one or more RSMs. Units with only fixed staged water valve and is user adjustable.
  • Page 33 VCCX-IP controller is wired to the direct fire controller to (adjustable) before it is allowed to energize, and successive stages adjust the amount of heat it puts out. The VCCX-IP uses the same are subject to a heating stage up delay (adjustable).
  • Page 34 Damage to the unit could occur since the outdoor air damper remains default of 0%, the controller will not initiate this protection sequence. closed in the Unoccupied Mode. This operation works during emergency shutdown. VCCX-IP Controller Technical Guide...
  • Page 35 Dehumidification Operation on Chilled Water Units If the unit is equipped with a MHGRV-X, during Dehumidification it For chilled water units, the VCCX-IP Controller will open the will modulate the reheat valve to maintain the supply air temperature chilled water valve to a fixed 100% position to provide full moisture at the active Supply Air Temperature Setpoint.
  • Page 36 Heat Pump Standard Defrost Operation If using the VCCX-IP Controller with an installed defrost coil When the SAT rises above the SAT setpoint the MHGRV will temperature switch, a defrost cycle is available.
  • Page 37 SEQUENCE OF OPERATIONS Modes of Operation Heat Pump Adaptive Defrost Operation When the VCCX-IP Controller is configured for Morning Warm-Up The adaptive defrost operation adjusts the time interval (adaptive and switches to the Occupied Mode of Operation (not Override or defrost timer) in between Defrost Mode cycles.
  • Page 38 If utilizing the Title 24 economizer option, an economizer feedback signal (0-10 VDC) can be wired into the VCC-X EM1 Expansion Module for status monitoring. Several Title 24 alarm conditions can also be displayed. VCCX-IP Controller Technical Guide...
  • Page 39 The digital sensors each need to be configured with unique addresses (#1 -10) and have an LCD display for this operation. In A remote contact control option can be configured on the VCCX-IP this arrangement, only the sensor at address #1 can utilize the slide Controller to initiate the HVAC Modes of operation.
  • Page 40 Outdoor Air Temperature Sensor connected directly to the established by the configured Low and High Supply Air Temperature VCCX-IP Controller) will be used as the temperature that locks out Setpoints. compressors during heat pump heating mode. See the PREHEAT-X Module Technical Guide for more details.
  • Page 41 In order to maintain a constant cubic feet per minute through the unless close observation reveals that the supply fan or bypass damper supply air ducts on a mixed air constant air unit, the VCCX-IP can is hunting and not maintaining a stable pressure reading.
  • Page 42 Outdoor Air Damper damper will open to 30% and wait 30 seconds to turn on the return If this option is configured, the VCCX-IP will use the user-adjustable fans. This is done to prevent any damage to either the return or economizer/outdoor air damper output signal (AO2 –...
  • Page 43 The air being exhausted is controlled by a separate control system hours. This is accomplished by simply configuring Night Setback that sends the VCCX-IP a 0-10 VDC signal on analog input 6 based Temperature Setpoints (anything other than the default 30ºF) on a on its exhaust demand.
  • Page 44 Space Heating High and a Space Heating Low If there is no demand, the VCCX-IP switches to Vent Mode. If the Reset Source Setpoint. outdoor air temperature is greater than the Hood On HVAC Cooling...
  • Page 45 In this operation, if night setback operation will be initiated by Sump Heater Operation a Space Sensor connected to the VCCX-IP Controller, then the The sump heater relay activates if the sump temperature is below night setback Cooling and Heating offsets will be applied to the the Sump Heater Enable Temperature Setpoint.
  • Page 46 The sump and condenser valves are open. drain enable relay can be disabled in one of two ways: 1. Cycle power to the VCCX-IP when the sump temp is For waterside economizer bypass wiring, please see NOTE: above the Sump Drain Enable Setpoint or the RSMD Technical Guide.

  • Page 47: Alarms

    CO control. Relief Pressure Sensor This alarm occurs if the VCCX-IP is receiving the value from a Broadcast or BACnet and the value is out of an acceptable range. Airflow Alarms •...
  • Page 48 A 24 VAC wet contact input is available to be used when a normally closed smoke Detector, Firestat, or other shutdown condition occurs. If this contact opens, it will initiate shutdown of the VCCX-IP and will generate an alarm condition. If an Occupied relay is configured, it will remain energized.

  • Page 49: Figure 16: Prism 2 Direct Fire Alarms Screen

    Expansion Boards If the controller is configured to have any of the below expansion boards (Modules), but the VCCX-IP controller does not detect that board, then the applicable alarm will occur. If the board is properly detected after the unit has alarmed, the alarm will be cleared.

  • Page 50: Figure 17: Prism 2 Compressor Alarms Screen

    In the Prism 2 Alarm Menu, Click OK on Compressor Alarms and the following detail screen will appear: Refer to the individual RSM Technical Guides for more details. Figure 18: Prism 2 EVAP Module Alarms Screen Figure 17: Prism 2 Compressor Alarms Screen VCCX-IP Controller Technical Guide...

  • Page 51: Trend Logs

    AlrmGrp5 (Bit String)* Refrigeration Module Alarms Table 12: RSMZ Module Trend Log Binary Inputs Status Bin IN (Bit String)* Relays Status of VCCX-IP and EM1 Main Rly (Bit String)* Relays Status of 12 Relay Expansion Exp Rly (Bit String)* Module * Bit String and Enumeration Value information and interpretation is explained in the paragraphs and tables at the end of this section.

  • Page 52: Table 13: Rsmv/Rsmd Module Trend Logs

    A2 Discharge Temperature 1DisChg2 (ºF) Relay Status 1Relay1 (Bit String)* * Bit String and Enumerated Value information and interpretation is explained in the paragraphs and tables at the end of this section. Table 13: RSMV/RSMD Module Trend Logs VCCX-IP Controller Technical Guide...

  • Page 53: Table 15: Rsmz Module Comp Status Trend Log

    1 = Timer 5RSMAlrms Compressor2_NotRunning Exceeded 6RSMAlrms LowSuperheat Table 17: RSMZ Module VFD Status Trend Log HighDischargeTemperature DMQ_NoDetect ModBusSlaveCommTO LowSuctionComp2Off 1024 TripHighDiscPSI_Comp2 2048 HighSuperheat 4096 HighEvapTemp 8192 EmergencyShutdown Table 16: RSMZ Module RSM Alarm Trend Log VCCX-IP Controller Technical Guide...
  • Page 54 The tables on the following pages provide the bits, values and to decode the VCCX-IP trend log items that are indicated as being descriptions for the various points on the VCCX-IP Controller and bit string values.

  • Page 55: Table 18: Vccx-Ip Trend Log Bit Strings

    VCCX-IP Relay #7 Configurable VCCX-IP Relay #8 Configurable EM1 Relay #1 Configurable EM1 Relay #2 Configurable 1024 EM1 Relay #3 Configurable 2048 EM1 Relay #4 Configurable 4096 EM1 Relay #5 Configurable Table 18: VCCX-IP Trend Log Bit Strings VCCX-IP Controller Technical Guide...

  • Page 56: Table 19: Vccx-Ip Trend Log Bit Strings (Continued)

    Defrost Mode Relay 1 Active Relay 2 Active RSMV/RSMD 1Relay1 Relay 3 Active 2Relay2 Relay 4 Active 3Relay3 Relay 5 Active 4Relay4 Unloader 1 Active Unloader 2 Active Table 19: VCCX-IP Trend Log Bit Strings (continued) VCCX-IP Controller Technical Guide...

  • Page 57: Updating Via Usb

    3. Insert the USB drive in to the USB port on the VCCX-IP. 4. Power cycle or power on the VCCX-IP. 5. If the VCCX-IP was able to find an update file and it is newer than the version currently on the VCCX-IP, the LCD will display “VALIDATE”...

  • Page 58: Led Diagnostics

    This green LED lights up when the proof of flow contact is BI1 - closed. The VCCX-IP Controller is equipped with LEDs that can be used to verify operation and perform troubleshooting. There are LEDs This green LED lights up when the dirty filter switch is closed.

  • Page 59: Figure 19: Vccx-Ip Controller Led Locations

    OBSERVED OR THE CONTROLLER WILL BE USB FLASH DAMAGED ONLY 10/100 LABEL P/N DUAL ETHERNET G122040 E-BUS Figure 19: VCCX-IP Controller LED Locations RELAY OUTPUT TERMINALS YS102482 REV1 4992 1002 10uF www.aaon.com STATIC PRESSURE 1002 EXHAUST DUCT 1002 STATIC 10uF...

  • Page 60: Temperature Sensor Testing

    1.246 12191 2.746 57.2 3015 1.159 20.6 11906 2.717 2743 1.077 21.1 11652 2.691 62.7 2502 1.001 21.7 11379 2.661 65.6 2288 0.931 Table 20: 0-5V Temperature Sensor - Voltage and Resistance for Type III Sensors VCCX-IP Controller Technical Guide...

  • Page 61: Pressure Sensor Testing

    GND terminal and the “+” (plus) lead on the right side of the Place the “-” (minus) lead on terminal labeled GND and the “+” resistor labeled R85. Be sure to replace the jumper after checking. lead on terminal AI5 on the VCCX-IP Controller. DUCT STATIC PRESSURE SENSOR BUILDING PRESSURE SENSOR...

  • Page 62: Appendix A: System Configuration

    Networked System For a networked single loop system, a range of one to 59 VCCX-IP Controllers sharing information, connect the controllers together using AAON communications wire or 18-gauge, two-conductor, twisted pair with shield wire (Belden #82760 or equivalent).

  • Page 63: Stand-Alone System Layout

    APPENDIX A: SYSTEM CONFIGURATION Stand-Alone System Layout Figure 21: Typical Stand-Alone System Layout VCCX-IP Controller Technical Guide...

  • Page 64: Networked System Single Loop Layout

    18-30 VAC 18-30 VAC 18-30 VAC transformer sizing. (10 VA) (10 VA) (10 VA) (10 VA) (10 VA) Connect to next VAV/Zone BACnet Controller ® on local loop Figure 22: Typical Networked Single Loop System Layout VCCX-IP Controller Technical Guide...

  • Page 65: Networked System Multiple Loop Layouts

    1002 1002 1002 Connect to MiniLink PD 5 Loop 3 YS102398 REV 3 PIC32 MLPD transformer sizing. MADE IN USA ADDRESS POWER Line oltage 18-30 VAC (6 VA) Figure 23: Typical Networked Multiple Loop System Layout VCCX-IP Controller Technical Guide...

  • Page 66: Appendix B: Lcd Screens

    The <MENU> key cancels editing when in Edit Mode. The screen you were editing will return to its original value and the underscore will disappear. A second press of the <MENU> key will return you to the Main Menu. Table 24: Editing Key Functions VCCX-IP Controller Technical Guide...

  • Page 67: Main Screens Map

    Edit No XX Speed 0.0 % XXX.XXX XXX.XXX XXX.XXX XXX.XXX CO2Level X ppm Gateway Gateway DHCP Edit No XXX.XXX XXX.XXX XXX.XXX XXX.XXX Ethernet Ethernet Mac ADDR Mac ADDR XX-XX-XX XX-XX-XX XX-XX-XX XX-XX-XX DHCP DHCP Disabled Enabled VCCX-IP Controller Technical Guide...

  • Page 68: Screen Descriptions

    Used to override relay and analog outputs. Override Air Balance screens that can be used by air Balance balance to set min and max fan speeds. Factory This screen is for AAON factory use only. Testing Table 25: Main Screens VCCX-IP Controller Technical Guide...

  • Page 69: Table 27: Settings Screens - Bac Type Mstp

    Address. This address cannot be modified. XX-XX-XX The Ethernet Mac Address XX-XX-XX DHCP With DHCP disabled, most entries can be manually configured. Enabling DHCP disables the manual Disabled configuration of IP settings. Table 28: Settings Screens - BAC Type IP VCCX-IP Controller Technical Guide...

  • Page 70: Table 29: Status Screens

    RA Temp Return air temperature. XX.X° OA Temp Outdoor air temperature. XX.X° OA RH Outdoor air humidity. 0.00% - 100%. X.X % CO2Level Carbon dioxide level. 0.00 ppm to 5000 ppm. X ppm Table 29: Status Screens VCCX-IP Controller Technical Guide...

  • Page 71: Table 30: Alarms Screens

    RELAY Relay run time exceeded alarm RUNTIME ECONO Title 24 Economizer alarms FAILURE RET FAN Return/Exhaust fan proving alarm FAILURE DIR FIRE Direct fire heat alarm ALARM Fan Array Controller alarm ALARM Table 30: Alarms Screens VCCX-IP Controller Technical Guide...

  • Page 72: Table 31: Output Override Screens

    Maximum fan voltage. 0.0 to 10.0 VDC. Press the 10.0 VDC <UP> and <DOWN> buttons to change the value. RELAY #1 VCCX-IP controller relays 1-8. Press the <UP> Default is 10.0. AUTO button to change the value. Default is AUTO.

  • Page 73: Appendix C: Bacnet Guide

    1. All wiring to be in accordance with local and national electrical codes and specifications. 2. All communication wiring to be 18-gauge minimum, two-conductor, twisted pair with shield. Use Belden #82760 or equivalent. Figure 25: VCCX-IP BACnet Connection to MS/TP or IP Network VCCX-IP Controller Technical Guide...

  • Page 74: Analog Inputs

    Return Air Bypass Modulating Cooling Position AI: 34 Current percentage of the Modulating Chilled Water Signal Modulating Heat Position AI: 35 Current percentage of the Modulating Heating signal (Hot Water or SCR heat) Objects labeled AI are read-only. VCCX-IP Controller Technical Guide...
  • Page 75 B1 Compressor Signal AI: 69 Current Compressor B1 Modulating Cooling Signal B2 Compressor Signal AI: 70 Current Compressor B2 Modulating Cooling Signal B1 Condenser Signal AI: 71 Current B1 Condenser Signal Objects labeled AI are read-only. VCCX-IP Controller Technical Guide...
  • Page 76 Current Compressor C1 Suction Line Temperature (Heat (Heat Pump) Pump) C2 Condenser Suction Temp AI: 107 Current Compressor C2 Suction Line Temperature (Heat (Heat Pump) Pump) C1 Superheat Temperature AI: 108 Current Compressor C1 Superheat Temperature Objects labeled AI are read-only. VCCX-IP Controller Technical Guide...
  • Page 77 D1 Discharge Temperature AI: 141 Current Compressor D1 Discharge Temperature D2 Discharge Temperature AI: 142 Current Compressor D2 Discharge Temperature D1 Leaving Water Temp AI: 143 Current D1 Leaving Water Temperature for WSHP Objects labeled AI are read-only. VCCX-IP Controller Technical Guide...
  • Page 78 See RSMZ Faults Bits on page 91. RSMZ 2 Lockouts AI: 182 Current RSMZ 2 Lockouts See RSMZ Lockouts Bits on page 91. RSMZ 3 Condenser Fan AI: 183 Current RSMZ 3 condenser fan signal Objects labeled AI are read-only. VCCX-IP Controller Technical Guide...
  • Page 79 Current RSMZ 5 Warnings See RSMZ Warnings Bits on page 91. RSMZ 5 Comp VFD Alarms 1 AI: 225 Current RSMZ 5 Comp VFD Alarms 1 See RSMZ Alarms 1 Bits on page 92. Objects labeled AI are read-only. VCCX-IP Controller Technical Guide...
  • Page 80 Current Subcooling Module 2 Sub Cool 1 reading SUB 2 Sub Cool 2 AI: 266 Current Subcooling Module 2 Sub Cool 2 reading SUB 2 Sub Cool 3 AI: 267 Current Subcooling Module 2 Sub Cool 3 reading Objects labeled AI are read-only. VCCX-IP Controller Technical Guide...
  • Page 81 Space Dew Point AI: 285 Current value of the calculated Space Dew Point. Return Dew Point AI: 286 Current value of the calculated Return Dew Point. Objects labeled AI are read-only. VCCX-IP Controller Technical Guide...

  • Page 82: Analog Values

    Warm-Up Mode activates if the Return Target Temperature) Air is below this temperature by one degree Objects labeled AV are read/write. The only sensor values that can be written to are AV points 72, 73, and 76 through 79. VCCX-IP Controller Technical Guide...
  • Page 83 Temperature at which the Low Ambient Relay activates in -30°F (-34.4°C) 70°F (21.1°C) Setpoint the Occupied or Unoccupied Mode Objects labeled AV are read/write. The only sensor values that can be written to are AV points 72, 73, and 76 through 79. VCCX-IP Controller Technical Guide...
  • Page 84 Min Damper Position is proportionally reset between the configured Min Damper Position and the Max Position in High CO2. Objects labeled AV are read/write. The only sensor values that can be written to are AV points 72, 73, and 76 through 79. VCCX-IP Controller Technical Guide...
  • Page 85 Dehumidification. During Coil Temp Reset, this is the lowest Space RH value that corresponds to the High Coil Temp Setpoint. If the VCCX-IP is configured for indoor dewpoint control, this point displays Dew Point instead of Humidity. Indoor Humidity Setpoint High...
  • Page 86 This must be an infrequent event, so the default is 15 minutes. Objects labeled AV are read/write. The only sensor values that can be written to are AV points 72, 73, and 76 through 79. VCCX-IP Controller Technical Guide...
  • Page 87 BMS wants them disabled. Supply Air Dew Point Setpoint AV: 99 When the VCCX-IP is configured for DX-DOAS control it modulates the compressors to try to maintain the Supply Air Dew Point Setpoint during dehumidification mode. Objects labeled AV are read/write. The only sensor values that can be written to are AV points 72, 73, and 76 through 79.

  • Page 88: Binary Inputs

    BI: 36 Occurs when the Controlling Sensor Temperature rises above the Cooling Mode Enable Setpoint plus the Control Mode High Alarm Offset. Applies only to Space or Return Air Temperature controlled units. Objects labeled BI are read-only. VCCX-IP Controller Technical Guide...
  • Page 89 BI: 76 Status of MHGRV Controller A1 Compressor Enable BI: 77 Current Status of Enable Signal to Compressor A1 A2 Compressor Enable BI: 78 Current Status of Enable Signal to Compressor A2 Objects labeled BI are read-only. VCCX-IP Controller Technical Guide...
  • Page 90 Emergency Shutdown Input on Module D Refrigerant Module 4 Relay 1 BI: 120 Current Status of Compressor 1 Enable Relay Refrigerant Module 4 Relay 2 BI: 121 Current Status of Compressor 2 Enable Relay Objects labeled BI are read-only. VCCX-IP Controller Technical Guide...
  • Page 91 Heat Enable signal is removed and direct fire heating is locked out. Direct Fire Setpoint Override BI: 149 Indicates the max calculated heat rise is limiting the Supply Air Setpoint to a lower value. Objects labeled BI are read-only. VCCX-IP Controller Technical Guide...

  • Page 92: Enumerated Fields

    VCCX HVAC MODE STATUS = ENUMERATED ITEM ENUM Vent Mode Cooling Mode Heating Mode Vent RH Mode Cooling RH Mode Heating RH Mode Warm Up Mode Purge Mode Defrost Mode Cool Down Mode Table 35: VCCX Mode Status = Enumerated VCCX-IP Controller Technical Guide...

  • Page 93: Bitfields

    0=Voltage Okay; 16384 Emergency Shutdown Exceeded 1=Voltage Exceeded Table 37: RSMZ Faults Status Bit Strings Torque 16384 0=Torque Okay; Exceeded 1=Torque Exceeded Timer 32768 0=Timer Okay; Exceeded 1=Timer Exceeded Table 39: RSMZ Drive Status Bit Strings VCCX-IP Controller Technical Guide...

  • Page 94: Table 40: Rsmz Module Vfd1 Alarm Trend Log

    24 V Supply Low Mains Failure 1.8V Supply Low 1024 Brake Resistor 2048 Brake IGBT 4096 Option Change 8192 Drive Initialized 16384 Safe Stop 32768 Mech brake low Table 41: RSMZ Module VFD2 Alarm Trend Log VCCX-IP Controller Technical Guide...

  • Page 95: Bacnet Protocol Implementation Conformance Statement - Vccx-Ip

    APPENDIX C: BACNET GUIDE BACnet Protocol Implementation Conformance Statement - VCCX-IP BACnet® Protocol Implementation Conformance Statement Date: January 2023 Vendor: AAON Product: VCCX-IP Product Model Number: ASM07424 Product Version: FW 1.09 Product Description: HVAC Unit Controller BACnet Protocol Revision: Revision 15 (ANSI/ASHRAE Standard 135-2019) BACnet®...
  • Page 96 PARTS: For replacement parts, please contact your local AAON Representative. 2425 So. Yukon Ave • Tulsa, OK • 74107-2728 Ph: (918) 583-2266 • Fax: (918) 583-6094 Rev. B Created in the USA • © February 2024 AAON All Rights Reserved...
