Advantech ASMB-831 Series User Manual

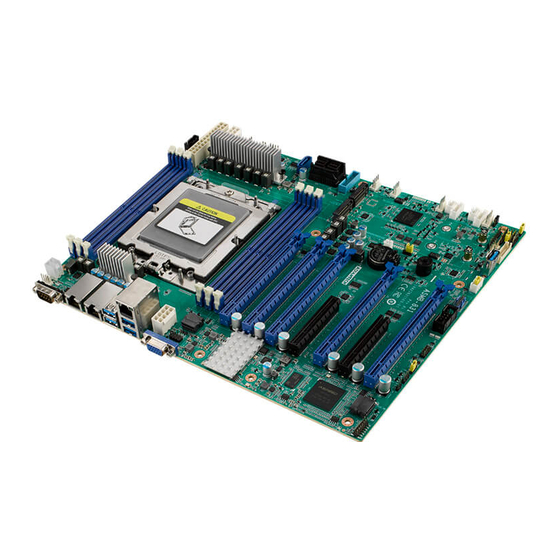

Socket sp5 (lga 6096) amd epyc 9004 server board with 6 reg-ddr5, 5 pcie 5.0 x16, 2 pcie 5.0 x8, 2 m.2 nvme, 9 sata3, 7 usb 3.2 gen1, dual 10gbe, ipmi
Hide thumbs Also See for ASMB-831 Series:
Table of Contents

Advertisement

Quick Links

Download this manual
User Manual
ASMB-831 Series
Socket SP5 (LGA 6096) AMD
EPYC™ 9004 Server Board with
6 REG-DDR5, 5 PCIe 5.0 x16, 2
PCIe 5.0 x8, 2 M.2 NVMe, 9
SATA3, 7 USB 3.2 Gen1, Dual
10GbE, IPMI
