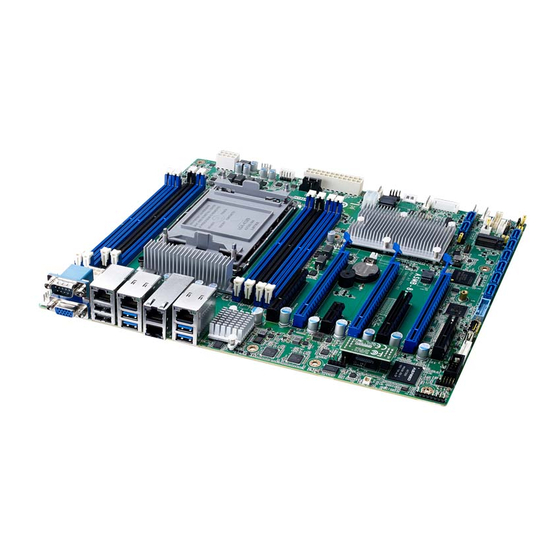

Lga 4189 intel 3rd gen xeon scalable atx server board with 8 x ddr4, 3x pcie x 16, 8 x sata 3, 6 x usb 3.0, dual 10gbe and ipmi
Hide thumbs Also See for ASMB-816 Series:
Table of Contents

Advertisement

Quick Links

Download this manual
User Manual
ASMB-816 Series
®
®
LGA 4189 Intel
3rd Gen Xeon
Scalable ATX Server Board with
8 x DDR4, 3x PCIe x 16, 8 x SATA
3, 6 x USB 3.0, Dual 10GbE and
IPMI

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ASMB-816 Series and is the answer not in the manual?

Questions and answers

Related Manuals for Advantech ASMB-816 Series

Summary of Contents for Advantech ASMB-816 Series

  • Page 1 User Manual ASMB-816 Series ® ® LGA 4189 Intel 3rd Gen Xeon Scalable ATX Server Board with 8 x DDR4, 3x PCIe x 16, 8 x SATA 3, 6 x USB 3.0, Dual 10GbE and IPMI...
  • Page 2 No part of this manual may be reproduced, copied, translated, or transmitted in any form or by any means without the prior written permission of Advantech Co., Ltd. The information provided in this manual is intended to be accurate and reliable.
  • Page 3 Advantech has come to be known. Your satisfaction is our primary concern. Here is a guide to Advantech’s cus- tomer services.
  • Page 4 Initial Inspection Before installing motherboard, please make sure that the following materials have been shipped: 1 x ASMB-816 ATX motherboard  1 x ASMB-816 Startup Manual  2 x Serial ATA HDD data cables  1 x I/O port bracket ...

  • Page 5: Table Of Contents

    Contents Chapter Overview..........1 Introduction ....................2 Features ....................2 Specifications .................... 3 Table 1.1: Specifications ............. 3 Board Layout, Jumpers and Connectors........... 5 Figure 1.1 Board Layout .............. 5 Figure 1.2 Rear I/O of Full SKU (ASMB-816T2-00A1E)....5 Table 1.2: Onboard LAN LED Color Definition ......6 Table 1.3: Jumpers..............
  • Page 6 Chapter BIOS..........29 Introduction ..................... 30 BIOS Setup ..................... 31 3.2.1 Main Menu .................. 31 3.2.2 Advanced BIOS Features Setup..........32 3.2.3 Platform Configuration ..............52 3.2.4 Socket Configuration ..............61 3.2.5 Server Management ..............73 3.2.6 Security..................79 3.2.7 Boot ....................
  • Page 7 Table B.15:Clear CMOS Connector (JCMOS1, JME1) .... 100 B.15 PMBUS Connector (PMBUS1).............. 100 Table B.16:PMBUS Connector (PMBUS1) ....... 100 B.16 GPIO Connector (GPIO1) ..............100 Table B.17:GPIO Connector (GPIO1)........100 ASMB-816 User Manual...
  • Page 8 ASMB-816 User Manual viii...

  • Page 9: Chapter 1 Overview

    Chapter Overview...

  • Page 10: Introduction

    Introduction The ASMB-816 server board is the most advanced Intel Xeon Processor scalable family series board for server-grade IPC applications that require high-performance computing power & multi-expansion slots. This server board supports Intel Xeon Scalable series processor and DDR4 ECC-REG 2400/2666/2933/3200 MHz memory up to 1024 GB.

  • Page 11: Specifications

    Specifications Table 1.1: Specifications Processor Dual Intel LGA4189 Xeon processor sockets  Supports Intel 3rd Gen Xeon Scalable family, up to 40 cores  Supports the TDP of processor up to 270W  (Please consider extended air thermal solution while using CPU >...
  • Page 12 Table 1.1: Specifications Power Connector System Power 1 x 24-pin SSI EPS 12V power connector (Input 12V, 5V, 3.3V, 5Vsb) 2 x 8-pin SSI EPS 12V power connector for CPU & Memory power CPU Power (12V) PCIe slot power 1 x 4-pin 12V power connector for PCIe slot 12V input Expansion Slots 3 x PCIe x16 slot ...

  • Page 13: Board Layout, Jumpers And Connectors

    Board Layout, Jumpers and Connectors Connectors on the ASMB-816 are linked to external devices such as hard disk drives. In addition, ASMB-816 has a number of jumpers that are used to configure the system for specific applications. The tables below list the functions of each jumper and connector. Later sections in this chapter give instructions for setting jumpers.
  • Page 14 Table 1.2: Onboard LAN LED Color Definition 10/100/1000 & 10G Mbps LAN Link/Activity LED Scheme LAN3 & LAN4 (10G) Left LED Right LED Link Green 100 Mbps Active Blinking green Link Amber Green 1G Mbps Active Amber Blinking green Link Green Green 10G Mbps...
  • Page 15 Table 1.4: Connectors Label Function ATX12V1, ATX12V2 SSI EPS 12V auxiliary power connector (for CPU) and memory ATXPWR1 SSI EPS 24-pin main power connector (for system) For optional battery kit BIOS_SKT1 BIOS SPI ROM BMC_CN1, BMC_CN2 IPMI connector (ASMB-816 I & T2 SKUs only) COM2 Serial port: RS-232 CPU0...

  • Page 16: Block Diagram

    1024 GB (Maximum 64 GB for each DIMM or 128GB LRDIMM). ASMB-816 supports registered DIMMs memory module. Note! Some 128GB LRDIMM modules can be supported. Please contact Advantech service window when you require higher memory capacity. ASMB-816 User Manual...

  • Page 17: Memory Installation

    Memory Installation Memory performance is affected by different DIMM configurations. To reach optimal memory interleaving, be sure to install identical DIMM types with the same size, speed, and number of ranks on those memory slots corresponding to the correct pro- cessor.

  • Page 18: Processor Installation

    Note! 3, 5 and 7 DIMMs are not recommended DIMM population. Processor Installation The ASMB-816 is designed for the Intel Xeon processor family. Remove the dust cover. Install CPU on CPU carrier and align the pin 1 mark. ASMB-816 User Manual...
  • Page 19 Install the CPU clip assembly on the heatsink as a processor + heatsink module. Place the processor heatsink module into the motherboard bolster plate by using a T-30 screwdriver. ASMB-816 User Manual...
  • Page 20 ASMB-816 User Manual...

  • Page 21: Chapter 2 Connections

    Chapter Connections...

  • Page 22: Introduction

    Introduction You can access most of the connectors from the top of the board as it is being installed in the chassis. If you have a number of cards installed, you may need to par- tially remove a card to make all the connections. USB Ports (USB12, USB3_12, USB3_34, USB3_56, USB9_10, USB11, USB13_14) The four USB 3.0 ports on the rear plate and two USB3.0 on-board ports could reach...

  • Page 23: Lan Ports (Lan1~Lan5)

    LAN Ports (LAN1~LAN5) The ASMB-816 is equipped with two 10GbE (LAN3 and LAN4), two GbE LAN (LAN1,2) ports and one dedicated IPMI LAN (LAN5) port. One of 10 GbE LAN (LAN4) can be used as IPMI LAN as well for system management. They are all with RJ-45 jacks and supported by all major network operating systems.

  • Page 24: Serial Ports (Com1~2)

    Serial Ports (COM1~2) The ASMB-816 offers one serial port on the rear plate and one 2.50mm onboard with 2 x 5-pin pitch. PS2 Keyboard and Mouse Connectors (KBMS2) The 6-pin KBMS2 connector is for additional keyboard & mouse device usage. ASMB-816 User Manual...

  • Page 25: Cpu Fan Connector (Cpufan0)

    CPU Fan Connector (CPUFAN0) If a fan is used, this connector supports cooling fans that draw up to 1.5A (18W). System Fan Connector (SYSFAN0~4) ASMB-816 User Manual...

  • Page 26: Front Panel Connector (Jfp1)

    Front Panel Connector (JFP1) There are several external switches and LEDs to monitor and control the ASMB-816. One front panel convert cable (P/N: 1700031926-11) for the onboard 2.0 to 2.54 mm pitch header is provided in the accessory box. 2.9.1 Power LED (JFP1 Pins 14, 16) JFP1 pin 14 and pin 16 are for the power LED.

  • Page 27: Reset Connector (Jfp1 Pins 2, 4)

    2.9.4 Reset Connector (JFP1 Pins 2, 4) Many computer cases offer the convenience of a reset button. 2.9.5 Case Open (JCASE1) A chassis intrusion header is located at JCASE1 on the motherboard. Attach the appropriate cable from the chassis to be informed of a chassis intrusion when the chassis is opened.

  • Page 28: Sata And M.2 Connector (Sata0~7, M2_22110)

    2.11 SATA and M.2 Connector (SATA0~7, M2_22110) ASMB-816 features eight serial ATA III interfaces (up to 600 MB/s) which eases cabling to hard drives with thin and long cables. The M.2 2280/22110 connector can support both SATA and PCIe SSD devices. Note! Please pay attention to one MB screw hole H4 allocated in the M.2 area.

  • Page 29: Pcie Expansion Slots

    2.12 PCIe Expansion Slots The ASMB-816 provides seven expansion slots. Riser card for 1U or 2U chassis can be used in slot-6 only. Slot Length Link PCI-E Generation PCIe link from SLOT1 PCIe x4 PCIe x4 SLOT2 PCIe x16 PCIe x16 SLOT3 PCIe x8 PCIe x4...

  • Page 30: Auxiliary Power Connector (Atxpwr1/Atx12V1/Atx12V2)

    2.13 Auxiliary Power Connector (ATXPWR1/ ATX12V1/ATX12V2) Note! Please use a power supply which is of SSI type; minimum output should be at least 500W with 5Vsb @2.5A. ATXPWR1 & ATX12V1 should be all connected with power supply, otherwise ASMB-816 will not boot up normally. ATX12V2 should be connected if CPU TDP is over 207W or total memory capacity is over 512GB.

  • Page 31: Hd Audio Interface Connector (Hdaud1)

    HD Audio Interface Connector (HDAUD1) ASMB-816 has one audio connector for Advantech's audio board (P/N: PCA-AUDIO- HDB1E) installation. 2.15 LPC Connector (LPC2) ASMB-816 has one LPC connector that can be used for Advantech's TPM Module (P/N: PCA-TPM-00A1E, PCA-TPM-00B1E) for security management. ASMB-816 User Manual...

  • Page 32: Cmos Clear And Me Update Connector (Jcmos1, Jme1)

    2.16 CMOS Clear and ME Update Connector (JCMOS1, JME1) Setting jumper from pin 1-2 to pin 2-3, then back to pin 1-2 to reset CMOS data. JME1 JCMOS1 2.17 PMBUS Connector (PMBUS1) PMBUS connector is reserved for communication with power supply via BMC. ASMB-816 User Manual...

  • Page 33: Front Panel Smbus Connector (Smbus1)

    2.18 Front Panel SMBUS Connector (SMBUS1) 2.19 IPMI Module Connector (BMC_CN1, BMC_CN2) Enabling IPMI feature through BMC_CN1 and BMC_CN2. The BMC module has already been pre-installed on ASMB-816I and ASMB-816T2 sku. ASMB-816 User Manual...

  • Page 34: Volt1 Connector (Volt1)

    2.20 VOLT1 Connector (VOLT1) VOLT1 connects to the alarm board on the Advantech chassis. These alarm boards give warnings if a power supply or fan fails, if the chassis overheats, or if the back- plane malfunctions. 2.21 GPIO Connector (GPIO1)

  • Page 35: Intel Virtual Raid (Vroc1)

    2.22 Intel Virtual RAID (VROC1) Intel VROC license key of VMD allows NVMe SSDs to connect via PCIe and directly manage the CPU for better RAID performance. Enable NVMe SSD RAID, hot-plug and LED management features via the VROC connector. 2.23 NVMe RAID LED Control (PEHP1) Connect to the storage chassis to enable NVMe RAID LED control feature.
  • Page 36 ASMB-816 User Manual...

  • Page 37: Ami Bios

    Chapter AMI BIOS...

  • Page 38: Introduction

    Introduction With the AMI BIOS Setup program, you can modify BIOS settings and control the special features of your computer. The Setup program uses a number of menus for making changes and turning the special features on or off. This chapter describes the basic navigation of the ASMB-816 setup screens.

  • Page 39: Bios Setup

    BIOS Setup 3.2.1 Main Menu Press <Del> during bootup to enter AMI BIOS CMOS Setup Utility; the Main Menu will appear on the screen. Use arrow keys to select among the items and press <Enter> to accept or enter the sub-menu. The Main BIOS setup screen has two main frames.

  • Page 40: Advanced Bios Features Setup

    3.2.2 Advanced BIOS Features Setup Select the Advanced tab from the ASMB-816 setup screen to enter the Advanced BIOS setup screen. You can select any of the items in the left frame of the screen, such as CPU configuration, to go to the sub menu for that item. You can display an Advanced BIOS Setup option by highlighting it using the <Arrow>...
  • Page 41 3.2.2.1 Trusted Computing Security Device Support  Enables or disables BIOS support for security device. Note! You need to purchase Advantech LPC TPM module to use TPM func- tion. P/N: PCA-TPM-00A1E/PCA-TPM-00B1E. ASMB-816 User Manual...
  • Page 42 3.2.2.2 ACPI Settings Lock Legacy Resources  Enable or Disable lock legacy resources feature. 3.2.2.3 IT8528 EC Super IO Configuration ASMB-816 User Manual...
  • Page 43 Serial Port 1 Configuration  – Serial Port Enable or Disable serial port 1. – Change Settings To select an optimal setting for serial port 1. ASMB-816 User Manual...
  • Page 44 Serial Port 2 Configuration  – Serial Port Enable or Disable serial Port 2. – Change Settings To select an optimal setting for serial port 2. ASMB-816 User Manual...
  • Page 45 3.2.2.4 IT8528 HW Monitor Watchdog Timer  Enable or Disable the watchdog timer function. CPU ACPI Shutdown Temperature  Enable or Disable the ACPI shutdown temperature threshold. When the system reaches the shutdown temperature, it will be automatically shut down by ACPI OS to protect the system from overheat damage.
  • Page 46 3.2.2.5 Serial Port Console Redirection ASMB-816 User Manual...
  • Page 47 Console Redirection Settings  – Terminal Type Select a terminal type to be used for console redirection. Options available: VT100/VT100+/ANSI/VT-UTF8. – Bits Per Second Select the baud rate for console redirection. Options available: 9600/19200/57600/115200. – Data Bits – Parity A parity bit can be sent with the data bits to detect some transmission errors. Even: parity bit is 0 if the number of 1's in the data bits is even.
  • Page 48 – Recorder Mode When this mode enabled, only text will be send. This is to capture Terminal data. Options available: Enabled/Disabled. – Resolution 100x31 Enables or disables extended terminal resolution. – Putty Keypad Select function key and keypad on putty. Legacy Console Redirection Settings ...
  • Page 49 3.2.2.6 PCI Subsystem Settings Above 4G Decoding  Enable or Disable 64-bit capability. Devices to be decoded in above 4G address space (only if the system supports 64-bit PCI decoding). Note! Some graphic or GPU cards need to enable 4G Decoding. ASMB-816 User Manual...
  • Page 50 3.2.2.7 USB Configuration Legacy USB Support  This is for supporting USB device under a legacy OS such as DOS. When choosing “Auto”, the system will automatically detect if any USB device is plugged into the computer and enable USB legacy mode when a USB device is plugged, or disable USB legacy mode when no USB device is attached.
  • Page 51 Device Reset Time-out  Selects the USB device reset time-out value. [10,20,30,40 sec] Device Power-up Delay  This item appears only when Device power-up delay item is set to [manual]. ASMB-816 User Manual...
  • Page 52 Mass Storage Devices  Default is “Auto” to enumerate mass storage devices according to media format. ASMB-816 User Manual...
  • Page 53 3.2.2.8 Network Stack Configuration Enable or Disable UEFI network stack function. ASMB-816 User Manual...
  • Page 54 3.2.2.9 CSM Configuration CSM Support  Enables or Disables UEFI CSM (Compatibility Support Module) to support a leg- acy PC boot process. Default is Disabled. ASMB-816 User Manual...
  • Page 55 GateA20 Active  This item is useful when RT code is executed above 1MB. When it's set as “Upon Request”, GA20 can be disabled using BIOS services. When it's set as “Always”, it does not allow disabling of GA20. ASMB-816 User Manual...
  • Page 56 Option ROM Messages  To “Force BIOS or keep current” to set the display mode for Option ROM. Boot option filter  Change UEFI/legacy ROM priority for boot option. ASMB-816 User Manual...
  • Page 57 Network  Control the execution of UEFI and legacy PXE OpROM. Storage  Control the execution of UEFI and legacy storage OpROM. ASMB-816 User Manual...
  • Page 58 Video  Control the execution of UEFI and Legacy Video OpROM. Other PCI devices  Determines OpROM execution policy for devices other than Network., Storage, or Video. ASMB-816 User Manual...
  • Page 59 3.2.2.10 iSCSI Configuration Host iSCSI Configuration  The worldwide unique name of iSCSI Initiator. Only IQN format is accepted. Range is from 4 to 223. ASMB-816 User Manual...

  • Page 60: Platform Configuration

    3.2.3 Platform Configuration ASMB-816 User Manual...
  • Page 61 3.2.3.1 PCH Configuration PCH Devices  This item is to set up IO Controller Hub devices. Restore AC Power Loss  Specify what state to go to when power is re-applied after a power failure (G3 state). ASMB-816 User Manual...
  • Page 62 – VGA Priority Determines priority between onboard and 1st off-board video device found. Onboard VGA Controller  Enable/Disable Onboard VGA Controller (ASPEED AST2500). ASMB-816 User Manual...
  • Page 63 Detected Display Device From  Select to display from which PCIe Slot. RTC Wake system from S5  Enable or Disable system wake on alarm event. ASMB-816 User Manual...
  • Page 64 PCI Express Configuration  PCIE SLOTS  PCIE SLOTS Root Port Settings. ASMB-816 User Manual...
  • Page 65 PCIe M.2 Slot  M.2 PCIE SLOT Root Port Settings. PCH SATA Configuration  ASMB-816 User Manual...
  • Page 66 – SATA Controller Enable or Disable SATA devices. – Configure SATA as Set as AHCI or RAID when SATA controllers are enabled. – Support ALPM Enable or Disable Aggressive Link Power Management (ALPM) protocol for Advanced Host Controller Interface-compliant (AHCI) Serial ATA (SATA) devices.
  • Page 67 PCH sSATA (M.2) Configuration  – sSATA M.2 Controller Enable or Disable SATA Controller. – sSATA M.2 Port Enable or Disable SATA port. ASMB-816 User Manual...
  • Page 68 Networking  – LAN1 Controller Enable or Disable Intel I210 Controller support. – LAN1 PXE OpROM Enable or Disable Boot option for Intel I210 controller. – LAN2 Controller Enable or Disable Intel I210 Controller support. – LAN2 PXE OpROM Enable or Disable Boot option for Intel I210 controller. –...

  • Page 69: Socket Configuration

    3.2.3.2 Server ME Configuration This page shows the Server ME configuration information. 3.2.4 Socket Configuration ASMB-816 User Manual...
  • Page 70 3.2.4.1 Processor Configuration Per-Socket Configuration  Use this to select how many processor cores you want to activate when you are using a dual or quad core processor. Hyper-threading [All]  Enable or Disable Intel Hyper Threading technology. Hardware Prefetcher ...
  • Page 71 Enable or Disable the Safer Mode Extensions. Safer Mode Extensions (SMX) provide a means for system software to launch an MLE and establish a mea- sured environment within the platform to support trust decisions by end users. AES-NI  This item is Enables or Disables CPU advanced encryption standard instruc- tions.
  • Page 72 3.2.4.3 IIO Configuration Socket0 PCIe Configuration  PCIe port bifurcation control and select target link speed as Gen1, Gen2, Gen3, Gen4 and Auto. ASMB-816 User Manual...
  • Page 73 ASMB-816 User Manual...
  • Page 74 ASMB-816 User Manual...
  • Page 75 ASMB-816 User Manual...
  • Page 76 Intel VT for Directed I/O (VT-d)  Enable or Disable Intel Virtualization Technology for Directed I/O. ASMB-816 User Manual...
  • Page 77 Intel VMD technology  Enable or Disable Intel Volume Management Device Technology. PCIe Hot Plug  Enable or Disable PCIe hot plug for Intel VROC, while using Intel VROC, please enable this item. PCI-E ASPM Support (Global)  Set the ASPM level to Disable, Per-Port or L1 state only. ASMB-816 User Manual...
  • Page 78 3.2.4.4 Advanced Power Management Configuration CPU P State Control  ASMB-816 User Manual...
  • Page 79 ASMB-816 User Manual...
  • Page 80 CPU C State Control  Package C State Control  ASMB-816 User Manual...

  • Page 81: Server Management

    3.2.5 Server Management BMC Support  Enable or Disable interfaces to communicate with BMC. Wait for BMC  If enabled, motherboard will wait 30 ~ 60 seconds until BMC module boots up completely. After that, the normal BIOS post screen will be displayed. If disabled, motherboard will not wait for BMC module's response.
  • Page 82 3.2.5.1 System Event Log SEL Components  Enable/Disable all features of system event logging during boot. Erase SEL  Choose options for erasing SEL. When SEL is Full  Choose options for reactions to a full SEL. Log EFI Status Codes ...
  • Page 83 ASMB-816 User Manual...
  • Page 84 3.2.5.2 BMC Self Test Log Erase Log  Erase log options. When Log is Full  Select the action to be taken when log is full. ASMB-816 User Manual...
  • Page 85 3.2.5.3 BMC Network Configuration Configuration Address Source  Select to configure LAN channel parameters statically or dynamically (by BMC). Unspecified option will not modify any BMC network parameters during BIOS phase. ASMB-816 User Manual...
  • Page 86 3.2.5.4 BMC User Settings ASMB-816 User Manual...

  • Page 87: Security

    3.2.6 Security ASMB-816 User Manual...
  • Page 88 Note! With AC power & Battery. Short CMOS1 Jumper: Date/Time & Password: Keep Setting: reset to default AC power and CMOS battery are removed. Short CMOS1 Jumper: Date/Time: reset to default Password: Keep Setting: reset to default ASMB-816 User Manual...
  • Page 89 Secure Boot  – Secure Boot Secure Boot feature is active if Secure Boot is Enabled. Platform Key (PK) is enrolled and the System is in User mode. The mode change requires plat- form reset. – Secure Boot mode Secure Boot mode options. ASMB-816 User Manual...
  • Page 90 – Restore Factory Keys Force System to User Mode. – Key Management Enables expert users to modify Secure Boot Policy variables without full authentication. ASMB-816 User Manual...

  • Page 91: Boot

    3.2.7 Boot Setup Prompt Timeout  Number of seconds to wait for setup activation key. Bootup NumLock State  Select the keyboard NumLock state as "On" or "Off". Quiet Boot  Enable or Disable quiet boot option. Boot Option Priorities ...

  • Page 92: Save & Exit

    3.2.8 Save & Exit Save Changes and Exit  Exit system setup after saving the changes. Discard Changes and Exit  Exit system setup without saving any changes. Save Changes and Reset  Reset the system after saving changes. Discard Changes and Reset ...

  • Page 93: Driver Installation

    Chapter Driver Installation...

  • Page 94: Before Beginning

    To facilitate the installation of the enhanced display drivers and utility software, read the instructions in this chapter carefully. The drivers for the ASMB-816 are available online for download from the Advantech support website at https://advt.ch/ searc8f16d. Before beginning, it is important to note that most display drivers need to have the relevant software application already installed on the system prior to installing the enhanced display drivers.

  • Page 95: Lan Configuration

    4.2.3 LAN Configuration The ASMB-816 has two Gigabit Ethernet LAN connections via dedicated PCI Express x1 lanes: GbE LAN1 - Intel I210 and GbE LAN2 - I210; two 10G Base-T LAN connectors LAN3 and LAN4 - Intel X550 PHY. They eliminate bottlenecks in network data flow when incorporating Gigabit Ethernet at 10Gbps.
  • Page 96 ASMB-816 User Manual...

  • Page 97: Appendix A Programming The Watchdog Timer

    Appendix Programming the Watchdog Timer...

  • Page 98: Watchdog Timer Overview

    The ASMB-816’s watchdog timer can be used to monitor system software operation and take corrective action if the software fails to function within the programmed period. This section describes the operation of the watchdog timer and how to pro- gram it. Watchdog Timer Overview The watchdog timer is built in to the EC controller IT8528E.
  • Page 99 Wait IBF clear 0x29A, BIT1, = 0 Write 0x04 to 0x299 port (Warm) Reset event Wait IBF clear 0x29A, BIT1, = 0 Write 0x28 to 0x29A Start watchdog Wait 1 ~ 9 Wait IBF clear 0x29A, BIT1, = 0 Write 0x29 to 0x29A Stop watchdog Wait IBF clear 0x29A, BIT1, = 0...
  • Page 100 ASMB-816 User Manual...

  • Page 101: Appendix B I/O Pin Assignments

    Appendix I/O Pin Assignments...

  • Page 102: Usb2.0 Header (Usb9_10, Usb13_14)

    USB2.0 Header (USB9_10, USB13_14) Table B.1: USB Header (USB9_10, USB13_14) Signal Signal USB_VCC5 USB_VCC5 USB_D- USB_D- USB_D+ USB_D+ USB3.0 Header (USB3_56) Table B.2: USB Header (USB3_56) Signal Signal +5 V STDA_SSRX- STDA_SSRX+ STDA_SSRX-TX- STDA_SSRX+TX+ NC (reserved for OC pin) STDA_SSRX+TX+ STDA_SSRX-TX- STDA_SSRX+ STDA_SSRX-...

  • Page 103: Vga Connector (Vga1)

    VGA Connector (VGA1) Table B.3: VGA Connector (VGA1) Signal Signal GREEN BLUE H-SYNC V-SYNC RS-232 Interface (COM2) 2 4 6 8 1 3 5 7 9 Table B.4: RS-232 Connector (COM2) Signal ASMB-816 User Manual...

  • Page 104: External Keyboard Connector (Kbms2)

    External Keyboard Connector (KBMS2) Table B.5: External Keyboard Connector (KBMS2) Signal KB CLK KB DATA MS DATA MS CLK System & CPU Fan Power Connector (SYSFAN0~4, CPUFAN0) Table B.6: CPU FAN Connector (CPUFAN0) CPUFAN0 +12V CPU_TACH CPU0_PWM Table B.7: SYS FAN Connector (SYSFAN0~4) SYS FAN0 SYS FAN1 SYS FAN2...

  • Page 105: Smbus Connector (Smbus1)

    SMBus Connector (SMBUS1) Table B.8: Front panel SMBus Connector (SMBUS1) Signal SMB_SCL_FRU SMB_SDA_FRU LAN Ports (LAN1~5) Table B.9: LAN RJ-45 Port (LAN1~2, LAN3_4, LAN5) Signal Signal MID0+ MID2+ MID0- MID2- MID1+ MID3+ MID1- MID3- ASMB-816 User Manual...

  • Page 106: Audio Connector (Hdaud1)

    Audio Connector (HDAUD1) Table B.10: Front Panel Audio Connector (HDAUD1) Signal Signal ACZ_VCC ACZ_SYNC ACZ_BITCLK ACZ_SDOUT ACZ_SDIN0 ACZ_SDIN1 ACZ_RST ACZ_12V B.10 Alarm Board Connector (VOLT1) Table B.11: Alarm Board Connector (VOLT1) Signal Signal 5VSB +3.3V -12V +12V B.11 Case Open Connector (JCASE1) Table B.12: Case Open Connector (JFP1) Signal CASEOP...

  • Page 107: Sata Sgpio Connector (Sgpio1)

    B.12 SATA SGPIO Connector (SGPIO1) Table B.13: SATA SGPIO Connector (SGPIO1) Signal SCLOCK_PCH SLOAD_PCH SDATAOUT0_PCH SDATAOUT1_PCH B.13 LPC Connector (LPC2) Table B.14: LPC Connector (LPC1) Signal Signal CLK_24M_LPCCN LPC_AD1 PLTRST_LPC LPC_AD0 LPC_FRAME +3.3V LPC_AD3 LPC_AD2 SMB_SCL_LPC SERIRQ_PCH SMB_SDA_LPC +5V_AUX ASMB-816 User Manual...

  • Page 108: Clear Cmos Connector (Jcmos1, Jme1)

    B.14 Clear CMOS Connector (JCMOS1, JME1) Table B.15: Clear CMOS Connector (JCMOS1, JME1) JCMOS1 JME1 Signal Signal RTC_RST_PCH HDA_SDOUT_PCH +3.3V_AUX B.15 PMBUS Connector (PMBUS1) Table B.16: PMBUS Connector (PMBUS1) Signal SMB_SCL_PM SMB_SDA_PM SMB_ALT_PM +3.3V B.16 GPIO Connector (GPIO1) Table B.17: GPIO Connector (GPIO1) Signal Signal EC_GPIO0...
  • Page 109 ASMB-816 User Manual...
  • Page 110 No part of this publication may be reproduced in any form or by any means, electronic, photocopying, recording or otherwise, without prior written permis- sion of the publisher. All brand and product names are trademarks or registered trademarks of their respective companies. © Advantech Co., Ltd. 2021...

This manual is also suitable for:

Asmb-816-00a1Asmb-816i-00a1Asmb-816t2-00a1
