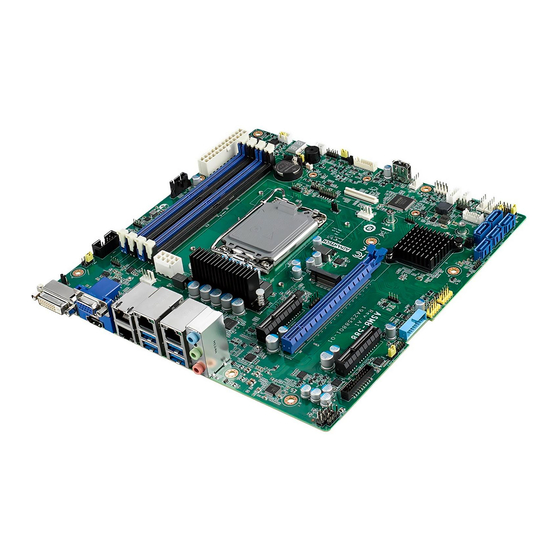

Advantech ASMB-588 Startup Manual

LGA 1700 12th Gen Intel
Server Board with 4 x DDR5, 3 x PCIe, 6 x USB
3.2, 5 x SATA 3, Quad/Dual LAN, & IPMI
Startup Manual
Packing List
Before you begin installing your card, please make sure that
the following items have been shipped:
• 1 × Startup manual
• 2 × Serial ATA HDD data cables
• 2 × Serial ATA HDD power cables
• 1 × COM cable (for connection to rear panel)
• 1 × I/O port bracket
• 1 × Warranty card
• 1 × Screw for M.2 devices
If any of these items are missing or damaged, please con-
tact your distributor or sales representative immediately.
Note:
Acrobat Reader is required to view any PDF
file.Acrobat Reader can be downloaded at:
http://www.adobe.com/downloads/ (Acrobat is a
trademark of Adobe)
For more information on this and other Advantech products,
please visit our website at:
http://www.advantech.com
For technical support and service, please visit our support
website for ASMB-588 at:
https://advt.ch/asmb588
Register your products on our website and get 2 months
extra warranty for FREE at:
http://www.register.advantech.com
This manual is for the ASMB-588 series Rev. A1.
Part No. 2042058800
Printed in China
Core™ MicroATX
®
Specifications
Standard Functions
• CPU: LGA 1700 12th Gen Intel
• BIOS: AMI 256 Mb SPI BIOS
• Chipset: Intel W680
• System memory: Dual Channel DDR5 ECC/Non-ECC
Note:
• SATA3 interface: 5 x SATA 3 6Gb/s ports to support Intel
• Serial ports: Three serial ports onboard, only support
• Watchdog timer: 255 level timer intervals (sec/min)
• USB 3.2: Supports up to 6 x USB 3.2 ports, 4 x Gen2
• USB 2.0: Supports up to 5 x USB 2.0 ports (1 x Type-A)
Display Interface
• Chipset: CPU integrated Intel HD graphics controller
• Display memory: 1 GB maximum shared memory with
• Resolution:
Ethernet Interface
• Interface: 10/100/1000 Mbps
• Controller: LAN1: Intel
Mechanical and Environmental
• Dimensions (L x W): 244 x 244 mm (9.6 x 9.6 in)
• Power supply voltage: +3.3V, +5V, ±12V, 5V
• Power consumption: Max. load: +3.3V @ 0.76A, +5V @
• Operating temperature: 0 ~ 60 °C; 32 ~ 140 °F(depends on
1st Edition
September 2022
• Weight: 0.5 kg; 1.1 lb (weight of board)
sor
4400/4000/3600 MHz unbuffered DIMM, Max. 128 GB
Due to the inherent limitations of PC architecture,
the system may not fully detect 128 GB RAM
when 128 GB RAM is installed.
Rapid Storage Technology with software RAID 0, 1, 10, &
5 (for Windows only)
RS-232 (1 x inserted in rear I/O via COM cable connec-
tion)
ports in rear I/O and 2 x Gen1 ports from on-board pin
header
2 GB and above system memory installed (BIOS default
is 256 MB)
- Supports VGA up to 1920x1200 resolution @60 Hz
refresh rate
- Supports DVI up to 1920x1200 resolution @60 Hz
refresh rate
- Supports HDMI 2.0 up to 2K/4K resolution @60 Hz
refresh rate
I219LM; LAN2 ~ LAN4: Intel
®
(LAN2 is BMC shared NIC; LAN3/4 is for G4 SKU only)
0.92A, +12V @ 0.03A, +12V (8P) @ 4.82A, +5V
CPU speed and cooler solution)
ASMB-588 Startup Manual 1
Core™ i9/i7/i5/i3 proces-
®
I210AT
®
SB
@ 0.15A
SB
