RC 001
S-DIAS RealTimeClock Module
Instruction Manual
Date of creation: 26.04.2016
Version date: 26.07.2023
Article number: 20-012-001-E

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the RC 001 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for SIGMATEK RC 001

  • Page 1 RC 001 S-DIAS RealTimeClock Module Instruction Manual Date of creation: 26.04.2016 Version date: 26.07.2023 Article number: 20-012-001-E...
  • Page 2 (print, photocopy, microfilm or in any other process) without the express permission. We reserve the right to make changes in the content without notice. The SIGMATEK GmbH & Co KG is not responsible for technical or printing errors in the handbook and assumes no responsibility for damages that occur...

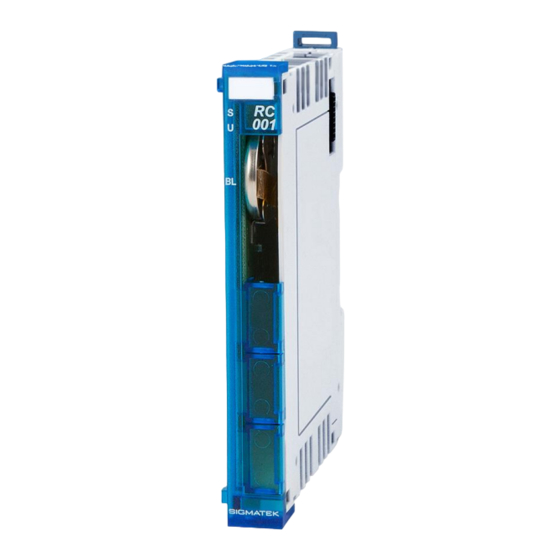

  • Page 3 S-DIAS RealTimeClock Module RC 001 with 1 RealTimeClock battery buffered The S-DIAS RC 001 RealTimeClock module provides battery buffered date and time information for processor modules on the bus, which have no integrated real-time clock. Buffering of the RealTimeClock without supply is realized with a Lithium battery.
  • Page 4: Table Of Contents

    RC 001 S-DIAS REALTIMECLOCK MODULE Contents Introduction ................5 Target Group/Purpose of this Operating Manual ...... 5 Important Reference Documentation ......... 5 Contents of Delivery ..............5 Basic Safety Directives ............6 Symbols Used ................6 Disclaimer ..................8 General Safety Directives ............9 Software/Training ...............
  • Page 5 S-DIAS REALTIMECLOCK MODULE RC 001 Status LEDs ................. 17 Label Field ................... 18 Buffer Battery ................ 19 Assembly/Installation ............20 Check Contents of Delivery ............20 Mounting ..................21 10 Addressing ................23 10.1 Address Mapping Overview ............23 11 Supported Cycle Times ............24 11.1...
  • Page 6 RC 001 S-DIAS REALTIMECLOCK MODULE 15.1 Service ..................28 15.2 Repair ................... 28 16 Disposal ..................28 Page 4 26.07.2023...
  • Page 7: Introduction

    General knowledge of automation technology is required. Further help and training information, as well as the appropriate accessories can be found on our website www.sigmatek-automation.com. Our support team is happily available to answer your questions. Please see our website for our hotline number and business hours.
  • Page 8: Basic Safety Directives

    RC 001 S-DIAS REALTIMECLOCK MODULE Basic Safety Directives Symbols Used The following symbols are used in the operator documentation for warning and danger messages, as well as informational notes: DANGER Danger indicates that death or serious injury will occur, if the specified measures are not taken.
  • Page 9 S-DIAS REALTIMECLOCK MODULE RC 001 INFORMATION Information  Provides important information on the product, handling or relevant sections of the documentation, which require attention. 26.07.2023 Page 7...
  • Page 10: Disclaimer

    It does not guarantee properties under the warranty. Please thoroughly read the corresponding documents and this operating manual before handling a product. SIGMATEK GmbH & Co KG is not liable for damages caused through, non-compliance with these instructions or applicable regulations.
  • Page 11: General Safety Directives

    S-DIAS REALTIMECLOCK MODULE RC 001 General Safety Directives The Safety Directives in the other sections of this operating manual must be observed. These instructions are visually emphasized by symbols. INFORMATION According to EU Directives, the operating manual is a component of a product.
  • Page 12: Software/Training

    RC 001 S-DIAS REALTIMECLOCK MODULE CAUTION Handle the device with care and do not drop or let fall. Prevent foreign bodies and fluids from entering the device. The device must not be opened! Manipulez l’appareil avec précaution et ne le laissez pas tomber.
  • Page 13: Standards And Directives

    The product was constructed in compliance with the following European Union directives and tested for conformity. 3.1.1 EU Conformity Declaration EU Declaration of Conformity The product RC 001 conforms to the following European directives: • 2014/35/EU Low-voltage Directive • 2014/30/EU Electromagnetic Compatibility (EMC Directive) •...
  • Page 14: Type Plate

    RC 001 S-DIAS REALTIMECLOCK MODULE Type Plate HW: Hardware version SW: Software version Page 12 26.07.2023...
  • Page 15: Technical Data

    S-DIAS REALTIMECLOCK MODULE RC 001 Technical Data Performance Data Real-time clock yes (battery buffered) Precision -50 ppm to +25 ppm (typ. -5 ppm) @ 0 °C ambient temperature -50 ppm to +25 ppm (typ. -20 ppm) @ 25 °C ambient temperature -95 ppm to +15 ppm (typ.
  • Page 16 RC 001 S-DIAS REALTIMECLOCK MODULE Page 14 26.07.2023...
  • Page 17: Miscellaneous

    Article number 20-012-001 Standard UL 508 (in preparation) INFORMATION The RC 001 module should only be used with processor modules without real-time clock, otherwise the clock time of the CPU is overwritten by the module. Environmental Conditions Storage temperature -20 ... +85 °C Environmental temperature 0 ...
  • Page 18: Mechanical Dimensions

    RC 001 S-DIAS REALTIMECLOCK MODULE Mechanical Dimensions Page 16 26.07.2023...
  • Page 19: Connector Layout

    S-DIAS REALTIMECLOCK MODULE RC 001 Connector Layout Status LEDs Module Status green module active no supply available BLINKING (5 Hz) no communication User yellow can be set from the application (e.g. the module LED can be set to blinking through the...
  • Page 20: Label Field

    RC 001 S-DIAS REALTIMECLOCK MODULE Label Field Manufacturer Weidmüller Type MF 10/5 CABUR MC NE WS Weidmüller article number 1854510000 Compatible printer Weidmüller Type Printjet Advanced 230V Weidmüller article number 1324380000 Page 18 26.07.2023...
  • Page 21: Buffer Battery

    S-DIAS REALTIMECLOCK MODULE RC 001 Buffer Battery The exchangeable buffer battery ensures that the clock time (RTC) of the module is preserved in the absence of a supply voltage. A lithium battery is installed at the manufacturer. The battery has enough capacity to preserve data in the absence of a supply voltage for up to 3 years.
  • Page 22: Assembly/Installation

    RC 001 S-DIAS REALTIMECLOCK MODULE Assembly/Installation Check Contents of Delivery Ensure that the contents of the delivery are complete and intact. See chapter 1.3 Contents of Delivery. INFORMATION On receipt and before initial use, check the device for damage. If the device is damaged, contact our customer service and do not install the device in your system.
  • Page 23: Mounting

    S-DIAS REALTIMECLOCK MODULE RC 001 Mounting The S-DIAS modules are designed for installation into the control cabinet. To mount the modules a DIN-rail is required. The DIN rail must establish a conductive connection with the back wall of the control cabinet. The individual S-DIAS modules are mounted on the DIN rail as a block and secured with latches.
  • Page 24 RC 001 S-DIAS REALTIMECLOCK MODULE Recommended minimum distances of the S-DIAS modules to the surrounding components or control cabinet wall: a, b, c … distances in mm (inches) Page 22 26.07.2023...
  • Page 25: Addressing

    S-DIAS REALTIMECLOCK MODULE RC 001 Addressing 10.1 Address Mapping Overview Address Size Access Description Reset (hex) (bytes) Type value 0000 reserved 0..0 C slave address offset 0002 Configurable from which address to write/read C slave byte number with control/status bit...
  • Page 26: Supported Cycle Times

    RC 001 S-DIAS REALTIMECLOCK MODULE Supported Cycle Times 11.1 Cycle Times below 1 ms (in µs) x= supported 11.2 Cycle Times equal to or higher than 1 ms (in ms) x= supported x= supported Page 24 26.07.2023...
  • Page 27: Hardware Class Rc001

    Hardware Class RC001 Hardware Class RC 001 for the S-DIAS RealtimeClock Module RC 001 This hardware class is used to control the RC 001 hardware module. The S-DIAS RealTimeClock module provides battery buffered date and time information for processor modules on the bus, which have no integrated real-time clock. More information on the hardware can be found in the module documentation.
  • Page 28: 12.2 Interfaces

    RC 001 S-DIAS REALTIMECLOCK MODULE 12.2 Interfaces 12.2.1 Clients The client must be connected to an S-DIAS port, an "SdiasOut"_[x]” server. SdiasIn Place The physical location of the hardware module is entered in this client. Up to 64 modules, 0 to 63, can be assigned.
  • Page 29: Transport/Storage

    S-DIAS REALTIMECLOCK MODULE RC 001 Transport/Storage INFORMATION This device contains sensitive electronics. During transport and storage, high mechanical stress must therefore be avoided. For storage and transport, the same values for humidity and vibration as for operation must be maintained! Temperature and humidity fluctuations may occur during transport.
  • Page 30: Maintenance

    RC 001 S-DIAS REALTIMECLOCK MODULE Maintenance INFORMATION During maintenance as well as servicing, observe the safety instructions from chapter 2 Basic Safety Directives. 15.1 Service This product was constructed for low-maintenance operation. 15.2 Repair INFORMATION In the event of a defect/repair, send the device with a detailed error description to the address listed at the beginning of this document.
  • Page 31 S-DIAS REALTIMECLOCK MODULE RC 001 Documentation Changes Change date Affected Chapter Note page(s) 28.04.2016 5 Mounting Graphics distances 30.11.2016 4 Buffer Battery Battery monitoring added 17.08.2017 1.4 Environmental Conditions Pollution Degree added 18.10.2017 3.2 Label Field Added chapter 5 Mounting Graphic replaced 25.05.2018...
  • Page 32 RC 001 S-DIAS REALTIMECLOCK MODULE Page 30 26.07.2023...
