Truss Bridge Assembly
Positioning the bridge
T
he FasTrack Extended Truss Bridge has been designed to be used as a lift out section for
applications where there is a walkway underneath the bridge. To make the bridge a lift out
simply position the piers on either side of the walkway opening and secure the piers with a 4
screws per pier, firmly mounting the piers in position. The rails on the bridge itself are flared
open to ensure they align themselves properly with the pins on the bridge mounting top pier
half. In addition to the pin/flared rail alignment there are also three spring steel contacts
underneath each rail for a solid electrical connection. The bridge can lifted off its piers and
placed back on them with ease.

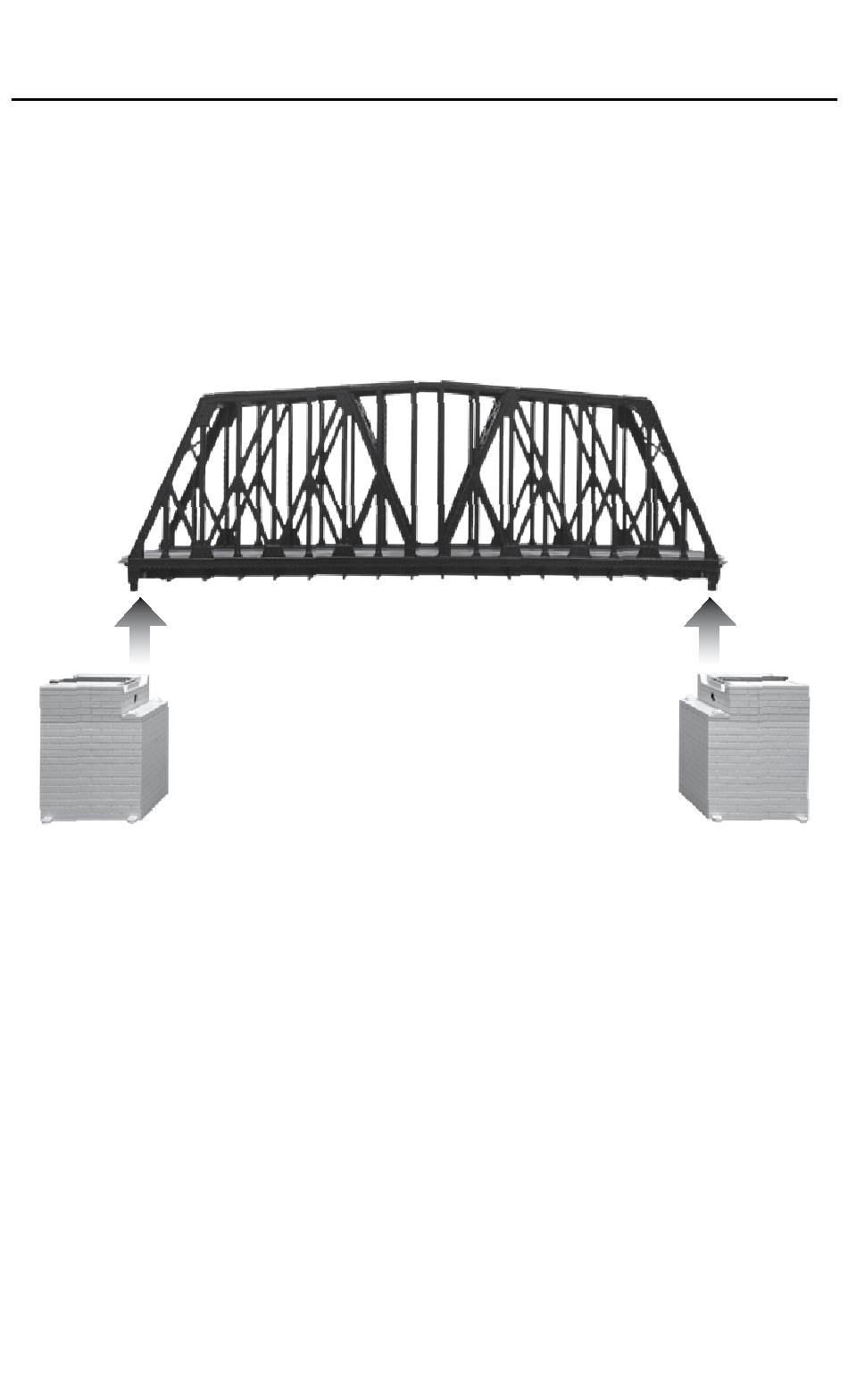

Figure 12. Lifting the bridge off the piers
11
