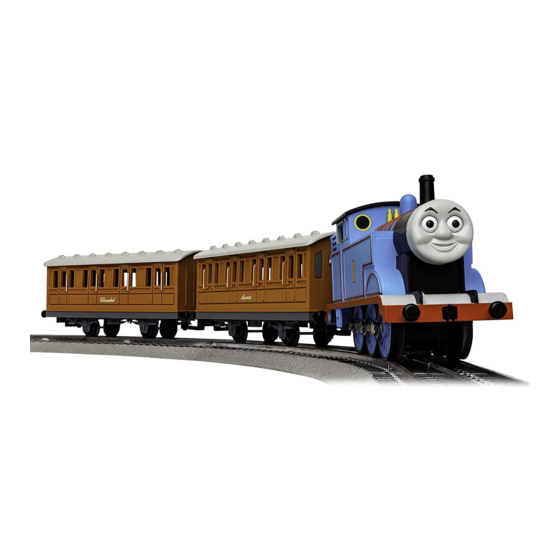

Ready-to-run train set
Hide thumbs Also See for Thomas & Friends:
Table of Contents

Advertisement

Quick Links

73-0069-250
12/07
Thomas & Friends ™
Thomas & Friends ™
Ready-to-Run Set
Ready-to-Run Set
Owner's Manual
Owner's Manual
Cauti o n—ElECtri C toy
not rECommEndEd for ChildrEn undEr Eight yEars of agE. as with
all ElECtriC produCts, prECautions should bE obsErvEd during
handli n g and usE to rEduCE thE ri s k of ElECtri C shoCk.
Transformer raTings—i n put: 120 vaC; 60 hz only.
aC output: 18 v; 40 va
©2004 Gullane (Thomas) Limited.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Thomas & Friends and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Lionel Thomas & Friends

Summary of Contents for Lionel Thomas & Friends

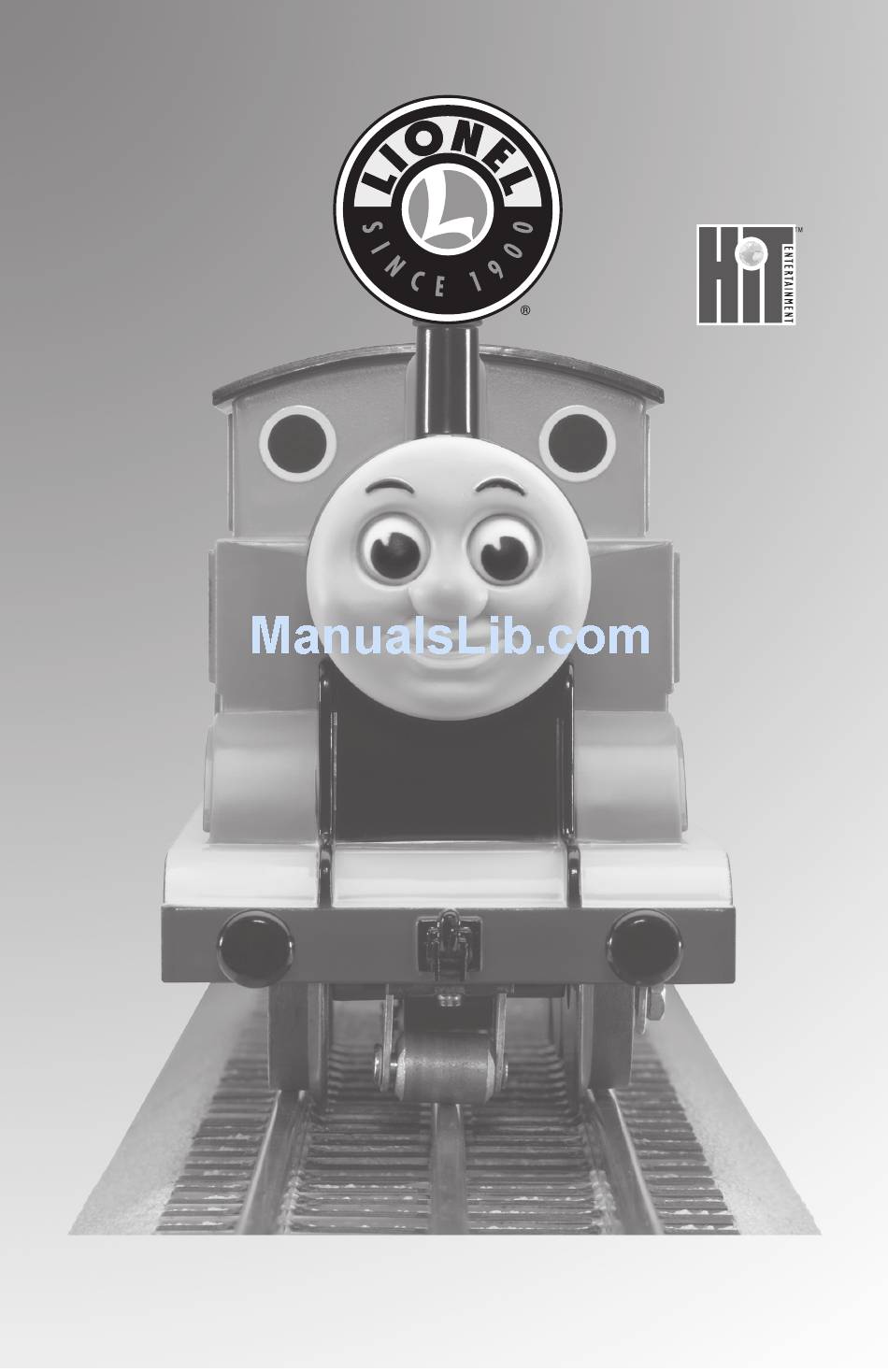

  • Page 1 73-0069-250 12/07 Thomas & Friends ™ Thomas & Friends ™ Ready-to-Run Set Ready-to-Run Set Owner’s Manual Owner’s Manual Cauti o n—ElECtri C toy not rECommEndEd for ChildrEn undEr Eight yEars of agE. as with all ElECtriC produCts, prECautions should bE obsErvEd during handli n g and usE to rEduCE thE ri s k of ElECtri C shoCk.
  • Page 2 In the event that such conditions exist, the transformer should not be used until properly repaired. The following Lionel marks may be used throughout this instruction manual and are protected under law. All rights reserved. Lionel...

  • Page 3: Table Of Contents

    • Three play figures • PowerMax Transformer with accessory wire • Three straight FasTrack track sections • Eight curved FasTrack track sections • One straight FasTrack terminal track section • Replacement traction tire • Owner’s Manual • Lionel RailRoader Club flyer...

  • Page 4: Creating Your Layout Operating Your Powermax Transformer Safely

    • Parents should periodically inspect this product for potential hazards and, if necessary, have them repaired by an authorized Lionel Service Center. In the event that such a condi- tion exists, the transformer should not be used until it has been properly repaired.

  • Page 5: Building Your Lionel Layout

    Creating your layout Building your Lionel layout our set comes with eight curved, three straight, and one terminal section of track. Figure 1 provides some examples of layouts that you can build with these track sections. By adding more FasTrack track sections, you can create an endless number of exciting track arrangements for more fun, action, and variety.

  • Page 6: Joining The Fastrack Track Sections

    Creating your layout Joining the fasTrack track sections asTrack track sections join together easily. With interlocking roadbed sections and large rail tabs, the track fits together securely so you always get good electrical contact. Take a look at Figure 2 to see how to join the track sections. 1.

  • Page 7: Wiring Your Powermax Transformer

    Creating your layout Wiring your Powermax Transformer onnect your FasTrack terminal section to the PowerMax Transformer. Use the wires that are already attached to the terminal section. Make sure that all connections are secure. Loose connections can produce extremely high temperatures. For this reason, do not touch the terminals or track connections during use.

  • Page 8: Running Your Train

    Refer to page 9 for information on coupling the cars. Power up your locomotive with your transformer. Your locomotive is designed to operate on 7-15 volts alternating cur- rent. Virtually all Lionel and Lionel-compatible alternating-current transformers are suitable. note! Do not power your locomotive with direct-current (DC) transformers.

  • Page 9: Coupling

    Running your train Coupling our locomotive and coaches feature operating couplers. To open the couplers by hand, slide the uncoupling tab towards the car. To uncouple the cars using an Uncoupling Track section (available separately, 6-12020), position the uncoupling trigger over the central magnet and press UNCOUPLE on the controller.

  • Page 10: Operating Your Trains With The Powermax Transformer

    Running your train operating your trains with the Powermax Transformer ou’re clear for departure! Move the throttle control handle forward to increase power to the track. The farther forward you push the handle, the faster your train will go. Quickly shutting off or throwing the throttle all the way forward will not result in note! an instant change in track voltage.

  • Page 11: Experiencing The Features Of The Powermax Transformer

    To correct this problem, simply turn off the PowerMax Transformer, then turn it back on. The PowerMax Transformer may cause random whistles in the Lionel Mighty note! Sounds of Steam TM tenders with a three-pin connector. We recommend that you a...
  • Page 12 Whistle/Horn activates the whistle or horn sound effect in your lionel locomotives. press Throttle Controls your locomotive’s speed. throw the whistlE/horn to begin the sound; release the button to end it.

  • Page 13: Attaching Three Thomas Faces

    Running your train attaching the three Thomas faces hree interchangeable facial expressions (surprised, tired and angry) easily slip on and off Thomas for fun and imaginative play. Refer to Figure 7. sUrPriseD TireD angrY Figure 7. Interchangeable faces To attach one of the faces, carefully position it in front of the permanent smiling Thomas face and push it straight on.

  • Page 14: Reverse Unit Procedure

    Running your train reverse unit procedure he electronic reverse unit inside your Lionel locomotive acts like the transmission in a car. When you apply power to the track, the locomotive moves in the direction specified by the reverse unit—or it sits in neutral, awaiting another power interruption. Power interruptions are the signal that tells the reverse unit to sequence to the next operational state.

  • Page 15: Powering Your Layout With The Powermax Transformer

    PowerMax Transformer operation Powering your layout with the Powermax Transformer our PowerMax Transformer provides a total output of 2.4 amps. Also, available voltage depends on how much load is on the output. Generally, track voltage is 0-16 volts (AC). You may momentarily approach or exceed the 2.4 amp limit of the PowerMax Transformer when pulling illuminated cars, or fighting over grades with heavy loads.

  • Page 16: Lubricating Your Locomotive

    We recommend that you purchase a Lionel Lubrication and Maintenance Kit (6-62927), available from your Lionel dealer. Two basic rules to keep in mind: never over-lubricate (a small amount will do) and avoid getting grease or oil on the locomotive’s wheels, contact roll- ers, or your track.

  • Page 17: Advanced Connections: Powering Two Isolated Blocks With Two Transformers

    Maintaining and servicing your set advanced connections: powering two isolated blocks with two transformers s you expand your layout, you may decide to create two isolated blocks of track. Trains in each block are controlled by separate transformers. Before you operate your trains on this type of layout, be sure that your transformers are in phase.

  • Page 18: Troubleshooting

    Maintaining and servicing your set Troubleshooting No lights or operation Be sure PowerMax Transformer is plugged in. Train runs, but WHISTLE, and DIRECTION buttons do not work Check track connections. The track must be connected to the “A” and “U” terminals on the Transformer.

  • Page 19: Notes

    Notes...

  • Page 20: Warranty Information

    Lionel L.L.C. or an authorized Lionel L.L.C. Service Center, together with proof of original purchase will, at the option of Lionel L.L.C., be repaired or replaced, without charge for parts or labor. In the event the defective product cannot be repaired, and a replacement is not available, a refund of the original purchase price will be granted.
