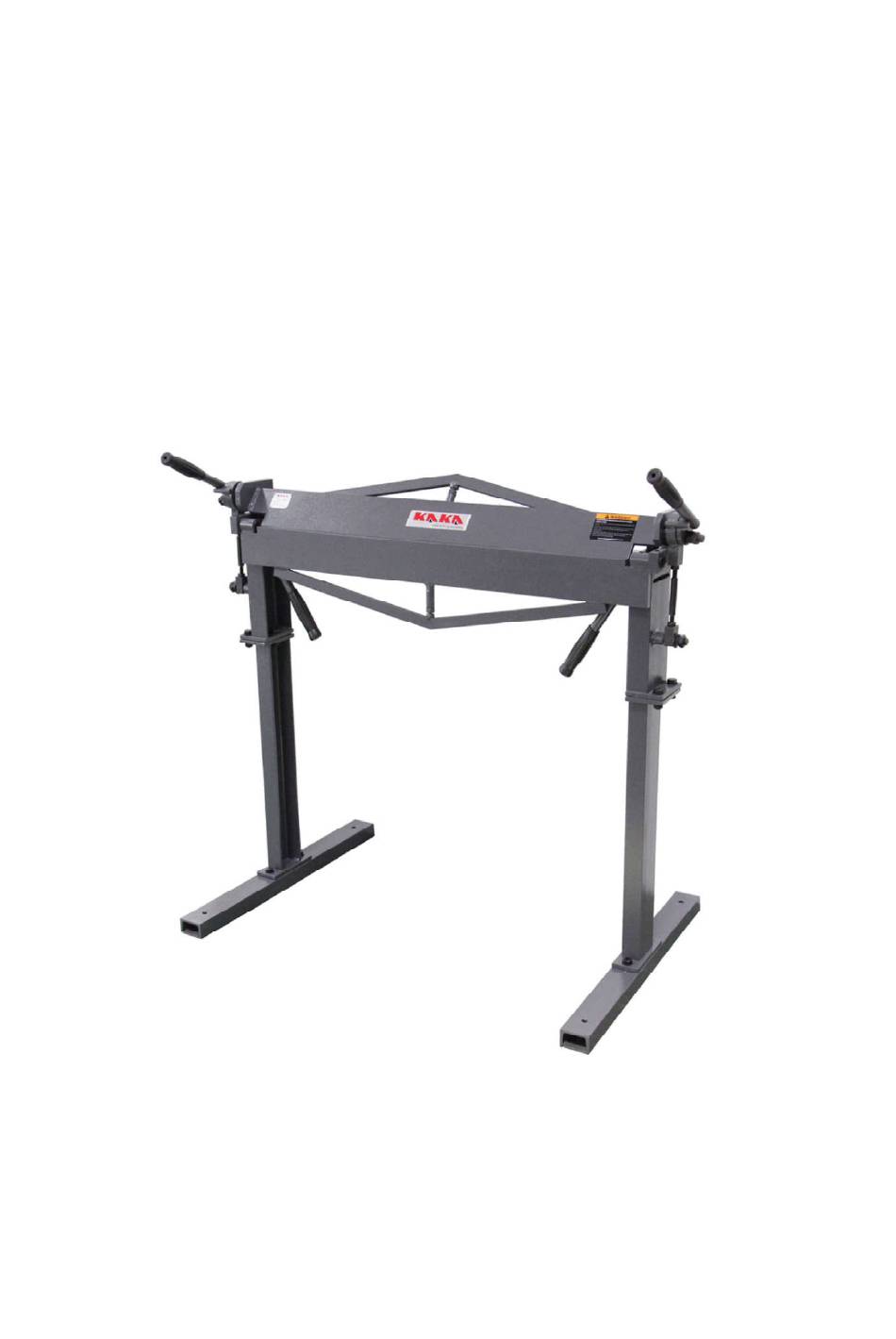

- Page 1 Metal Brake with Stand MB-36 (36″) MB-40 (40″) Operating Manual...
- Page 2 I. SAFETY WARNING & CAUTIONS : When using machine tools, machines, or equipment, basic safety precautions should always be followed to reduce the risk of fire and personal injury. READ ALL INSTRUCTIONS BEFORE USING THIS TOOL! KEEP WORK AREA CLEAN. Cluttered work benches and dark work areas may cause accidents or injury.
- Page 3 parts. Use of any other parts will void the warranty. Only use accessories intended for use with this tool. Approved accessories are available from the distributor. 14. DO NOT OPERATE TOOL IF UNDER THE INFLUENCE OF ALCOHOL OR DRUGS. Read warning labels on prescriptions to determine if your judgment of reflexes are impaired while taking drugs.
- Page 4 IV. ASSEMBLY requires that two people assist with The Brake is VERY heavy and assembly and installation. 1. Put the brake on the floor and position the mounting feet facing forward. 2. Put the left brake stand mounting pad facing against the left mounting foot. Assemble with the bolt, washer and nut and tighten securely.
- Page 5 Adjust for Thickness of Sheet Metal Lift the upper handles all the way up and loosen nuts to allow the bolt to move up or down. Using an open end wrench, turn the bolt clockwise and move the Press Plate Assembly down, or counterclockwise to move it up (for large stock).
- Page 6 IX．PARTS LIST...
- Page 7 Part No. Description Part No. Description Handle cover Bolt M16x35 Left crank handle Upper press plate Washer Bending leaf Left eccentric bushing Leg for stand Nut M10 Level plate for stand Connecting shaft Frame Nut M10-turn left Turning shaft Lock nut M16 Right eccentric bushing Square steel holder Right crank handle...
