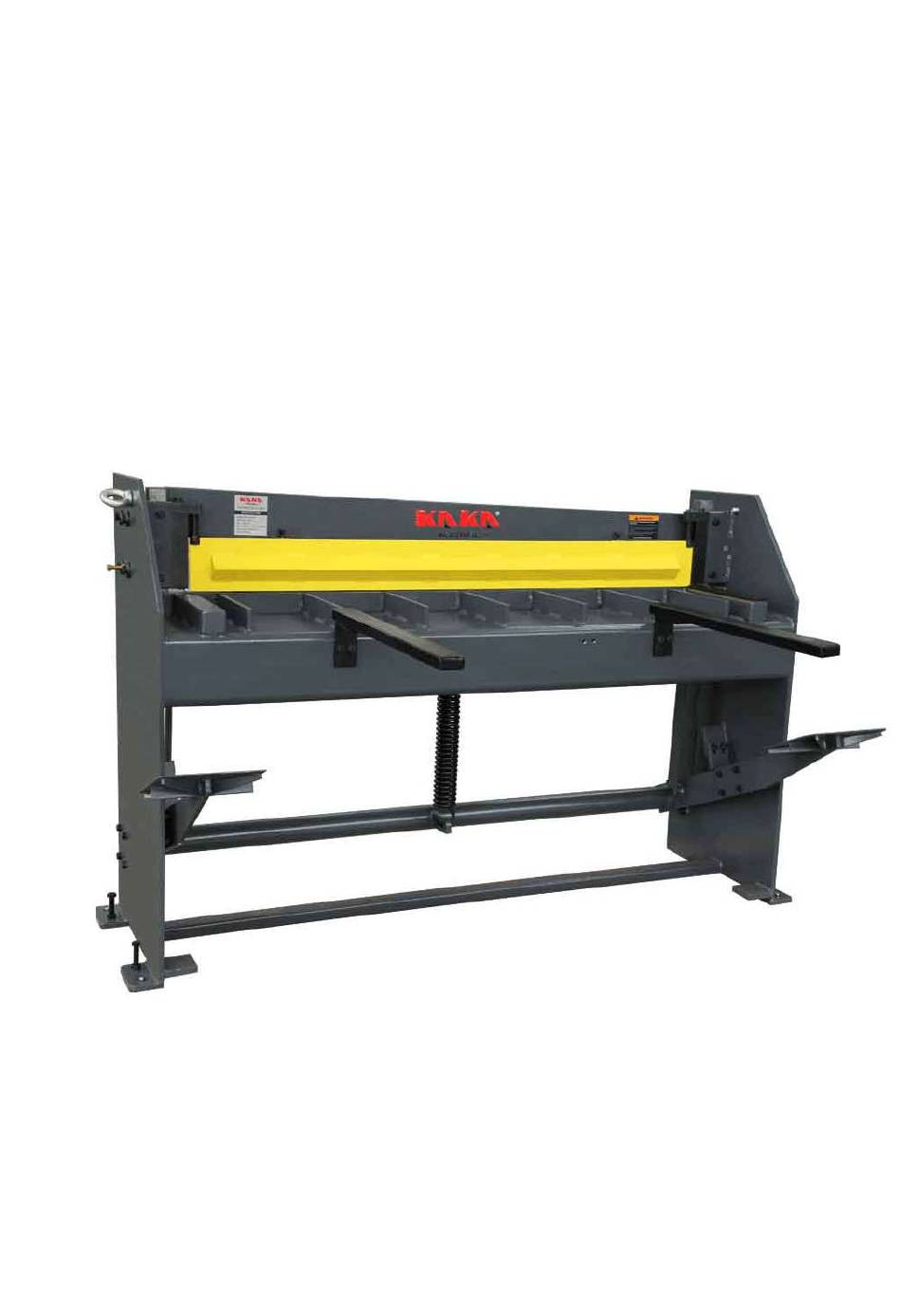

- Page 1 FOOT SHEAR Model: Q01-5216B (Q01-1.6x1320B) Model: Q01-9818B (Q01-1.2x2500B) OPERATION MANUAL - 1 -...
- Page 2 1. PRIOR TO INSTALLATION AND OPERATION Read the following instructions carefully and thoroughly will ensure your machine in perfect functions and avoid possible dangers. 2. CAUTIONS 2.1 Read and understand the entire owner's manual before attempting assembly or operation. 2.2 Read and understand the warnings posted on the machine and in this manual. Failure to comply with all of these warnings may cause serious injury.
- Page 3 Tighten all of the bolts after those being adjusted. 5. CAPACITY: Item No. 172015 172016 Model Q01-5216B Q01-9818B (Q01-1.6x1320B) (Q01-1.2x2500B) Max shearing thickness- Mild steel 1.6mm 1.2 mm Max shearing Length...
- Page 4 6.2 CUTTER HEAD ADJUSTMENT If cutter head is bowed after use. You can adjust the bow bolt. Check for looseness of mounting bolt. Re-tighten all bolts. To adjust the blade up or down. Drop pin on treadle and loosen nut. Adjust yoke up or down. reassemble them.
- Page 5 - 5 -...
- Page 6 Part No. Description Qty. Part No. Description Bolt Washer Washer Cut-off bar Pointer Screw Clich bolt Blade Angle steel Screw Bolt Guideway adjustment angle steel Cutting beam Stopping square tube Connecting plate Rear scale Cotter Adjusting bolt Socket Spring Washer Bolt Bolt Frame...
