KAKA Industrial RM-08 Operation Manual

Operation Manual
KAKA Industrial
Unpacking
The Rotary Machine is shipped from
the manufacturer in a carefully packed
Carton box. Thoroughly inspect the
product upon opening the package.
After unpacking the unit, carefully
inspect for any damage that may
have occurred during transit. Check
for loose, missing, or damaged parts.
Shipping damage claims must be
filed with the carrier and are the
responsibility of the user.

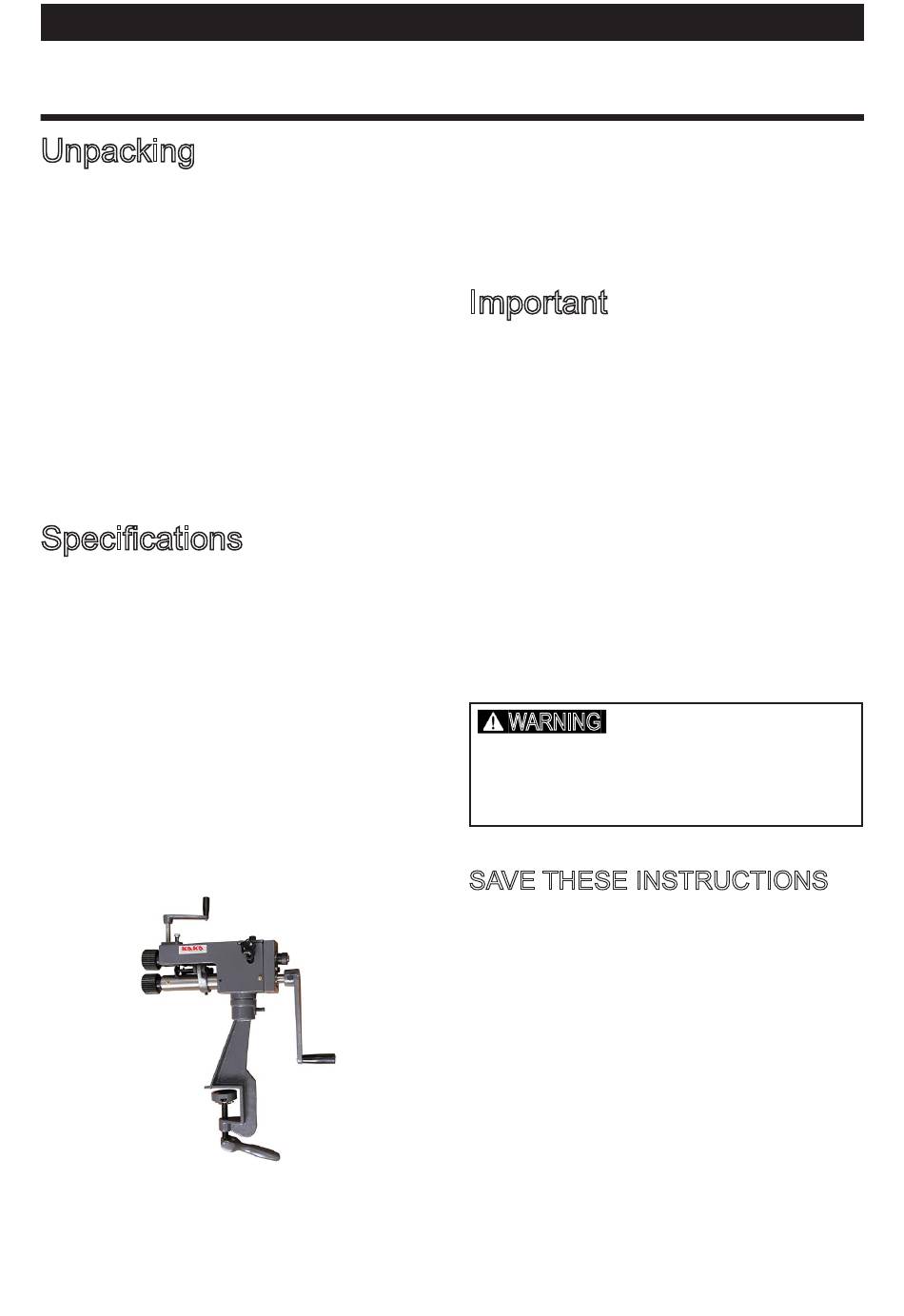

Specifications
K A K A R o t a r y M a c h i n e i s h a n d
operated and will form sheet metal
up to 22 gauge (0.03 thick) mild steel
(or equivalent). The rotary machine
is constructed of cast iron and steel
ensuring minimum deflection of the
workpiece during forming operations.
Six die sets are included allowing the
following operations to be performed:
large and small turning, burring,
wiring, ogee beading and crimping.
Stock No. ................................173205
Model........................................RM-08
Capacity.....................22 Ga. (0.8 mm)
Throat depth....................7" (177 mm)
Packing size.....20"x18"x7" (50x45x16 cm)
N.W./G.W. ...........48/53 lbs (22/24 kg)
Important
Rotary machine and dies are coated
with a protectant. To ensure proper
fit and operation, remove coating.
Coating is easily removed with mild
solvents, such as mineral spirits,
and soft cloth. Avoid getting cleaning
s o l u t i o n o n p a i n t o r a n y o f t h e
rubber or plastic parts. Solvents may
deteriorate these finishes. Use soap
and water on paint, plastic or rubber
components. After cleaning, cover all
exposed surfaces with a light coating
of oil.
WARNING
Never use highly volatile solvents.
Non-flammable solvents are recommended
to avoid possible fire hazard.
SAVE THESE INSTRUCTIONS
Thank you for purchasing our RM-08
Rotary Machine. Before attempting
to operate your new tool please
read these instructions thoroughly.
You will need these instructions for
the safety warnings, precautions,
assembly, operation, maintenance
procedures, parts list and diagrams.
Keep your invoice number with these
instructions. Write the invoice number
on the inside of front cover. Keep the
instructions and invoice in a safe, dry
place for future reference.
— 1 —
®
RM-08
