FOOT SHEAR

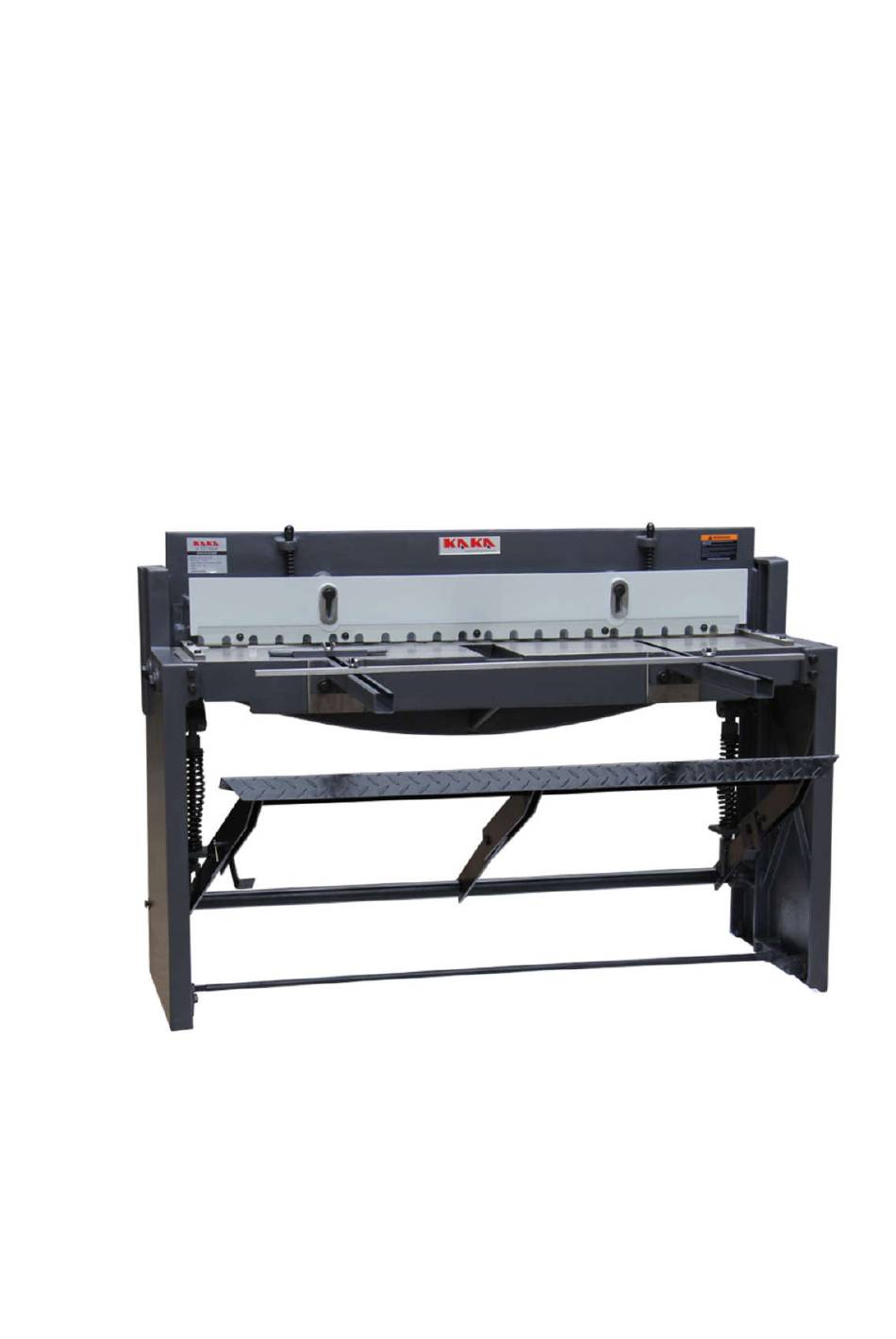

MODEL:Q01-5216 (Q01-1.5x1320)52"
MODEL:Q01-1.0x1000 (37")
OPERATION MANUAL

Advertisement

loading
Need help?

Need help?

Do you have a question about the Q01-5216 and is the answer not in the manual?

Questions and answers

Related Manuals for KAKA Industrial Q01-5216

Summary of Contents for KAKA Industrial Q01-5216

  • Page 1 FOOT SHEAR MODEL:Q01-5216 (Q01-1.5x1320)52” MODEL:Q01-1.0x1000 (37”) OPERATION MANUAL...

  • Page 2: Receiving And Unpacking

    1. PRIOR TO INSTALLATION AND OPERATION Read the following instruction carefully and thoroughly will ensure your machine in perfect function and avoid possible dangers. 2. RECEIVING AND UNPACKING On receiving your machine, examine if the other packing is in good condition, Then, remove the cover to inspect whether there is any damage or loss caused during transportation, If any is found, please immediately notify the transportation any your supplier, Some parts and the accessories are knocked down and in bulk packing to...
  • Page 3 Never take away the protective guard. Keep hold down the learance to the minimum gap required to feed material. Never use shear to cut rod or material exceeding its designed capacity. Never attempt to shear any material less than a 1/2″cut across the full length of the table under full capacity.
  • Page 4 5.2 BACK GAUGE ADJUSTMENT On adjusting back gauge, loosen adjustment knobs, slide angle. Remove rod forward or backward for scales to read zero on pointers. Lock bracket again and do further an adjustment with wheel. Tighten socket screws to lock rods in place. 5.3 BLADE CLEARANCE ADJUSTMENT To adjust blade clearance, loosen front screws and table lock screws, and loosen table bolts on both sides.
  • Page 5 can be re-sharpened on a surface grinder by grinding the wide side of the blade having the 1 relief. (See Figure 3).
  • Page 6 ITEM# Description Qty Item# Description Work Table Washer Frame Screw Pressing plate Spring Right Stand Washer Left Stand Upper Connecting Block Connecting Rod Lower Connecting Block Screw Bolt Spring Washer Bolt Connecting Plate Screw Bolt Washer Washer Protecting Board Upper Pin Screw Lower Pin Workpiece Stop...

This manual is also suitable for:

Q01-1.5x1320Q01-1.0x1000
