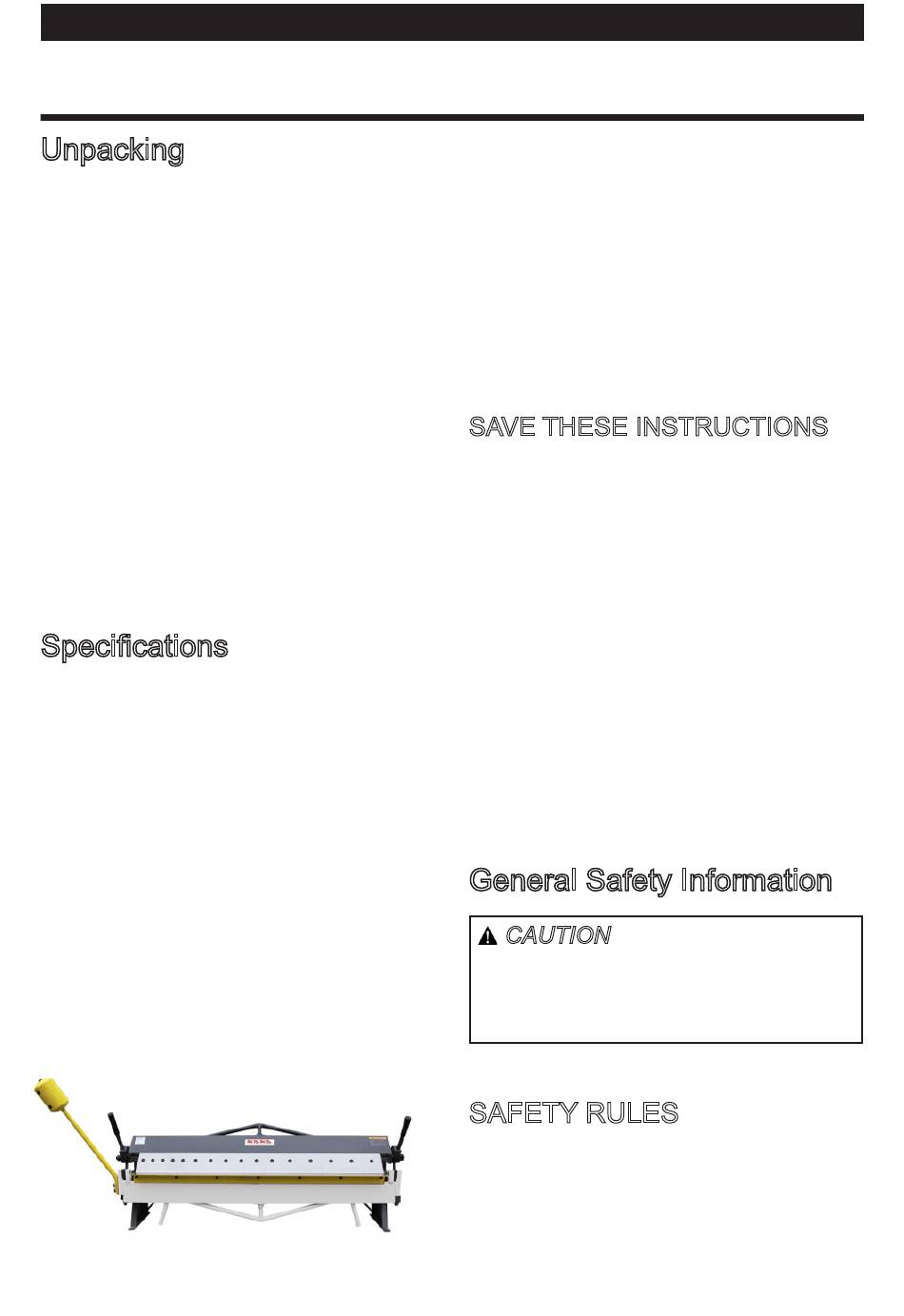

KAKA Industrial W-4816Z Operation Manual

Operation Manual
KAKA Industrial®
Unpacking
The Pan & Box Brake is shipped
from the manufacturer in a carefully
packed ply-wood case. Thoroughly
inspect the product upon opening the
package.
After unpacking the unit,carefully
inspect for any damage that may
have occurred during transit. Check
for loose, missing, or damaged parts.
Immediately report missing parts to
dealer.
If damage has occurred, shipping
damage claims must be filed with the
carrier and are the responsibility of
the user.
Specifications
The Model W-4816Z Pan & Box
Brake is hand operated and capable
of bending up to 16 ga. (1.52mm) mild
steel and 20 ga. (.912mm) stainless
x 48" (1219mm) long allowing it to
fabricate pans, channels, angles,
a n d o t h e r s h a p e s . A d j u s t a b l e
counterweights allow the operator
t o b a l a n c e t h e b e n d i n g l e a f t o
correspond to material thickness. An
adjustable stop gauge is included to
allow the operator to perform repeat
bends.
I t e m N o . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1 7 3 1 2 3
M o d e l . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . W - 4 8 1 6 Z
B e n d i n g L e n g t h . . . . . . . . . 4 8 " ( 1 2 2 0 m m )
B e n d i n g T h i c k n e s s . . . . . . 1 6 G a ( 1 . 5 m m )
B e n d i n g A n g l e . . . . . . . . . . . . . . . . . . . . . . . . 0 - 1 3 5 °
Packing size......62"x18"x26" (158x45x65 cm)
N.W/G.W. ........365/405 lbs (166/184 kg)
SAVE THESE INSTRUCTIONS
T h a n k y o u f o r p u r c h a s i n g o u r
W-4816Z Pan and Box Brake. Before
attempting to operate your new
tool please read these instructions
thoroughly. You will need these
instructions for the safety warnings,
precautions, assembly, operation,
maintenance procedures, parts list
and diagrams. Keep your invoice
number with these instructions. Write
the invoice number on the inside of
front cover. Keep the instructions and
invoice in a safe, dry place for future
reference.
General Safety Information
CAUTION
For your own safety, read all of the
instructions and precautions before
operating tool.
SAFETY RULES
1. Wear proper apparel. Do not wear
loose clothing, gloves, neckties,
rings, bracelets or other jewelry which
may get caught in moving parts of
machine.
