Summary of Contents for KAKA Industrial 3-IN-1/40

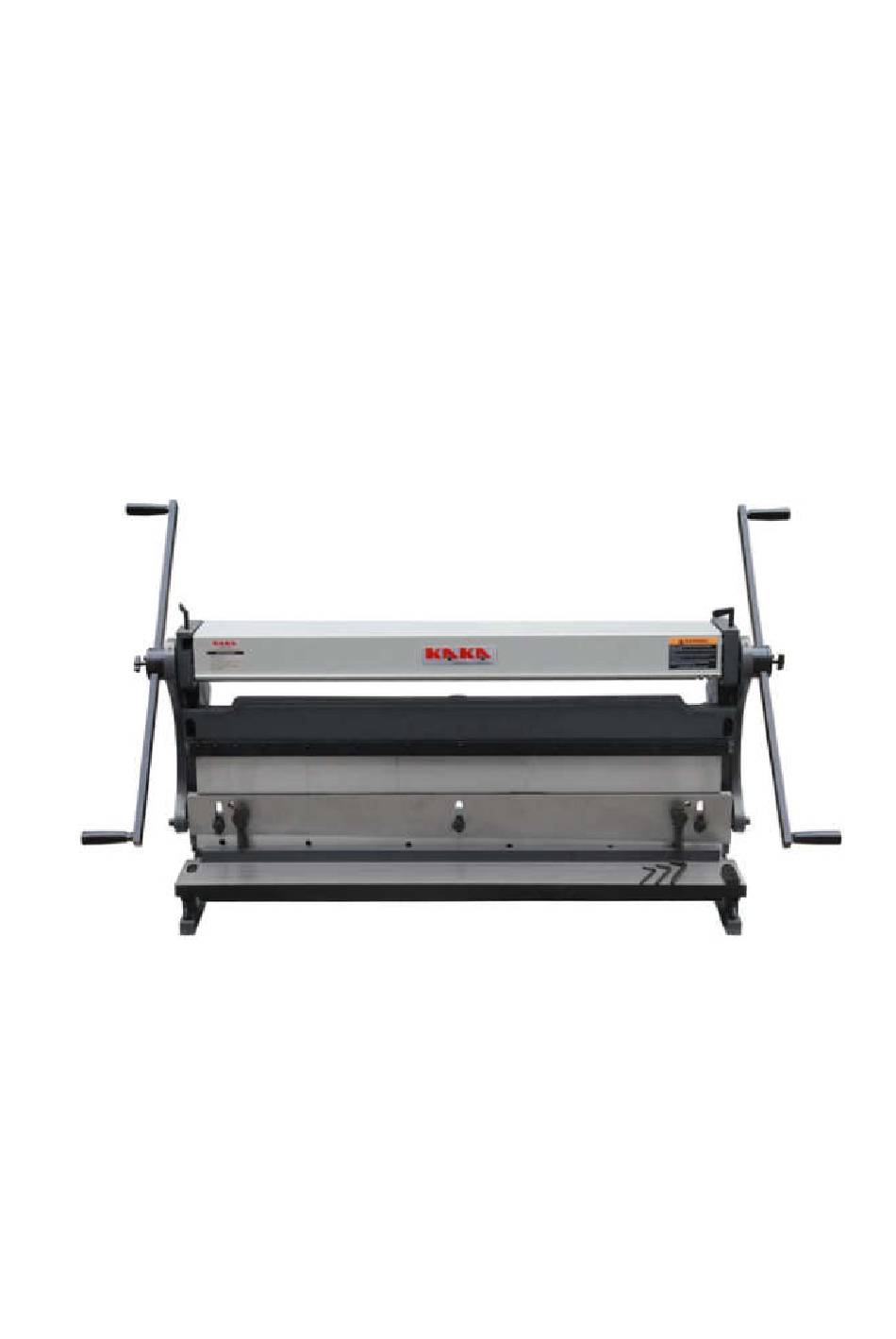

- Page 1 DIRE CTION FOR USE OF 3-IN-1/40 (3-IN-1/1016) COMBINATION OF SHEAR, BRAKE AND ROLL ASSEMBLY AND OPERATING INSTRUCTION...
- Page 2 USES This machine is used for shearing and braking low carbon plate (mild steel) or the other metal materials which have the same intensity as the low carbon plate, but their maximum thickness is 1mm. It can also be used for rolling the low carbon plate (mild steel) or the other metal materials which has the same intensity as the low carbon plate, its maximum thickness is 1mm.
- Page 3 the handle and raise the concave mould plate until the wooden piece getting in touch with the upper die (form plunger) After putting up the new die, all the fasten bolts of the die should be tightened up. In some cases, especially the using of narrow die it is necessary to put a piece thin paper between the upper die and the lower die.
- Page 4 2. CHIEF TECHNICAL SPECIFICATIONS Ordinal number Function parameter 3 in 1/1000 combination of shear, brake and roll Effective width 40″(1000mm) Maximum shearing 1mm low carbon plate thickness Maximum braking thickness 1mm low carbon plate Maximum rolling thickness 1mm low carbon plate Minimum internal diameter Ф43mm of the roll...
-
Page 5: Assembly Diagram
ASSEMBLY DIAGRAM... -
Page 6: Parts List
PARTS LIST Part No. Description Part No. description Left wall Lower pressing roll Work bench Upper pressing roll Crossbeam Protecting cover Crank arm Rotation shaft Right wall Eccentric shaft Bear frame Gasket(washer) Cover Jacket Bear frame Flat key Spring Hexagon head bolts Pressing plate Hexagon socket cap head screws Moving cutter plate... - Page 7 Note: This manual is only for your reference. Owing to continuous improvement of the machines, Changes may be made at any time without obligation on notice.
