Titan Fitness PLADINMv3 Operator's Manual

Titan Fitness PLADINMv3 Operator's Manual

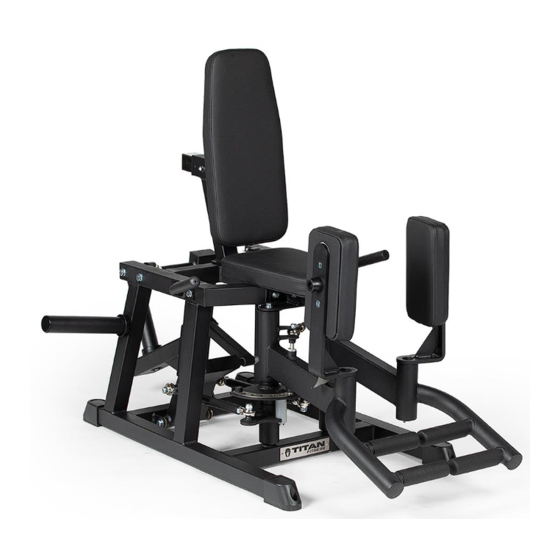

Plate-loaded hip abductor and adductor exercise machine v3

Advertisement

Quick Links

PLATE-LOADED HIP ABDUCTOR AND
ADDUCTOR EXERCISE MACHINE V3
PLADINMv3
401784
Operator's Manual
Read the Operator's Manual entirely. When you see this
symbol, the subsequent instructions and warnings are
serious follow without exception. Your life and the lives
of others depend on it!

Advertisement

loading
Need help?

Need help?

Do you have a question about the PLADINMv3 and is the answer not in the manual?

Questions and answers

Summary of Contents for Titan Fitness PLADINMv3

  • Page 1 PLATE-LOADED HIP ABDUCTOR AND ADDUCTOR EXERCISE MACHINE V3 PLADINMv3 401784 Operator’s Manual Read the Operator’s Manual entirely. When you see this symbol, the subsequent instructions and warnings are serious follow without exception. Your life and the lives of others depend on it!
  • Page 2 ASSEMBLY PARTS DIAGRAM / EXPLODED VIEW DESCRIPTION DESCRIPTION MAIN FRAME (25) BACK CUSHION (11) LEFT LEG CUSHION FRAME (32) FIXING FRAME (12) RIGHT LEG CUSHION FRAME (35) SHORT WEIGHT SUPPORT FRAME (13) BACK CUSHION FRAME (44) KNOB (18) LEFT HANDLEBAR FRAME (46) RUBBER BUMPER (19)
  • Page 3: Hardware Pack

    HARDWARE PACK...
  • Page 5 ASSEMBLY INSTRUCTIONS STEP 1 1. Assemble Left Leg Cushion Frame (11) and Right Leg Cushion Frame (12) with the Main Frame (1), using Bearing Washer (55), Flat Washer Φ11*Φ34*3(88), Spring Washer Φ10 (82) and Hex Bolt M10x25 (76). 2. Assemble Fixing Frame (32) with Main Frame (1), using Flat Washer Φ10.5*Φ30.2.5(87), Spring Washer Φ10 (82), Flat Washer Φ11*Φ20*2(85), Flat Washer Φ10.5*Φ30*2.5(87), M10 Nut (28), and Hex Bolt M10x70 (79) 3.
  • Page 6 STEP 2 1. Connect the Left Handlebar Frame (18) and Right Handlebar (19) with Main Frame (1), using the Flat Washer Φ11*Φ20*2 (85), Flat Washer Φ10.5*Φ30*2.5(87), M10 Nut (28) and Hex Bolt M10x70 (79). Tighten all bolts and nuts. 2. Insert the Back Cushion Frame (13) into the Fixing Frame (32), using the Knob (44) and Pan Head, Hex Bolt M8*20(68).
  • Page 7 STEP 3 1. Assemble Seat Cushion (24) on the Main Frame (1), using Flat Washer Φ11*Φ20*2(85), and Hex Bolt M10x70 (79). 2. Assemble Back Cushion (25) on the Back Cushion Frame (13), using Flat Washer Φ11*Φ20*2(85), and Hex Bolt M10x50 (78).
  • Page 8 APPENDIX - FULL ASSEMBLY/EXPLODED VIEW/ FULL PARTS LIST DESCRIPTION DESCRIPTION MAIN FRAME (46) RUBBER BUMPER FIXING FRAME (47) FRONT HANDLEBAR GRIP Φ29.5*130 END CAP 45*45*2 (48) RUBBER BUMPER HEX BOLT M12*80 (49) KNOB HEX BOLT M10*65 (50) BUSHING Φ14*Φ10*19 WEIGHT SUPPORT FRAME (51) PLASTIC SLEEVE Φ21*Φ13*13 MOVABLE FRAME...
  • Page 9 (12) RIGHT LEG CUSHION FRAME (57) SPRING Φ14*Φ1.2*45 (13) BACK CUSHION FRAME (58) CLIP Φ50*Φ5 (14) (59) BEARING UCFL204 (15) UPPER SWING FRAME (60) BEARING 60005ZZ (16) LOWER SWING FRAME (61) BEARING SA14TK (17) CONNECTING FRAME (62) BEARING SAL14TK (18) LEFT HANDLEBAR FRAME (63) BEARING SI14TK...
  • Page 10 ACKNOWLEDGEMENT OF RISK AND RELEASE OF LIABILITY The use of any equipment, including this one, involves the potential risk of injury. Apart from any warranty claim that might be presented for a claimed defect in material or workmanship of the product, you accept and assume full responsibility for any and all injuries, damages (both economic and non-economic), and losses of any type, which may occur, and you fully and forever release and discharge Titan, its insurers, employees, officers, directors, associates, and agents from any and all claims, demands, damages,...
  • Page 11 NEED HELP? CONTACT US FIRST. 1-888-410-1503 info@titan.fitness www.titan.fitness © 2022 Titan Brands...

This manual is also suitable for:

401784
