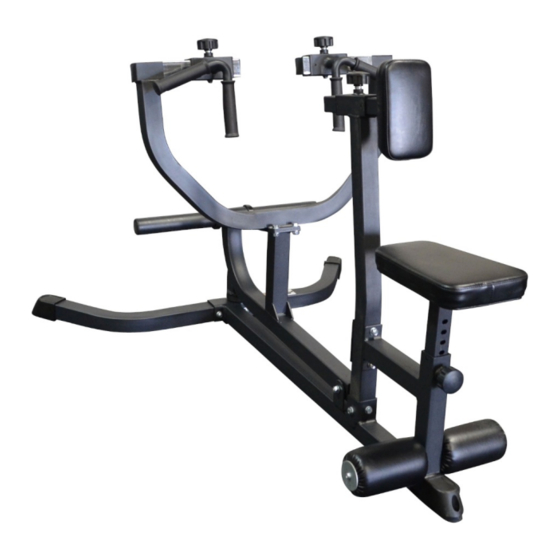

PLATE-LOADED SEATED ROW
PLBKM
400790
Operator's Manual
Read the Operator's Manual entirely. When you see this
symbol, the subsequent instructions and warnings are
serious follow without exception. Your life and the lives
of others depend on it!
Cover photo may show optional equipment not supplied
with standard unit. For an Operator's Manual and Decal
Kit in French or Spanish Language, please see your dealer.

Advertisement

loading
Need help?

Need help?

Do you have a question about the PLBKM and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Titan Fitness PLBKM

Summary of Contents for Titan Fitness PLBKM

  • Page 1 PLATE-LOADED SEATED ROW PLBKM 400790 Operator’s Manual Read the Operator’s Manual entirely. When you see this symbol, the subsequent instructions and warnings are serious follow without exception. Your life and the lives of others depend on it! Cover photo may show optional equipment not supplied with standard unit.
  • Page 2 PARTS DIAGRAM / EXPLODED VIEW...

  • Page 3: Seat Cushion

    PARTS DIAGRAM LIST / EXPLODED VIEW DESCRIPTION DESCRIPTION SEAT CUSHION FRAME (22) HOLLOW SLEEVE 60*2 BASE FRAME (23) HOLLOW SLEEVE 50*2 SWING FRAME (24) END CAP 50*2 SEAT CUSHION ADJUSTABLE (25) END CAP 50*2.5 FRAME CONNECTION FRAME (26) END CAP 40*2 CHEST CUSHION FRAME (27) END CAP 58*2...
  • Page 4 ASSEMBLY INSTRUCTIONS STEP 1: Connect SEAT CUSHION FRAME (1) and BASE FRAME (2), using HEX HEAD BOLT M10*75 (37), FLAT WASHER 11*2*2 (39), and NUT M10 (41), then tighten the NUT.
  • Page 5 ASSEMBLY INSTRUCTIONS STEP 2: Assemble SWING FRAME (2), CHEST CUSHIONS FRAME (6) to SEAT CUSHION FRAME (1), using ROTARY SHAFT (11), FIXING PLATE (18), HEX HEAD BOLT M10*15, HEX HEAD BOLT M10*75 (37), FLAT WASHER 11*20*2 (39), NUT M10) (41). DO NOT TIGHTEN THE NUTS...
  • Page 6 ASSEMBLY INSTRUCTIONS STEP 3: Assemble CONNECTION FRAME (5) to SWING FRAME (3), using HEX HEAD BOLT M10*25 (36), FLAT WASHER 11*20*2 (39), NUT M!) (41). TIGHTEN ALL BOLTS. Assemble WEIGHT PLATE HOLDER (12) to SWING FRAME (3), using PAN HEAD HEX HOLT M8*20 (31), FLAT WASHER 9*16*1.6 (38), SPRING WASHER 8 (40).
  • Page 7 ASSEMBLY INSTRUCTIONS STEP 4: Assemble SEAT CUSHION (13) to SEAT CUSHION ADJSUTABLE FRAME (4), using HEX HEAD BOLT M10*25 (36), FLAT WASHER 11*20*2 (39). Then fixing it on SEAT CUSHION FRAME (1), using PAN HEAD HEX BOLT M8*20 (32) and LOCK KNOB (20). Assemble CHEST CUSHION (14) to CHEST CUSHION ADJUSTABLE FRAME (7), using HEX HEAD BOLT M10*25 (36), FLAT WASHER 11*20*2 (39).
  • Page 8 ACKNOWLEDGEMENT OF RISK AND RELEASE OF LIABILITY The use of any equipment, including this one, involves the potential risk of injury. Apart from any warranty claim that might be presented for a claimed defect in material or workmanship of the product, you accept and assume full responsibility for any and all injuries, damages (both economic and non-economic), and losses of any type, which may occur, and you fully and forever release and discharge Titan, its insurers, employees, officers, directors, associates, and agents from any and all claims, demands, damages,...
  • Page 9 NEED HELP? CONTACT US FIRST. 1-888-410-1503 info@titan.fitness www.titan.fitness © 2021 Titan Brands...
