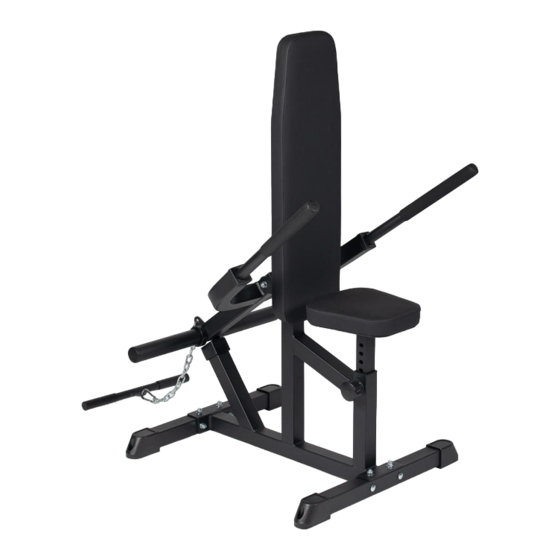

- Page 1 PLATE LOADABLE SEATED DIP MACHINE PLDIP 400899 Operator’s Manual Read the Operator’s Manual entirely. When you see this symbol, the subsequent instructions and warnings are serious follow without exception. Your life and the lives of others depend on it!
- Page 2 PARTS DIAGRAM / EXPLODED VIEW...
- Page 3 PARTS DIAGRAM / EXPLODED VIEW DESCRIPTION MAIN FRAME ARM FRAME SEAT CUSHION FRAME HANDLEBAR BASE FRAME BACK CUSHION PIPE SLEEVE 50 RIGHT HANDLE FRAME PIPE SLEEVE 50*33.5*14 (10) GRIP 31*3*280 (11) SEAT CUSHION (12) HALLOW SLEEVE (13) F50 HORSESHOE SLEEVE (14) LOCK PIN (15)
- Page 4 ASSEMBLY INSTRUCTIONS STEP 1 Connect MAIN FRAME (1) and BASE FRAME (5), using FLAT WASHER (24), NUT M10 (25) and CARRIAGE BOLT M10*70 (18).
- Page 5 ASSEMBLY INSTRUCTIONS STEP 2 Fix ARM FRAME (2) on MAIN FRAME (1), using FLAT WASHER (24), NUT M10 (25), and ROTATION SHAFT (15).
- Page 6 ASSEMBLY INSTRUCTIONS STEP 3 1. Plug SEAT CUSHION FRAME (3) into MAIN FRAME (1), using HEX HEAD BOLT (23). 2. Fix SEAT CUSHION (11) on SEAT CUSHION FRAME (3), using HEX BOLT M10*25 (26), and FLAT WASHER (24). 3. Fix BACK CUSHION. (6) on MAIN FRAME (1), using HEX BOLT M10*25* (26) and FLAT WASHER (24)
- Page 7 ACKNOWLEDGEMENT OF RISK AND RELEASE OF LIABILITY The use of any equipment, including this one, involves the potential risk of injury. Apart from any warranty claim that might be presented for a claimed defect in material or workmanship of the product, you accept and assume full responsibility for any and all injuries, damages (both economic and non-economic), and losses of any type, which may occur, and you fully and forever release and discharge Titan, its insurers, employees, officers, directors, associates, and agents from any and all claims, demands, damages,...
- Page 8 NEED HELP? CONTACT US FIRST. 1-888-410-1503 info@titan.fitness www.titan.fitness © 2022 Titan Brands...
