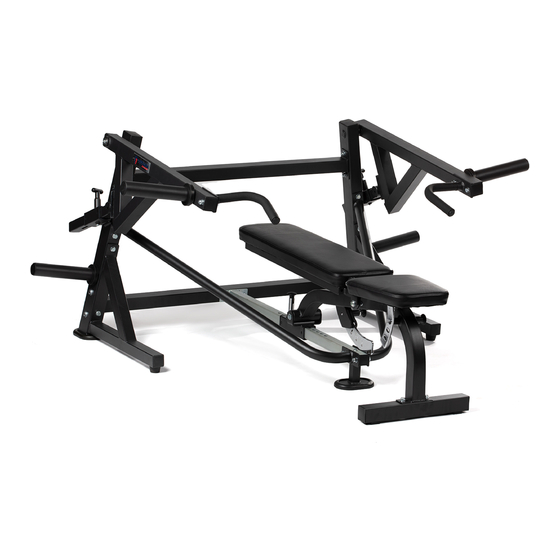

Summary of Contents for Titan Fitness PLCHSTPRS1
- Page 1 O W N E R ’ S M A N U A L MPN(s): PLCHSTPRS1-PLCHSTPRS2 SKU(s): 400639, 400640 UPC(s): 719318387443, 719318387450...
- Page 2 P A R T S D I A G R A M / E X P L O D E D V I E W...
- Page 3 DESCRIPTION DESCRIPTION Left Upright Frame (37) Φ48 End Cap Right Upright Frame (38) Rubber Cushion Left Handle Frame (39) Foot Pad Right Handle Frame (40) Rubber Cushion Rear Connect Frame (41) End Cap Φ25*2.5 Lower Connect Frame (42) Rubber Mat Left Handle Bar (43) Sleeve...
- Page 4 A S S E M B L Y I N S T R U C T I O N S Step 1 Assembly Front foot frame(14) and Adjustable Frame(12),using hex bolt M8*25 (68) and Flat washerΦ9*Φ16*1.6(59).Assembly cushion frame(15) and base frame(18),using carriage bolt M10*65(70), nut M10(49) and flat washerΦ11*Φ20*2(48).
- Page 5 Step 3 Assembly the adjustable frame(12) to the lower connect frame(6), using hex head bolt M10x70 (50), flat washerΦ11*Φ20*2(48), big washer Φ10.6*Φ26*2(53)and M10 lock nut(49). Using right tools tighten bolts properly. Step 4 Assembly left connect frame(10) and right connect frame(11) to the adjustable frame(12),using hex bolt M10*60(62), lock nut M10 (49),flat washerΦ11*Φ20*2(48).Fixing the left connecting frame(10) to the left upright frame(1), using hex head bolt M8x95 (64), flat washerΦ11*Φ20*2(48), big washer Φ10.6*Φ26*2(53)and lock nut M10 (49).
- Page 6 Step 5 Assembly the weight plate holder(17) to the left upright frame(1) and right upright frame(2), using hex head bolt M10x25 (60), Φ10spring washer(61), flat washerΦ11*Φ20*2(48).Remove the hex bolt M8*20(54),Insert the Limited Frame(9) into the left upright frame(1) and right upright frame(2),then fixing by hex bolt M8*20(54).
- Page 7 Step 7 Assembly the weight plate holder (17) and right handle bar (8) to the right handle frame (4), using hex head bolt M10x70 (50),hex head bolt M10x25 (60), Φ10spring washer(61), flat washerΦ11*Φ20*2(48), and lock nut M10 (49). Step 8 Fixing the left handle frame(3) and right frame(4) to the left upright frame(1) and right upright frame(2), using hex head bolt M8x15 (58), flat washerΦ9*Φ24*2(52).
- Page 8 This concludes the _____ Owner’s Manual. If applicable to your product, make sure to tighten all nut-and-bolt combinations before use. Enjoy! DISCLAIMER This equipment must be used with care by capable and competent individuals under supervision, if necessary. The use of any fitness equipment, including this one, involves the potential risk of injury. You accept and assume full responsibility for any and all injuries, damages (both economic and non-economic), and losses of any type, which may occur, and you fully and forever release and discharge Titan, its insurers, employees, officers, directors, associates, and agents from any and all claims, demands, damages, rights of action, or causes of action, present or future, whether the...
