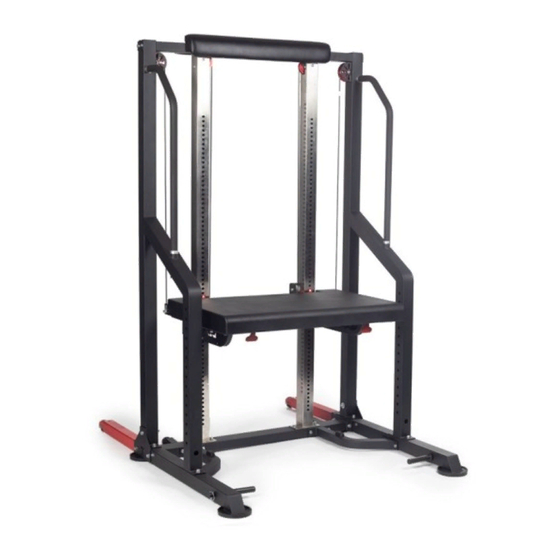

- Page 1 80" RONIN PRO PLYOMETRIC MACHINE PLYMACH80 412218 Operator’s Manual Read the Operator’s Manual entirely. When you see this symbol, the subsequent instructions and warnings are serious follow without exception. Your life and the lives of others depend on it!
- Page 2 PARTS DIAGRAM / EXPLODED VIEW...
- Page 3 DESCRIPTION DESCRIPTION (46) BASE CONNECTING FRAME FRONT HANDLE GRIP (47) LEFT BASE FRAME FOOT MAT Ф166*17 (48) RIGHT BASE FRAME WHEEL Φ75*40 (49) LEFT UPRIGHT FRAME STOPPER 30*70*20 (50) RIGHT UPRIGHT FRAME END CAP Φ25*1.5 (51) LEFT CONNECTING FRAME END CAP 75*75*2 (52) RIGHT CONNECTING FRAME PAN HEAD, HEX BOLT M10*50...
- Page 4 ASSEMBLY INSTRUCTIONS STEP 1 1. Connect Right Base Frame (3), Base Connecting Frame (1) and Guard Board (20), using Flat Washer Φ13.5*Φ24*2.5 (54), M12 Nut (58), and Hex Bolt M12*105(57). 2. Connect Right Upright Frame (5) and Right Base Frame (3), using Flat Washer Φ13.5*Φ24*2.5 (54), M12 Nut (58), Carriage Bolt M12*95 (86) and Hex Bolt M12*25(55).
- Page 5 STEP 2 1. Remove the Hex Bolt M10*25 (65) and Rubber Cushion on the Left and Right Adjusting Frame (8&9). 2. Install the Left and Right Adjusting Frame (8&9) on Pedal Frame (10), Adjust the Pedal Frame (10) in the middle of Left and Right Adjusting Frame (8&9) by Handle (35) and Pull Rod (25).
- Page 6 STEP 3 1. Install the Left and Right Adjusting Frame (8&9) on Base Frame (1), using Flat Washer Φ13.5*Φ24*2.5 (54), Spring Washer Φ12 (56) M12 Nut (58) and Hex Bolt M12*25(55).
- Page 7 STEP 4 1. Connect the Left and Right Upright Frame (4&5) and Upper connecting Frame (14), using Flat Washer Φ11*Φ20*2 (61), Splint (21) and Hex Bolt M10*95(85). Don’t tighten the bolts temporarily. 2. Install the cables of Left and Right Upright Frame (4&5) on the Pedal Frame (10), using Flat Washer Φ11*Φ20*2 (61) and Hexagon Socket Head Screw M10*25 (60).
- Page 8 STEP 6 1. Move the machine to the wall, the fixing Frame (11) close to the wall. 2. Make mark on the wall through the center of Hole, then remove the Hex Bolt M10*20 (71), Flat Washer Φ11*Φ20*2 (61) and Fixing Frame (11), punch holes in marks on the wall.
- Page 9 STEP 8 1. Remove the End Cap 75*75*2 (51) from the Left and Right Base Frame (2 & 3). 2. Install the Extension Frame (13) on Left and Right Base Frame (2 & 3), using Flat Washer Φ11*Φ20*2 (61), Flat Washer Φ9*Φ16*1.6 (76), Hex Bolt M10*20 (71) and Hex Bolt M8*15 (84).
- Page 10 ACKNOWLEDGEMENT OF RISK AND RELEASE OF LIABILITY The use of any equipment, including this one, involves the potential risk of injury. Apart from any warranty claim that might be presented for a claimed defect in material or workmanship of the product, you accept and assume full responsibility for any and all injuries, damages (both economic and non-economic), and losses of any type, which may occur, and you fully and forever release and discharge Titan, its insurers, employees, officers, directors, associates, and agents from any and all claims, demands, damages,...
- Page 11 NEED HELP? CONTACT US FIRST. 1-888-410-1503 info@titan.fitness www.titan.fitness © 2021 Titan Brands...
