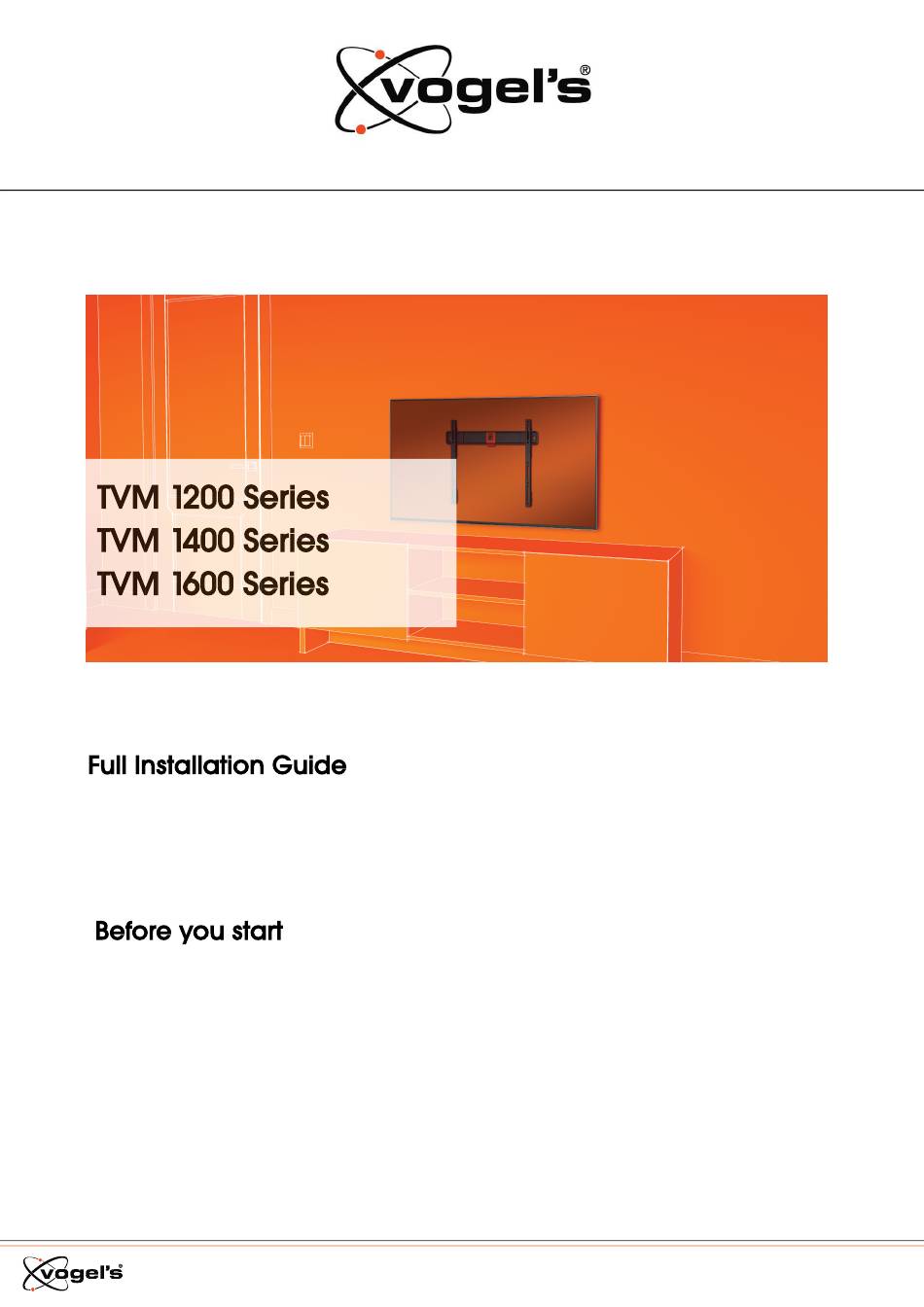

TVM 1200 Series
TVM 1400 Series
TVM 1600 Series
Full Installation Guide
Everything you need to get your TV safely on the wall, in no time
Before you start
...we just wanted to say thanks for choosing Vogel's. Smart choice.
And you're already making another smart choice – reading the manual! Keep reading to learn all about safe, efficient
installation, and how to use your new mount.
TVM 1200/1400/1600 Series English
1
Advertisement
Related Manuals for vogel's TVM 1200 Series
Summary of Contents for vogel's TVM 1200 Series
- Page 1 TVM 1200 Series TVM 1400 Series TVM 1600 Series Full Installation Guide Everything you need to get your TV safely on the wall, in no time Before you start …we just wanted to say thanks for choosing Vogel’s. Smart choice.
- Page 2 Warning Always read these safety instructions carefully before installing and using this product. Following these instructions is strictly required. Incorrect mounting and/or installation could put you, your TV, and your family at substantial risk. Don’t dare risk it… Read all Vogel’s recommends that the mounting and/or installation of this product should be carried out by a suitably qualified expert.
-
Page 3: What's In Your Box
What’s in your box? Something missing? Make sure your packaging has everything in place: A. Wall mount C. Strips D. Safety instructions E. Bolts for fastening strips on TV (see contents below) F. Spacers G. Washers Ø 18 mm H. Screws I. - Page 4 Got your tools ready? Don’t start without all the necessary tools: Crosshead screwdriver Drilling machine 8mm or 5/16” concrete/brick drill (for concrete/brick walls only) 4mm or 5/32” wood drill (for wooden walls only) Stud finder (optional) Socket wrench Pencil Take care of your safety Who cares about looking cool? Always wear personal protective equipment: Eye protection Ear protection...
- Page 5 Step 1: Attach the strips to the TV 1. Put the TV carefully on a clean surface without any obstacles. 2. Screw the strips Ⓒ on to the TV with the bolts Ⓔ. Make sure the strips Ⓒ are at the same height and do not stick out. Are you missing any bolts? Or need different ones? The friendly team at Vogel’s Consumer Care are waiting to help: vogels.com/contact Make sure bolts and spacers are positioned correctly.
- Page 6 Step 2: Attach the wall mount to the wall How well do you know your walls? What they’re made of matters more than you think… Concrete/Brick wall Don’t drill yet! Try our free DrillRight™ AR app to find just the right height and mark the first hole, easily. 1.
- Page 7 3. Attach the wall mount Ⓐ to the wall with the screws Ⓗ, washers Ⓙ and plugs Ⓘ. Use the spirit level to level the wall mount. Lubricate the screws for easy screwing in. Wooden wall with studs TVM 1200 and TVM 1210 Series are not suitable for mounting on stud walls, without special mounting material. Ask your installer, specialist supplier or the Vogel’s Consumer Care team at www.vogels.com/contact for more information.
- Page 8 1. Don’t just guess! Always use a stud finder to determine the position of studs. 2. Find the perfect spot for drilling with our DrillRight™ AR app and the included drilling template. Don’t destroy your belongings! The wall mount must always be attached to the studs. TVM 1200/1400/1600 Series English...
- Page 9 3. Now for the fun part… drilling the holes. 4. Attach the wall mount Ⓐ to the wooden wall with the screws Ⓗ and washers Ⓙ. Use the spirit level to level the wall mount. Lubricate the screws for easy screwing in. Other wall type/I don’t know my wall type If your wall is a little special –...
- Page 10 Step 3: Attach the TV to the wall mount 1. Carefully lift and attach the TV to the wall mount Ⓐ. Lifting your TV is a two-person job. Don’t be bold! Job done now! Enjoy watching your TV! Handy features Having a cable mess? Do you need inspiration about how to hide and guide your cables or how to place other TV accessories? Take a look at our website vogels.com! TVM 1200/1400/1600 Series English...
- Page 11 Removing your TV 1. Remove the TV, and put it down somewhere safe. Again, lifting your TV is a two-person job. Always get help. Tell us how you feel! Your opinion matters more than you might think. It helps us make better products, and helps other customers make informed choices.
-
Page 12: Simple Troubleshooting
– it can be service kit, and we’ll send everything you need. hard to keep up sometimes. So, Click here to contact Vogel's Consumer Care. it might be the case that the correct bolt size is not included… you’re just too advanced! ‘I have a lot of leftover... - Page 13 TV and wall. Do you miss the correct bolts for your TV? Please contact your local Vogel's dealer. Click here to contact Vogel's Consumer Care. ‘Why do you use Fischer© plugs?’...
- Page 14 Go green! We care about the planet. If you’re getting rid of the packaging or the TV mount itself, please visit your local recycling facility, or contact your municipal office. Recycling matters! Guarantee Thanks again for choosing Vogel’s! Just like every product we make, your new purchase is made of durable materials and is based on a meticulous design.
