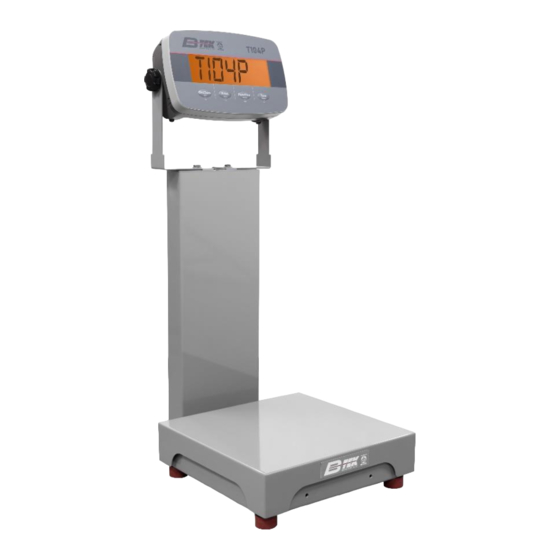

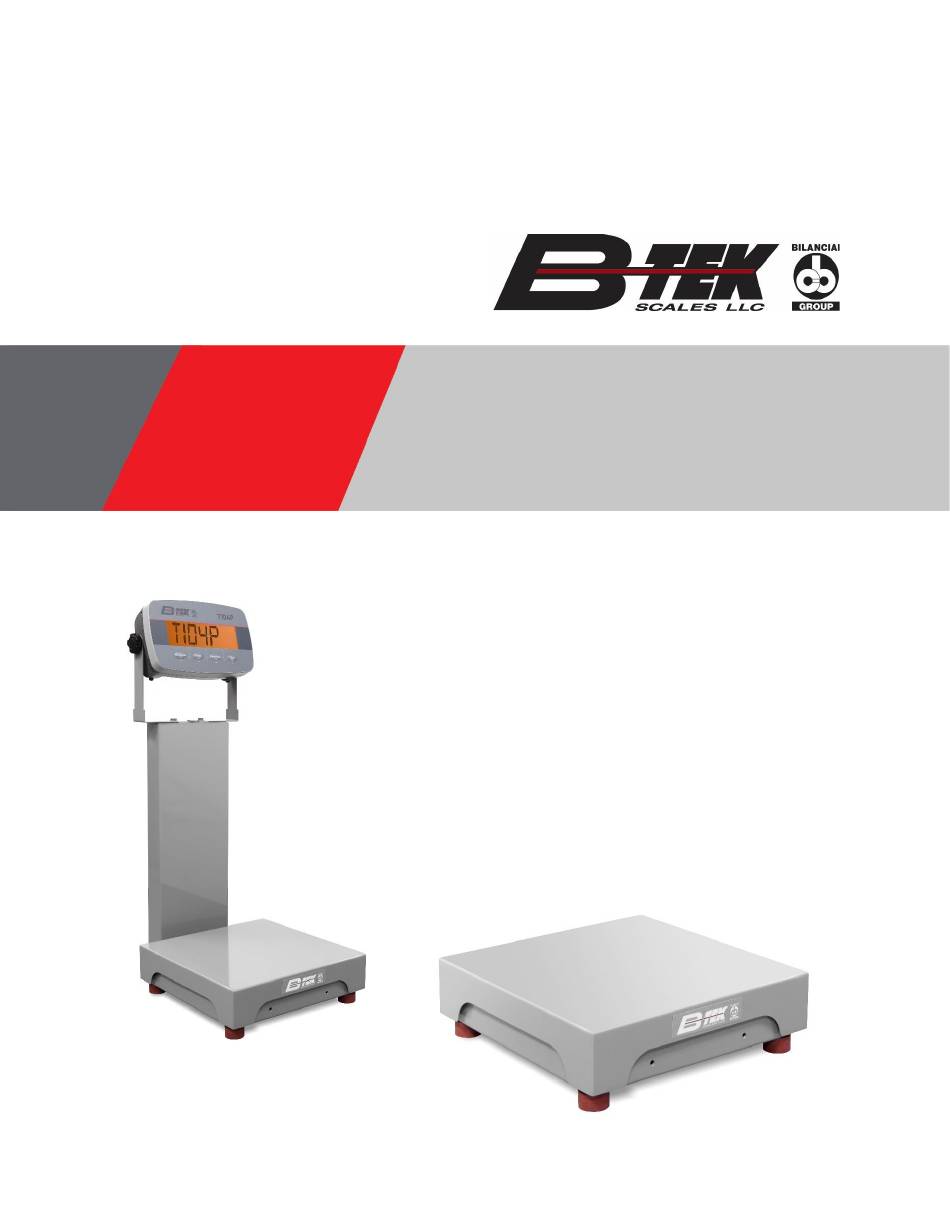

- Page 1 Instruction Manual DuraShield Bench Scales 3/15/23 V2023.1...
-
Page 2: Table Of Contents
B-TEK DuraShield Series Bench Scale Instruction Manual Table of Contents 1. Safety First…………………………………………………………………………………. 3 2. Introduction………………………………………………………………………………… 4 3. Specifications……………………………………………………………………………… 5 4. DuraShield Bench Scale Assembly…………………………….……………………….6-8 5. Indicator Installation………………………………………………………………………..9 6. Load Cell Replacement………………………………………….………………………..10 7. Exploded View……………………………………………………………………………. 11 8. Replacement Part Numbers……………………………………………………………...12 9. -
Page 3: Safety First
B-TEK DuraShield Series Bench Scale Instruction Manual Safety First Please call a B-TEK-authorized service provider for service or repairs. • Ensure that the area used for this equipment is safe for this equipment. • Allow only qualified personnel to work on electric/electronic components. -
Page 4: Introduction
B-TEK DuraShield Series Bench Scale Instruction Manual Introduction The information provided in this manual is a guide to installing the B-TEK, LLC. DuraShield series single-point bench scale. This document is intended as a guide only, and the actual installation should be performed by qualified personnel only. -
Page 5: Specifications
B-TEK DuraShield Series Bench Scale Instruction Manual Specifications MODEL DuraShield 12”x12” DuraShield 18”x18” 50lb/25kg, 50lb/25kg, Capacities 100lb/50kg, 100lb/50kg, 200lb/100kg 200lb/100kg .01lb/.005kg, .01lb/.005kg, .02lb/.01kg, Readability .02lb/.01kg, .05lb/.02kg .05lb/.02kg Max. Divisions 5000e Weighing Units lb, kg 12” x 12”, 18” x 18”... -
Page 6: Durashield Bench Scale Assembly
B-TEK DuraShield Series Bench Scale Instruction Manual Assembly Unpacking Carefully remove the bench scale from its box, ensure that it is not damaged, and all parts are included. • Bench scale with load cell and spider assembly. • Column (Optional) •... - Page 7 B-TEK DuraShield Series Bench Scale Instruction Manual After fastening the column to the base install all the bench scale and column leveling feet as shown in the image below. Leveling Foot Lock Nut Leveling Foot Place the bench scale on an environmentally sound level surface and adjust the feet on the bench base only.
- Page 8 B-TEK DuraShield Series Bench Scale Instruction Manual Bullseye Level Adjusting Unlevel Level Overload Stop The overload stop is a set crew placed on the underside of the base and is designed so that the load cell bottoms out when more weight is applied than the scales capacity. To adjust this screw simply apply the weight that matches the capacity of the scale plus 5% and adjust the screw in until it hits the cell.
-
Page 9: Indicator Installation
Terminate the load cell wires to the load cell terminal located on the main board of the indicator. Reference the indicator manual that is being connected to the DuraShield bench scale for load cell termination points. -
Page 10: Load Cell Replacement
B-TEK DuraShield Series Bench Scale Instruction Manual Load Cell Replacement Install the load cell using supplied B-TEK ASP-1 load cell and shims. Torque the B-TEK ASP-1 load cells to 76 in. lbs. Spider assembly to load cell mounting bolts. Spider assembly to Platter leveling Feet. -
Page 11: Exploded View
B-TEK DuraShield Series Bench Scale Instruction Manual 1. Platter 3. Spider Assy. Leveling Feet 2. Spider Assembly 4. Load Cell Spacer 5. B-TEK ASP-1 Load Cell 8. Base Bare Bone 6. Base Feet (No Hardware) 7. Base Leveling Foot Lock Nut... -
Page 12: Replacement Part Numbers
B-TEK DuraShield Series Bench Scale Instruction Manual Replacement Parts Parts List B-TEK Part # Parts Name 12”x12” SS Replacement Platter 100-160857-1 18”x18” SS Replacement Platter 100-121246A-1 12”x12” SS Replacement Spider Assembly 100-160858-3 18”x18” SS Replacement Spider Assembly 100-121248B-1 200-160264-1 Spider Assembly Leveling Feet... -
Page 13: B-Tek Contact Information
B-TEK DuraShield Series Bench Scale Instruction Manual B-TEK Scales, LLC 1510 Metric Ave. S.W. Canton, OH 44706 Tel: 330.471.8900 Fax: 330.471.8909 www.B-TEK.com - 13 -...
