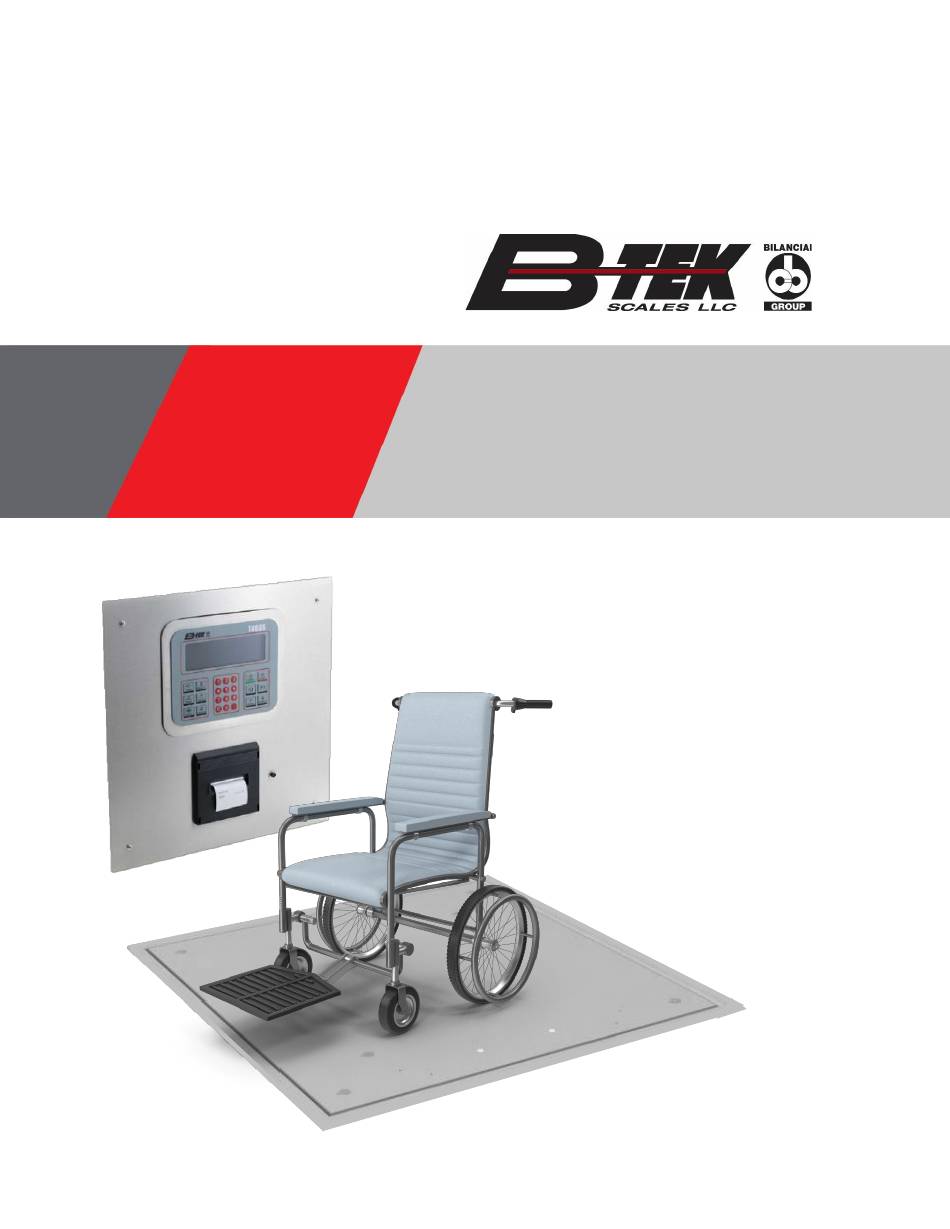

- Page 1 Instruction Manual Wheelchair Patient Scales 7/23 Rev. V2023.0...
-
Page 2: Table Of Contents
Table of Contents 1. Safety First…………………………………………………………………………….…….. 3 2. Introduction/Specifications.……………………………………………………………..…. 4 3. General Component Identification ………………………………………………….……. 5 4. Installation Above Ground………………………………………………………………...6,7 5. Installation In-ground…………………….…………………………………………..…….8,9 6. Indicator Termination, Calibration………………………………….……………………..10 7. Replacement Parts…...…...………………………………………………………………..11 8. BTEK Contact Information…………………………………………………………………12... -
Page 3: Safety First
Safety First • Please call a B-TEK authorized service provider for service or repairs on B-TEK products. • Only allow authorized personnel to work with electrical components. • Please ensure you wear proper PPE when working with equipment. • Ensure proper training is given when working with any equipment. •... -
Page 4: Introduction/Specifications

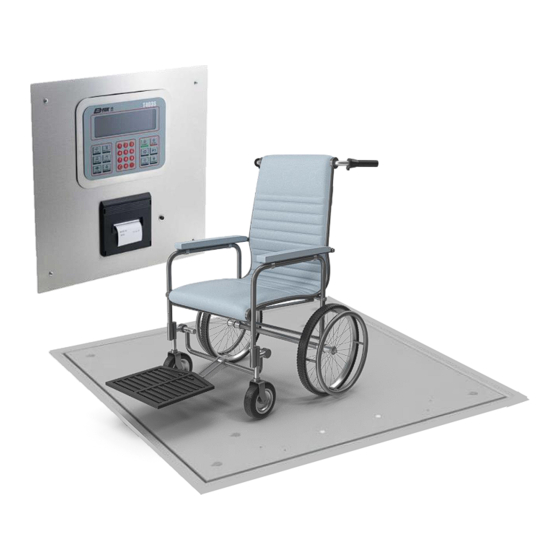

The B-TEK Patient scales are perfect for applications where weighing patients on or off wheelchairs is done in high volume. o The low profile above-ground with ramp or inground scales makes weighing easy. o Available in 36”x36” or 48”x48” sizes with 1000 lb. capacity. -
Page 5: General Component Identification
General Component Identification Above-ground A. Base platform B. Handrail C. Ramp General Component Identification Inground A. Base Platform B. Handrail C. Pit Frame... -
Page 6: Installation Above Ground
Installation Above ground Installation It is recommended to lag bolt the ramp in place to keep the scale from moving during use. First position the scale and ramp in the location that you intend on using the scale, ensure that the scale is away from general traffic and that the chosen area is protected from water, misc. - Page 7 Now that the ramp is secured to the floor the scale base can be placed back into the ramp. Ensure that the load cell feet sit within the foot retaining plate hole as shown in the image below. Correct foot positioning in the retaining plate. Level the scale by adjusting the load cell feet through the access holes using a flathead screwdriver shown in the image below.
-
Page 8: Installation In-Ground
In-ground Installation The in-ground scale installation will require installation prior to concrete floor installation or the cutting of the existing concrete floor for the scale to be installed. This is the more labor-intensive of the two installations but is also the most desirable installation as the scale is flush with the floor allowing the scale to be walked on/around as if it is part of the floor. - Page 9 Now that the pit frame has been completed, place the scale base in the pit frame ensuring that there is roughly an equal amount of gap between the pit frame and scale base around its perimeter. Note: Ensure that the interconnect cable is pulled through the conduit at the same time the scale base is being installed to keep the cable from tangling up or having the scale rest on the cable after its installed.
-
Page 10: Indicator Termination, Calibration
Indicator Termination and Calibration It is the recommendation of B-TEK to have your scale calibrated and tested by a certified scale company. This should not only be done for the installation but periodically throughout the year as well. Having this done not only protects you and your patients but also gives you peace of mind knowing your scale is in good working order and working as it is intended to work. -
Page 11: Replacement Parts
Replacement Parts Part Number Description Scale 813-100092 Load Cell Both 864-000008 J-Box with Summing Board Both 911-000032 Load Cell Foot Both 200-84690 Handrail Assy. Both 913-1224 Replacement Ramp Above Ground 48”x48” 913-1223 Replacement Ramp Above Ground 36”x36” 861-000004 Interconnect Cable Both... -
Page 12: Btek Contact Information
B-TEK Scales, LLC 1510 Metric Ave. S.W. Canton, OH 44706 Tel: 330.471.8900 Fax: 330.471.8909 B-TEK.com...
