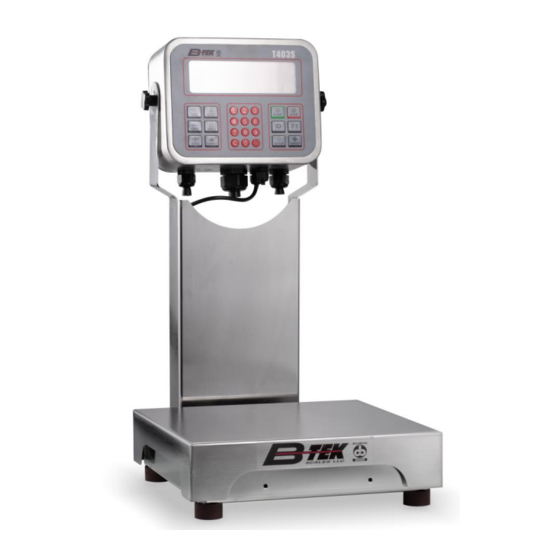

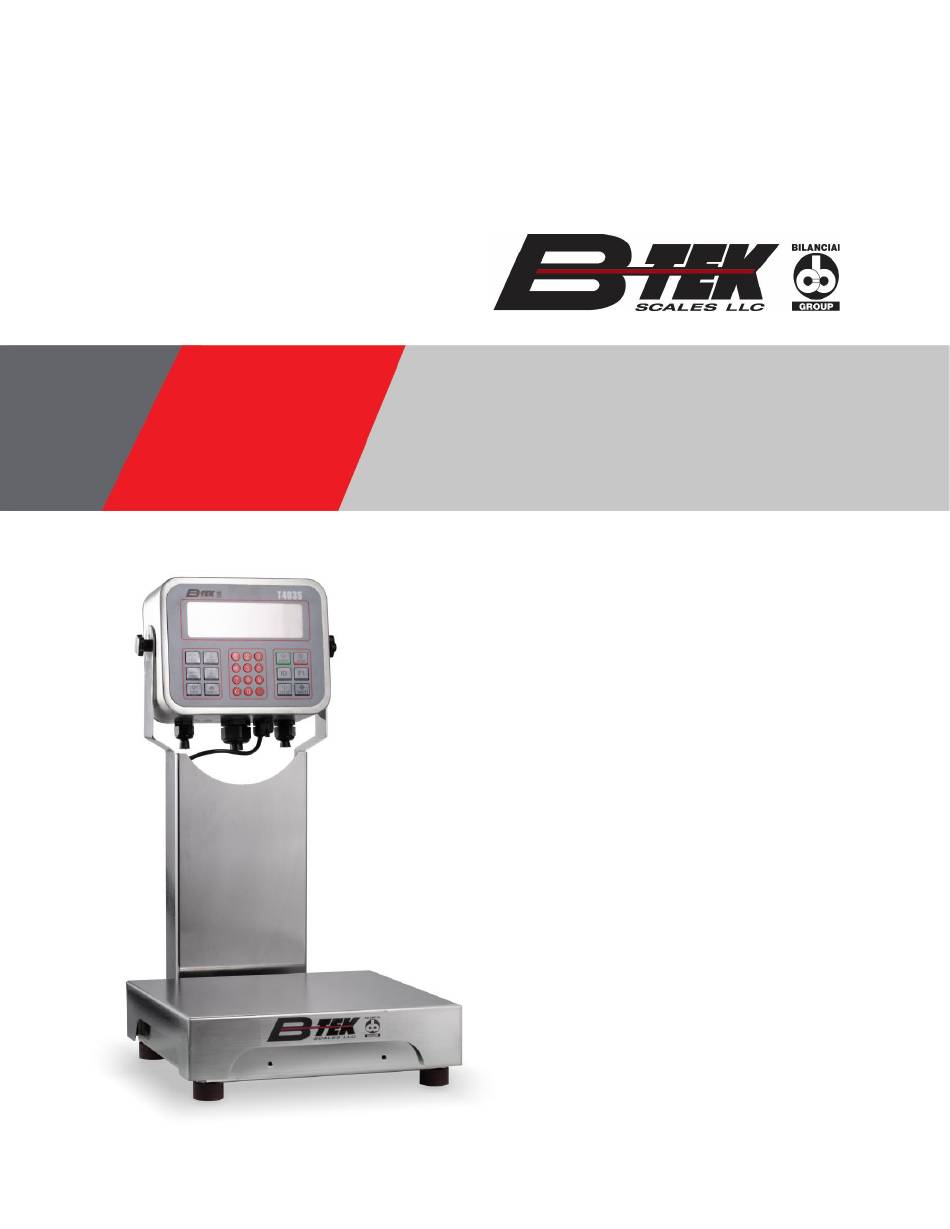

- Page 1 Instruction Manual quaShield Bench Scales 4/22/20 V2020.2.2...
-
Page 2: Table Of Contents
BTEK AquaShield Series Bench Scale Instruction Manual Table of Contents 1. Safety First……………………………………………………….…………………………. 3 2. Introduction……………………………………………………….………………………… 4 3. Specifications…………………………………………………….………………………… 5 4. AquaShield Bench Scale Assembly…………………………….…………………. 6, 7, 8 5. Indicator Installation…………………………………………….………………………. 8, 9 6. Scale Setup……………………………………………………………………………. 10,18 7. Scale Calibration……………………………………………………………………….19, 21 8. -
Page 3: Safety First
BTEK AquaShield Series Bench Scale Instruction Manual Safety First • Please call a BTEK authorized service provider for service or repairs. • Ensure that the area used for this equipment, is safe for this equipment. • Allow only qualified personnel to work on electric / electronic components. -
Page 4: Introduction
BTEK AquaShield Series Bench Scale Instruction Manual Introduction The information provided in this manual is a guide on installing the B-TEK, LLC. NB series single point bench scale. This document is intended as a guide only, and the actual installation should be performed by qualified personnel only. -
Page 5: Specifications
BTEK AquaShield Series Bench Scale Instruction Manual Specifications MODEL NB-1010 NB1212 NB1818 50lb/25kg, 50lb/25kg, 5lb/2.5kg, 20lb/10kg, Capacities 100lb/50kg, 100lb/50kg, 50lb/25kg 200lb/100kg 200lb/100kg .01lb/.005kg, .01lb/.005kg, .001lb/.0005kg, .005lb/.002kg, .02lb/.01kg, Readability .02lb/.01kg, .01lb/.005kg .05lb/.02kg .05lb/.02kg Max. Divisions 5000e Weighing Units lb, kg 10” x 10”, 12” x 12”, 18” x 18”... - Page 6 BTEK AquaShield Series Bench Scale Instruction Manual Assembly Unpacking Carefully remove the bench scale out of its box, ensure that it is not damaged, and all parts are included. • Bench scale with load cell and spider assembly. • Column (Optional) •...
-
Page 7: Aquashield Bench Scale Assembly
BTEK AquaShield Series Bench Scale Instruction Manual After fastening the column to the base install all the bench scale and column leveling feet as shown in the image below. Leveling Foot Lock Nut Leveling Foot Place the bench scale on a level surface and adjust the feet on the bench base only. - Page 8 BTEK AquaShield Series Bench Scale Instruction Manual Bullseye Level Adjusting Unlevel Level Overload Stop The overload stop is a set crew placed on the underside of the base and is designed so that the load cell bottoms out when more weight is applied than the scales capacity. To adjust this screw simply apply the weight that matches the capacity of the scale plus 5% and adjust the screw in until it hits the cell.
-
Page 9: Indicator Installation
BTEK AquaShield Series Bench Scale Instruction Manual Indicator Installation Mount the indicator on the column indicator mounting bracket. Tighten the wing nuts to secure the indicator to the column. Terminate the load cell wires to the load cell terminal located on the main board of the indicator. -
Page 10: Scale Setup
BTEK AquaShield Series Bench Scale Instruction Manual Setup Procedure BTEK T401S and T403S Indicators Scale Menu Referenced with BTEK T401S and 403S Series Manuals Scroll to page 26 for a complete manual download on these indicators. Press and hold the setup button until PASS is displayed, type in 3088 and press enter or zero button to enter the setup menu. - Page 11 BTEK AquaShield Series Bench Scale Instruction Manual - 11 -...
- Page 12 BTEK AquaShield Series Bench Scale Instruction Manual - 12 -...
- Page 13 BTEK AquaShield Series Bench Scale Instruction Manual - 13 -...
- Page 14 BTEK AquaShield Series Bench Scale Instruction Manual - 14 -...
- Page 15 BTEK AquaShield Series Bench Scale Instruction Manual - 15 -...
- Page 16 BTEK AquaShield Series Bench Scale Instruction Manual - 16 -...
- Page 17 BTEK AquaShield Series Bench Scale Instruction Manual - 17 -...
- Page 18 BTEK AquaShield Series Bench Scale Instruction Manual - 18 -...
-
Page 19: Scale Calibration
BTEK AquaShield Series Bench Scale Instruction Manual Calibration Procedure BTEK T401S and T403S Indicators Referenced with BTEK T401S and 403S Series Manuals Scroll to page 26 for a complete manual download on these indicators. Press and hold the setup button until PASS is displayed, type in 3088 and press enter or zero button to enter... - Page 20 BTEK AquaShield Series Bench Scale Instruction Manual - 20 -...
- Page 21 BTEK AquaShield Series Bench Scale Instruction Manual - 21 -...
-
Page 22: Load Cell Replacement
BTEK AquaShield Series Bench Scale Instruction Manual Load Cell Replacement Disconnect the load cell from the indicator. Remove SS platter from the spider assembly. Remove the four bolts that mount the spider assembly to the load cell. Remove the spider assembly and load cell spacer. Flip the bench scale on its side to access the bottom load cell bolts. -
Page 23: Stack Light Installation
BTEK AquaShield Series Bench Scale Instruction Manual AquaShield Stack Light Installation IP65 Light Stack IP69K Light Stack IP69K Light Light Part# 912-5590 Bracket Part# 100-161064-1 IP65 Light Light Part# 912-5591 Bracket Part# 100-161064 T401 and 403 Main Board I/O 1 Under... -
Page 24: Exploded View
BTEK AquaShield Series Bench Scale Instruction Manual 1. Platter 10. Column 2. Load Cell Mounting Kit(Bolts and Washers) 3. Spider Assembly 4. Spider Assy. Leveling Feet 5. Load Cell Spacer 6A. Flintec Load Cell6B. BTEK Load Cell 9. Column Mounting... -
Page 25: Replacement Part Numbers
BTEK AquaShield Series Bench Scale Instruction Manual Replacement Parts Parts List B-TEK Part # Parts Name 10”x10” SS Replacement Platter 100-160850 12”x12” SS Replacement Platter 100-160857 18”x18” SS Replacement Platter 100-121246A 100-99245- Flintec Load Cell Mounting Kit Bolts & Washers Complete... -
Page 26: T-Series Reference Manual Links
BTEK AquaShield Series Bench Scale Instruction Manual Click the desired manual below to download it. - 26 -... -
Page 27: Btek Contact Information
BTEK AquaShield Series Bench Scale Instruction Manual B-TEK Scales, LLC 1510 Metric Ave. S.W. Canton, OH 44706 Tel: 330.471.8900 Fax: 330.471.8909 www.B-TEK.com - 27 -...
