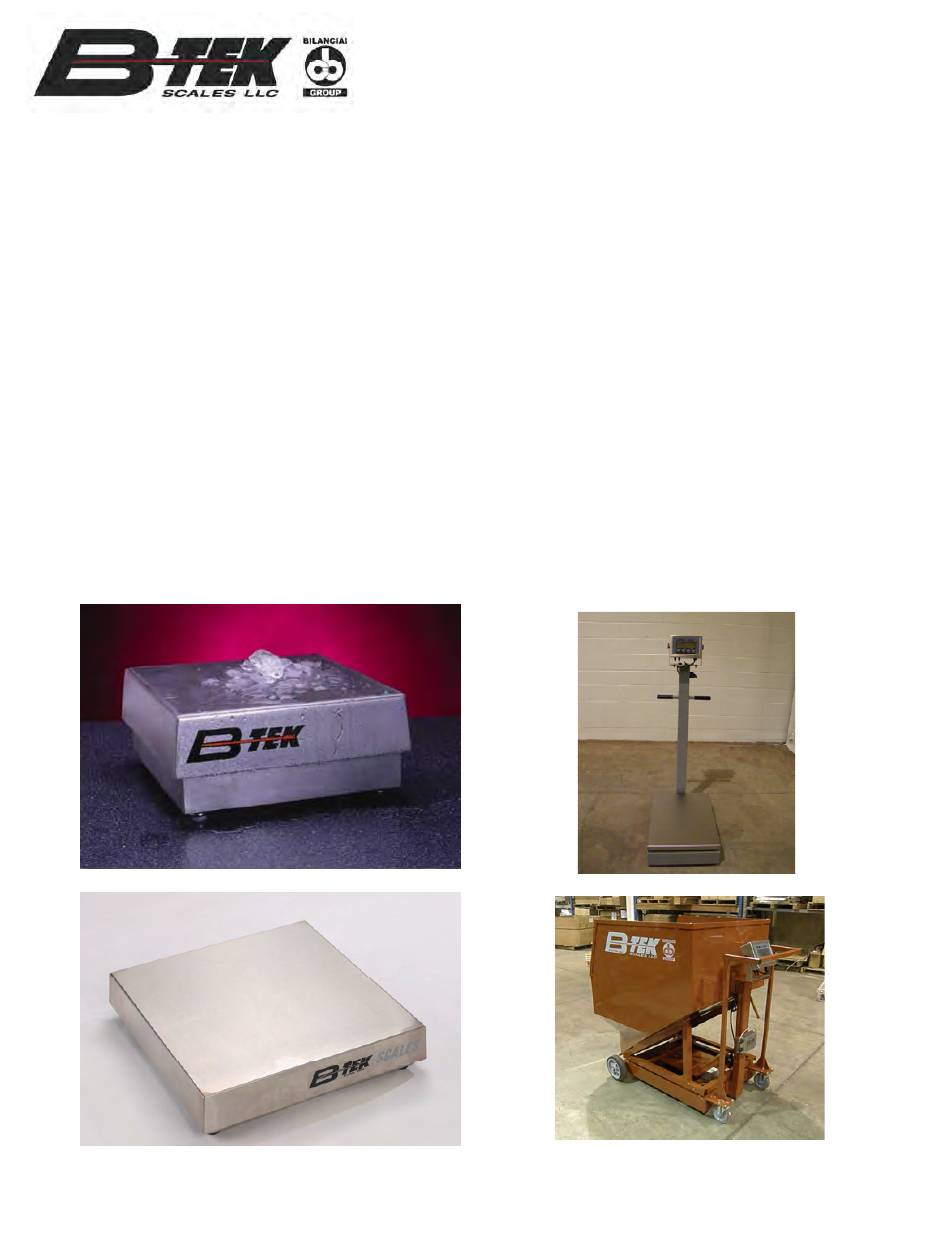

- Page 1 Industrial Bench and Portable Scale Includes Models: BT-BC carbon steel BT-BS stainless steel BW-CSPS portable scale BW-SSPS portable scale BW-CSPS-WB Weigh Buggy BW-SSPS-WB Weigh Buggy Instruction Manual 2014 SP Series Bench Scale Manual 11/2014...
-
Page 2: Table Of Contents
Contents Introduction Page 3 Installation Overview Page 8 Unpacking Page 9 Assembling the Scale Page 10 Connecting the Indicator Page 12 Trouble Shooting Page 13 Load Cell Replacement Page 14 Spare Parts Page 15... -
Page 3: Introduction
Do not begin installation if this is unknown. It is the customer’s responsibility to ensure that the scale equipment is operated within the manufacturer’s specifications. Any repairs must be performed by B-TEK Scales authorized service technicians. Failure to comply with this policy voids all implied and/or written warranties. - Page 4 Industrial Bench Scale Single Point Carbon Steel Base General Specifications: • Certificate of Conformance: 96-169A2 • Type: Single point bench scale • Scale Capacity: 5 - 500 lb. - NTEP Approved Capacities • Scale Height: 4” and 5-1/4” • Available Sizes: 8”...
- Page 5 Industrial Bench Scale Single Point Stainless Steel Base General Specifications: • Certificate of Conformance: 96-169A2 • Type: Single point bench scale • Scale Capacity: 5 - 500 lb. - NTEP Approved Capacities • Scale Height: 4” and 5-1/4” • Available Sizes: 8”...
- Page 6 Weigh-A-Round Carbon and Stainless Portable Scales General Specifications - Carbon Steel: • Certificate of Conformance: NON-NTEP • Type: Portable single point weighing platform • Scale Capacity: 100 - 1,500 lbs. • Platform Height: 6-9/16” nominal • Available Sizes: 24” x 18” & 30” x 24” - custom sizes upon request •...
- Page 7 Weigh-Buggy Carbon and Stainless Portable Hopper Scale 1,000 lb. capacity • 12cu/ft hopper capacity • Lever actuated slide gate • Front / Bottom material discharge • All steel construction • Two-part epoxy paint • Fixed front wheels • Swivel rear wheels •...
-
Page 8: Installation Overview
Installation Overview Prior to installation of the scale it is important to have the proper location and application for the particular scale being installed. The typical procedure for the installation of scales covered in this manual will consist of the following: Choosing a site •... -
Page 9: Unpacking
Unpacking Caution: The scale platform is heavy and can be awkward to handle. Exercise extreme care when lifting the scale platform to avoid personal bodily harm or damage to the equipment. Remove the packing material and inspect the scale for any visible damage occurring during shipment. -
Page 10: Assembling The Scale
Assembling the Scale Note that the four threaded overload stops in the corners of the base assembly have been adjusted to be tight against the underside of the spider tubes for shipping. Prior to use the overload stops must be adjusted to allow approximately a to 1/4” gap (dependent upon capacity) between the top of the bolt head and bottom of spider tubes. - Page 11 The Weigh-A-Round Portable Scale and the Weigh Buggy will be shipped fully Assembled, typically on a skid. The overload stops have been already adjusted tight against the spider assembly at the factory for shipping purposes. These will need adjusted to allow approximately a 1/4” gap (dependent upon capacity) between the top of the bolt head and bottom of spider tubes.
-
Page 12: Connecting The Indicator
Connecting the Indicator Depending on the type of scale ordered, the cable from the load cell to the weight indicator will most likely need to be connected. Scales that are ordered pre-calibrated or a typical Weigh Buggy scale will have the connection already made. Weigh Buggies are constructed with two load cells and require a junction box with summing board which is included with the scale. -
Page 13: Trouble Shooting
Trouble Shooting The indicator does not operate (no display): - Check power source / plug • - Fuse in indicator has blown - Connection cable is cut - Incorrect connection to scale The indicator display stays at zero: - Faulty indicator •... -
Page 14: Load Cell Replacement
Load Cell Replacement If a load cell should need replaced, verify the part number with the spare parts list in this manual. Replacement cells should be of the same capacity of the cell that is being replaced. Lift the scale’s cover platter exposing the spider assembly and load cell. Unbolt the spider from the load cell, and then the load cell from the base. -
Page 15: Spare Parts
For platform sizes or capacities not shown contact B-TEK Spare Parts Part Number Item Notes 814-100092 50kg single point load cell For 12” X 12” 50 LB. scale 814-100093 75kg single point load cell For 12” X 12” 100 LB. scale 814-100087 100kg single point load cell For 12”... - Page 16 Contact Information 1510 Metric Avenue SW Canton, OH 44706 Tel.: 800-266-8900 330-471-8900 M-F 8:00 AM—5:00 PM Fax: 330-471-8909 E-mail: sales@bscales.com...
